3.0 Pre-operational Procedures
3.1 Manual Hoist Adjustment for Trolley
3.1.1 For ½ - 5 Ton capacities, Harrington’s Model CB Series chain hoist can be Hook mounted to the TF2/TS2
Trolley using suspender “C” as shown in Figure 3-1 or Lug mounted to suspender “C” as shown in Figure 3-2

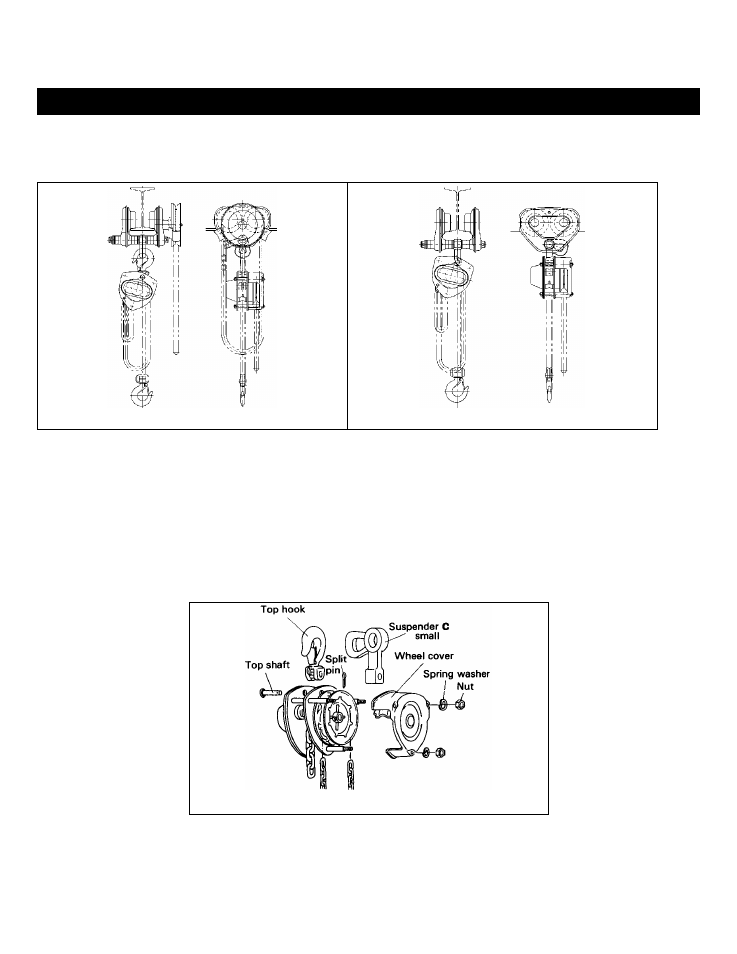

Figure 3-1 ½-5 Ton CB Hook Mount Figure 3-2 ½-5 Ton CB Lug Mount
3.1.2 Direct coupling lug mounted method for CB Series.
1) For ½ to 2 ½ Ton capacity Refer to Figure 3-3.
2) Remove the wheel cover nuts and lock washers, then remove wheel cover.
3) Straighten and remove the spit pin in the top shaft pin and remove the top shaft pin, remove the top hook.
4) Mount suspender “C” (small) in place of the top hook, insert the top shaft pin and re-insert the split pin.
5) Replace the wheel cover.
6) Attach Hoist to Trolley.
Figure 3-3 Installing suspender “C” ½ Ton to 2 ½ Ton capacity
7) For 3 to 5 Ton capacity Refer to Figure 3-4.
8) Remove the wheel cover nuts and lock washers, then remove wheel cover.
18
