20

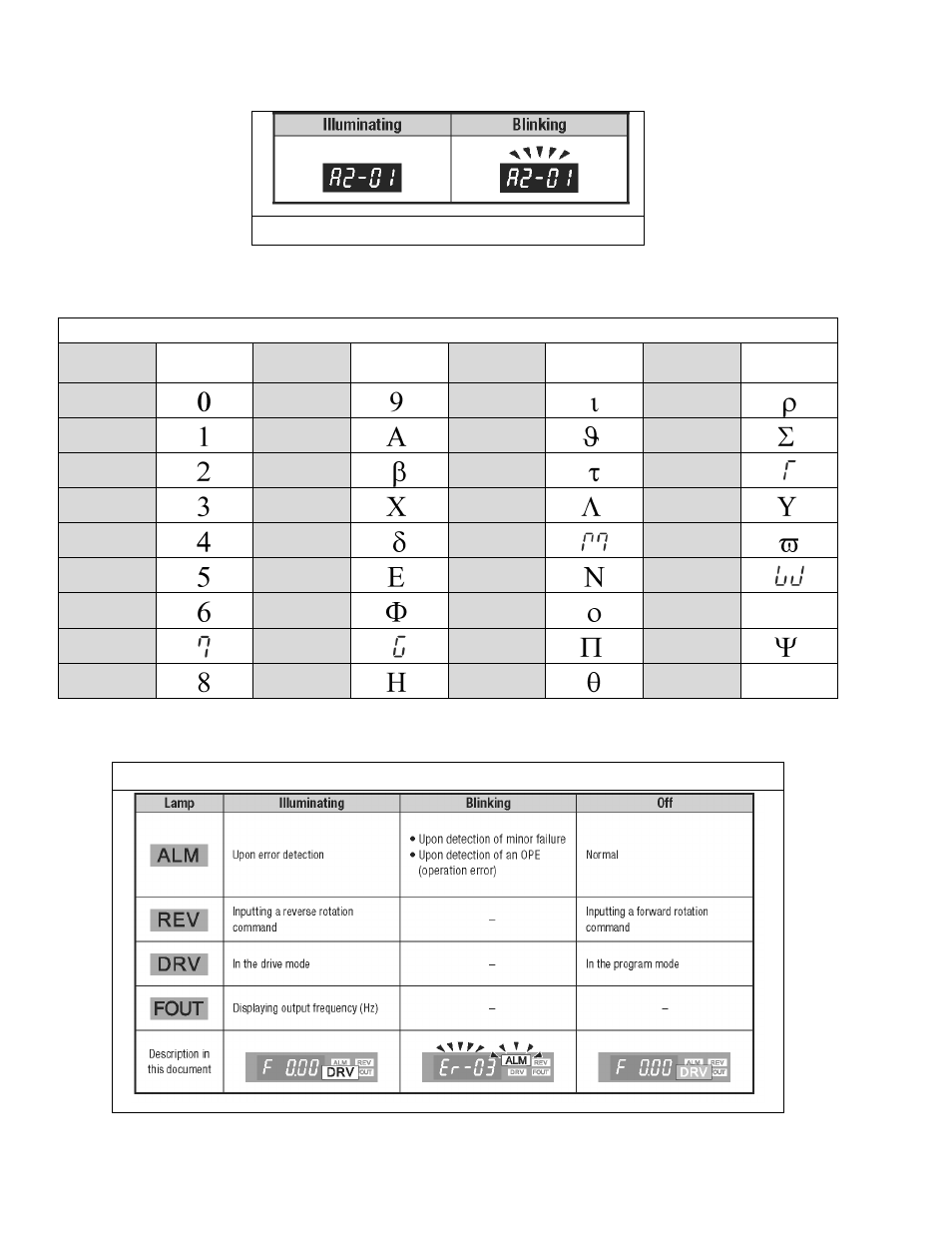

3.6.6 During operation the data display will exhibit illuminating or blinking data as shown in Figure 3-9.
Figure 3-9 Illuminating/Blinking Display
3.6.7 The digital display uses a seven segment character to form the specific charaters used in the display.
Table 3-3 shows the corresponding digital characters to its English eqivalent.
Table 3-3 Digital Character Key
Character
Digital
Display
Character
Digital
Display
Character
Digital
Display
Character
Digital
Display
0 9 I R
1 A J S
2 B K T
3 C L U
4 D M V
5 E N W
6 F O X No Display
7 G P Y
8 H Q Z No Display
3.6.8 The LED Lamp display provides hoist status. Table 3-4 shows some of the status displays.
Table 3-4 LED Lamp Display
