9.2 Additional 6 and 9 Ton Parts

MODEL L4 AND MODEL L5 CHAIN IS NOT INTERCHANGEABLE.
6 Ton 9 Ton

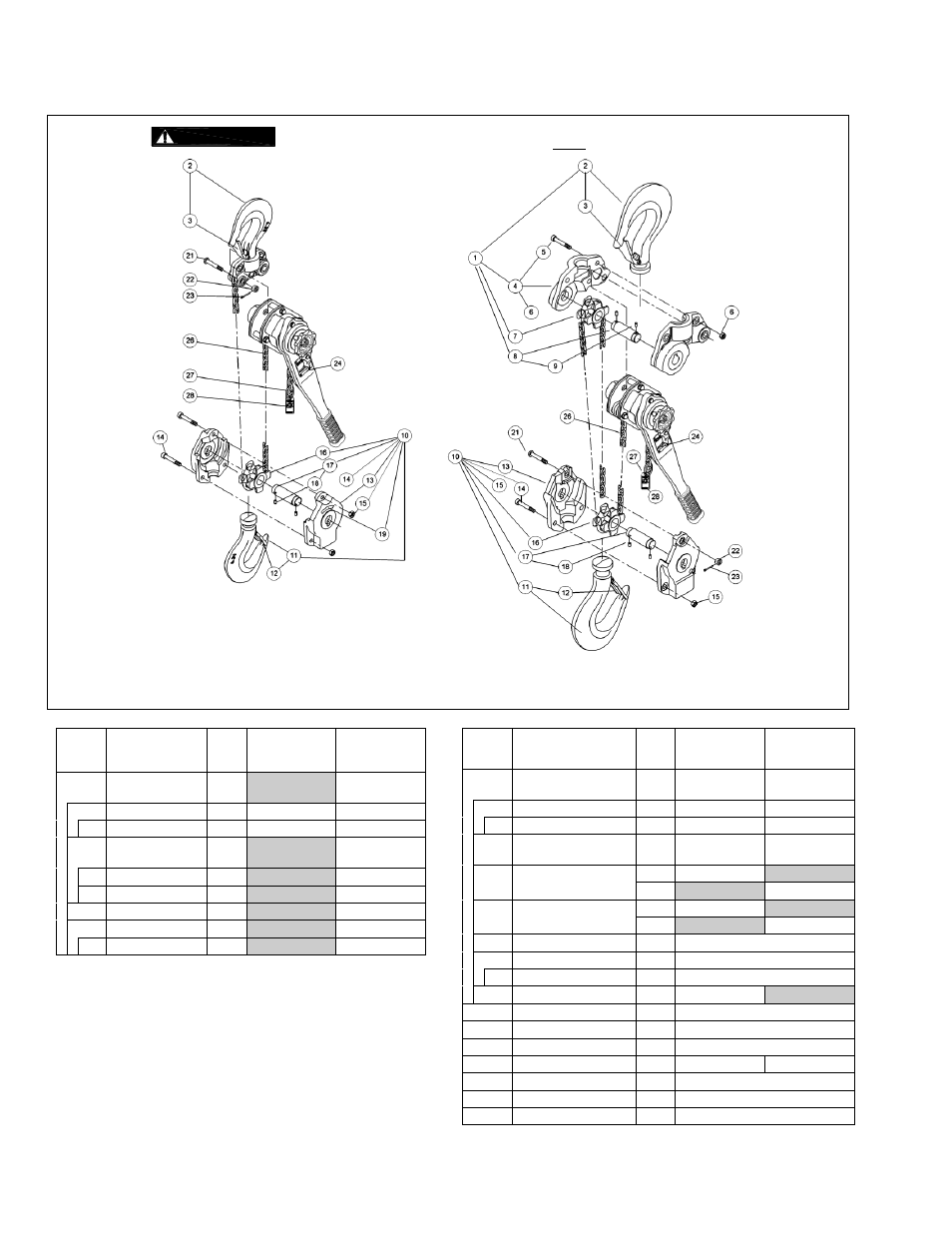

Figure 9-3 6 and 9 Ton Parts
Figure
No.
Name
Parts
Per
Hoist
6 Ton 9 Ton
1
Top Hook
Complete Set
1 L5BA0901001
2 Hook Assembly 1 L5BU0601001 L5BA0902001
3 Latch Assembly 1 L5BA0631071 L5BA0901071
4
Top Yoke
Assembly
1 L5BA0902011
5 Socket Bolt 3 90912116
6 Lever Nut 3 L4082090
7 Idle Sheave 1 L5BA0639051
8 Shaft Assembly 1 L4053060
9 Shaft Stopper Pin 2 L4083060
Figure
No.
Name
Parts
Per
Hoist
6 Ton 9 Ton
10
Bottom Hook Complete
Set
1 L5BU0601021 L5BA0901021
11 Hook Assembly 1 L5BU0602001 L5BA0902001
12 Latch Assembly 1 L5BA0631071 L5BA0901071
13
Bottom Yoke Assembly
(2 Halves)
1 L5BA0639031 L5BA0909031
14 Socket Bolt
3 9091296
2 90912116
15 Lever Nut
3 L4082060
2 L4082090
16 Idle Sheave 1 L5BA0639051
17 Shaft Assembly 1 L4053060
18 Shaft Stopper Pin 2 L4083060
19 Nameplate C 1 80173
20 Chain Pin 1 L4BH0609041
21 Slotted Nut 1 M2049020
22 Split Pin 1 9009412
23 Nameplate 1 L5BU0609800 L5BU0909800
24 Load Chain FT LCL5030NP
25 Chain Stopper Link 1 L5BA0329045
26 Warning Tag 1 WTAG9
