27

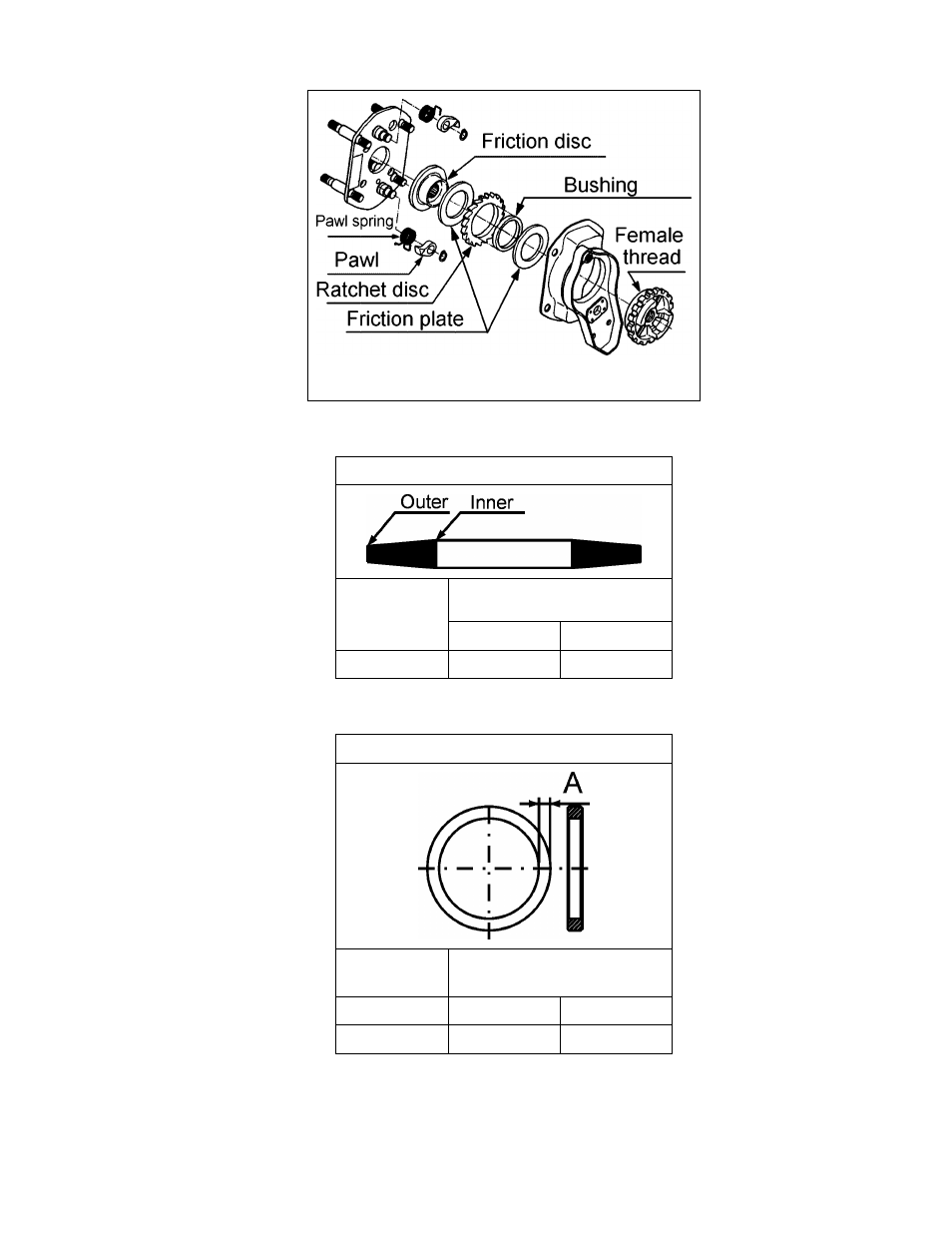

Figure 5-3 Braking System Components

Table 5-4 Friction Plate Wear Dimensions

Product Code

Thickness

inch (mm)

Standard

Discard

All

0.14 (3.5)

0.12 (3.0)

Table 5-5 Brake Bushing Wear Dimensions

Product Code

A Dimension

inch (mm)

Standard

Discard

All

0.16 (4.0)

0.12 (3.0)
