Harrington Hoists and Cranes LB Lever Hoist - (L5) User Manual
Page 29
29

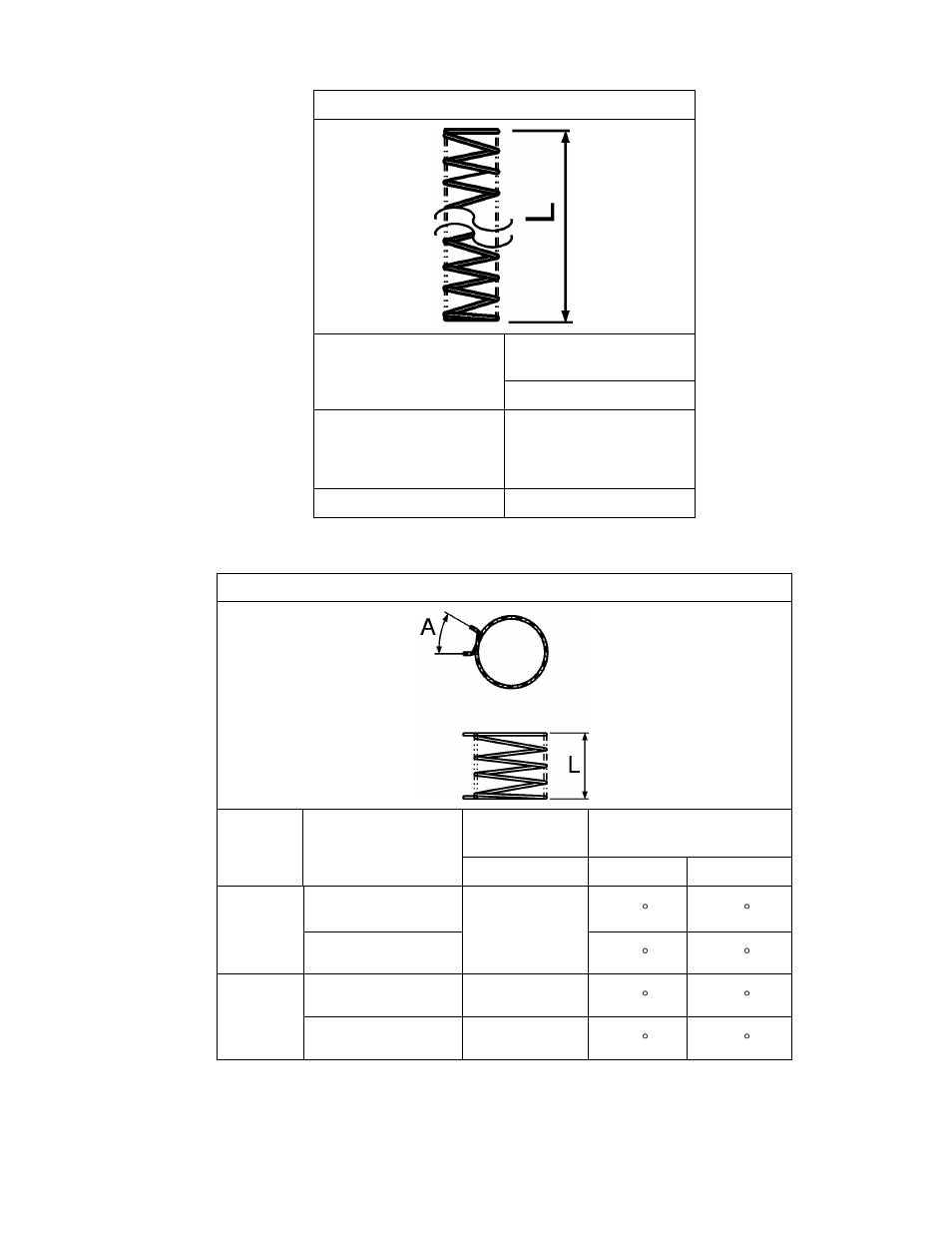

Table 5-7 Selector Pawl Spring Length Dimension
Product Code
L Dimension
inch (mm)
Standard
LB008, LB010, LB015,
LB020, LB028
1.46 (37)
LB030, LB060, LB090
1.65 (42)
Table 5-8 Lifting Brake Spring Dimensions
Product Code
L Dimension
Inches (mm)
A Dimension
(degrees)
Discard
Standard
Discard
Non Slip
Clutch
LB008, LB010,
LB015,LB020, LB028
1.18 (30)
30
45
LB030, LB060,
LB090
25
40
With Slip
Clutch
LB008, LB010,
LB015,LB020, LB028
1.18 (30)
30
45
LB030, LB060,
LB090
0.98 (25)
25
40
