7) Apply (G3) grease to the bearing part of (12) Frame B. Refer to Figure 6-7.
8) Install (12) Frame B onto (10) Frame A Stay Bolts. Make sure to align the top flat parts of the both
frames.

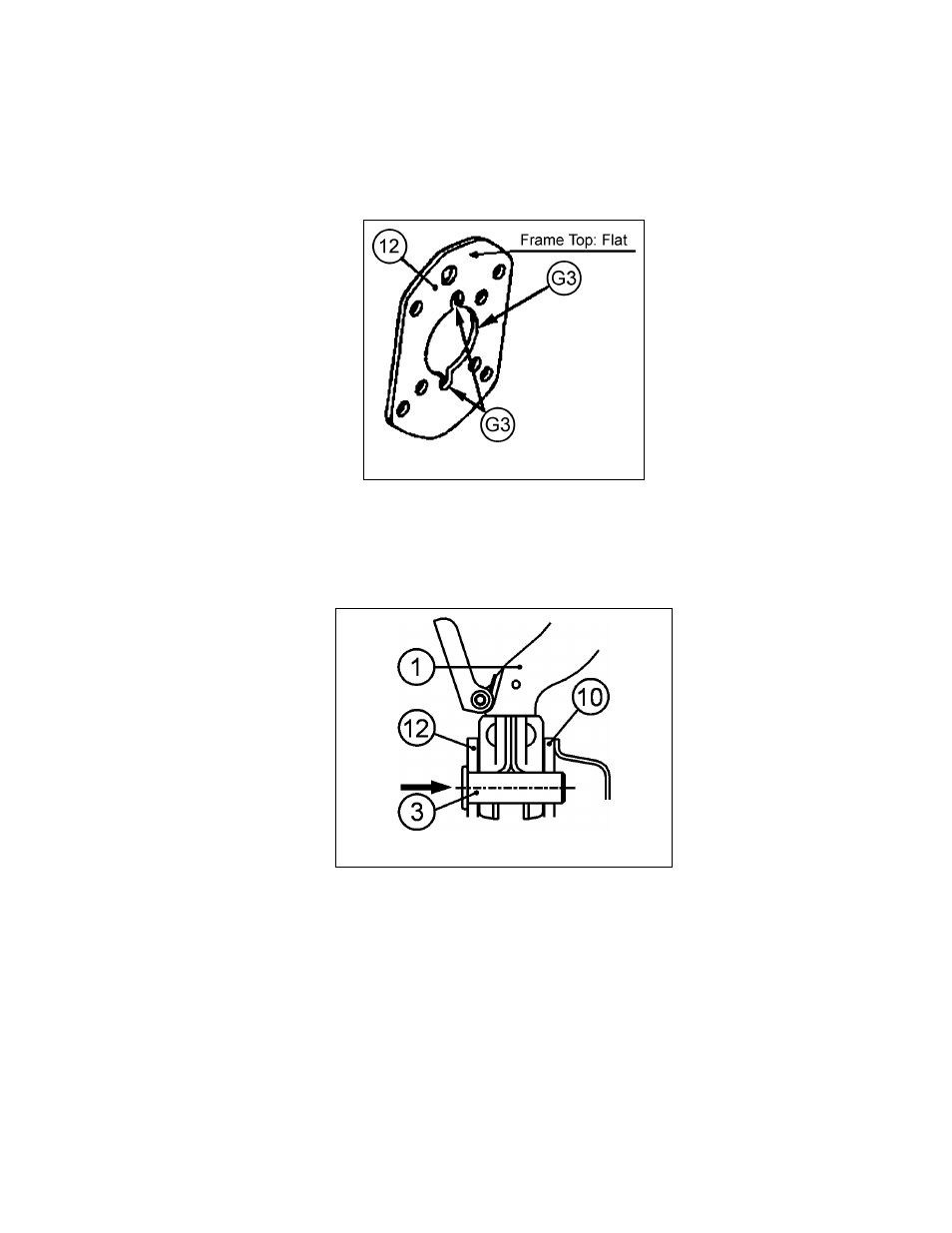

Figure 6-7 Frame B
6.4.5
Top Hook
Install the (1) Top hook set between (10) Frame A assembly and (12) Frame B then Insert (3) Top
pin from the side of (12) Frame B to fasten (1) Top hook set. Refer to Figure 6-8.
Figure 6-8 Top Hook Attachment
