31

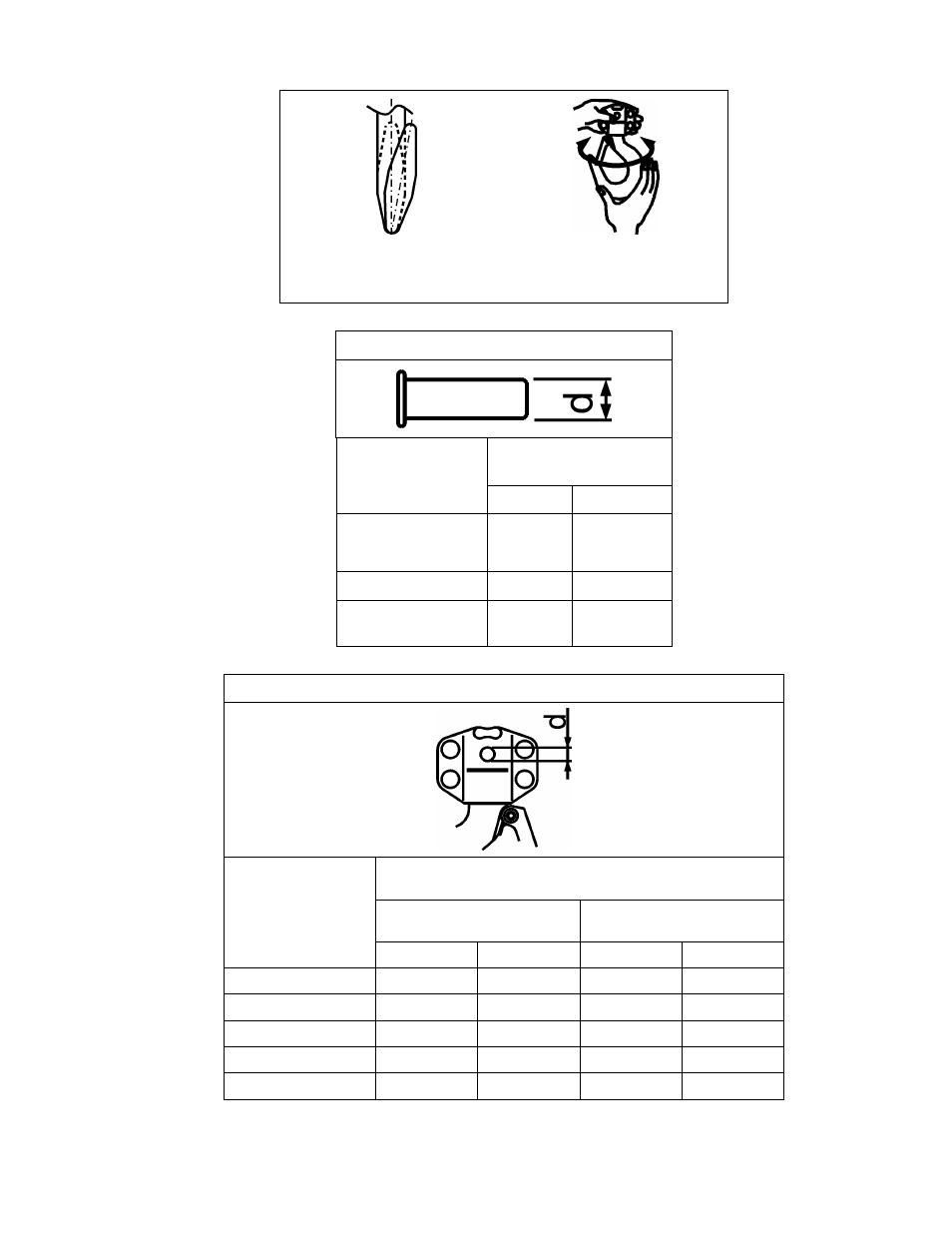

Twisted Hook Hook Swivel
Figure 5-5 Top and Bottom Hooks
Table 5-11 Body Top Pin Wear Dimensions
Product Code
d Dimension
inch (mm)
Standard Discard
LB008, LB010
LB015
0.47 (12) 0.45 (11.4)
LB020, LB028 0.55 (14) 0.52 (13.3)
LB030, LB060,
LB090
0.63 (16) 0.60 (15.2)
Table 5-12 Chain Pin Hole and Top Pin Hole Wear Dimensions
Product Code
Hole Diameter (d)
Chain Pin Hole
inch (mm)
Top Pin
inch (mm)
Standard Discard Standard Discard
LB008, LB010 0.28 (7.1) 0.30 (7.6) 0.48 (12.2) 0.50 (12.7)
LB015 0.35 (8.9) 0.37 (9.4) 0.48 (12.2) 0.50 12.7)
LB020, LB028 0.43 (11.0) 0.45 (11.5) 0.56 (14.2) 0.58 (14.7)
LB030 0.48 (12.3) 0.50 (12.8) 0.64 (16.2) 0.66 (16.7)
LB060, LB090 0.48 (12.3) 0.50 (12.8) 0.65 (16.4) 0.67 (16.9)
