22
Figure 79
Figure 80
Hardware Installation—G3 Blue & White, G4 PCI Graphics

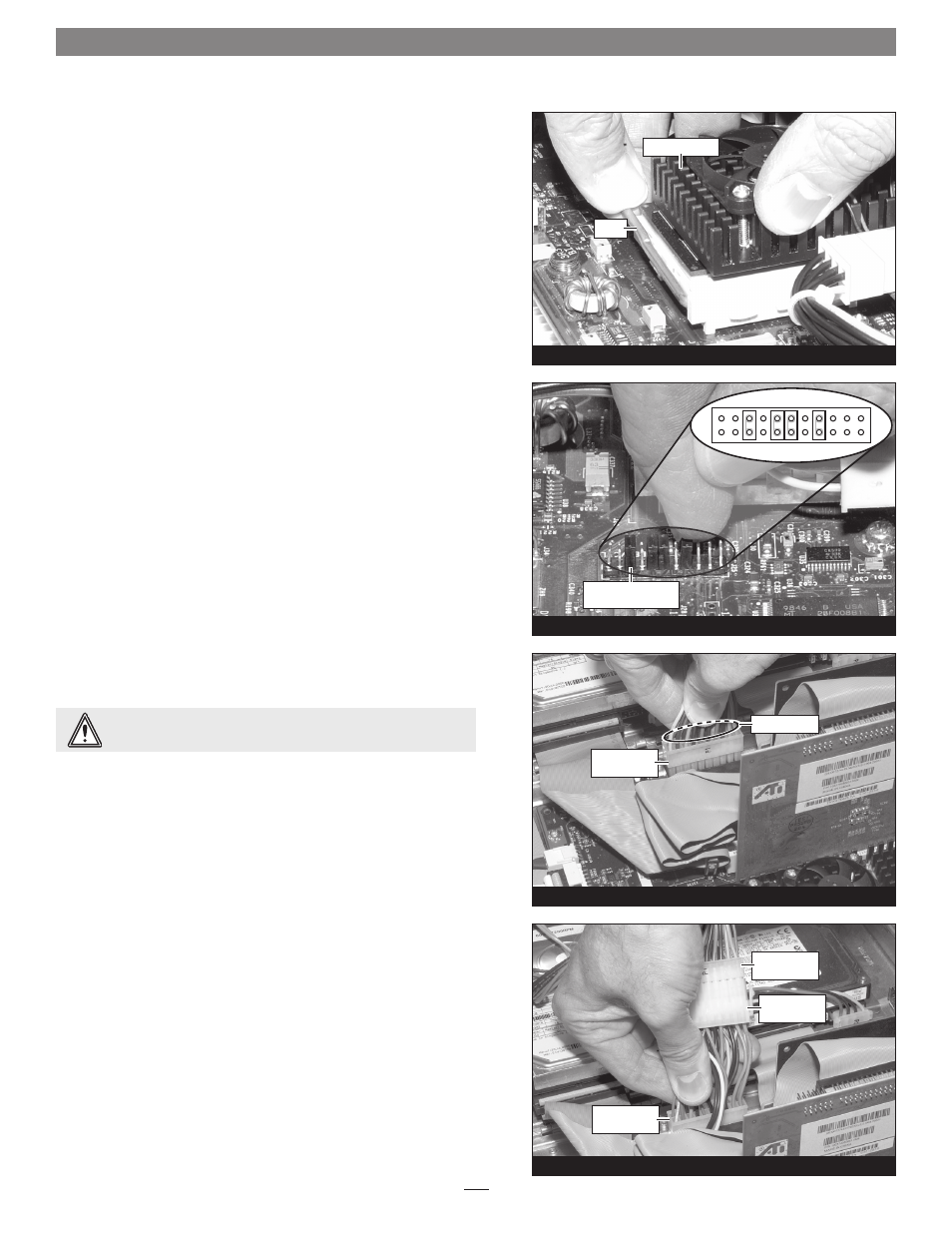

4. While applying moderate pressure on top of the Encore/ZIF
card’s heat sink above the ZIF socket, secure the card in place by
pressing down on the ZIF socket lever until it latches under the
socket’s side tab
(Figure 77).
Install Jumper Blocks
Install the four small jumper blocks included with the Encore/ZIF
card in the positions shown
(Figure 78); verify the jumper blocks
are installed onto the pins, not between them.
Install Power Adapter Cable Between Computer and
Encore/ZIF Card
1. Locate the logic board power cable plugged in next to the PCI
slots (Figure 79). Unplug the connector by pulling it straight up
while squeezing its locking tab.
2. Plug in the provided power adapter cable between the connector
on the logic board and the logic board power cable (Figure 80);
verify that all the connectors are plugged in securely.
WARNING: When disconnecting cables from the logic board,
do not pull on the wires; always pull on the connectors.
power cable
connector
power cable
power cable
connector
adapter cable
connector
adapter cable
connector
Figure 77
Figure 78
Encore/ZIF card
lever
replacement jumper
blocks
jumper positions
