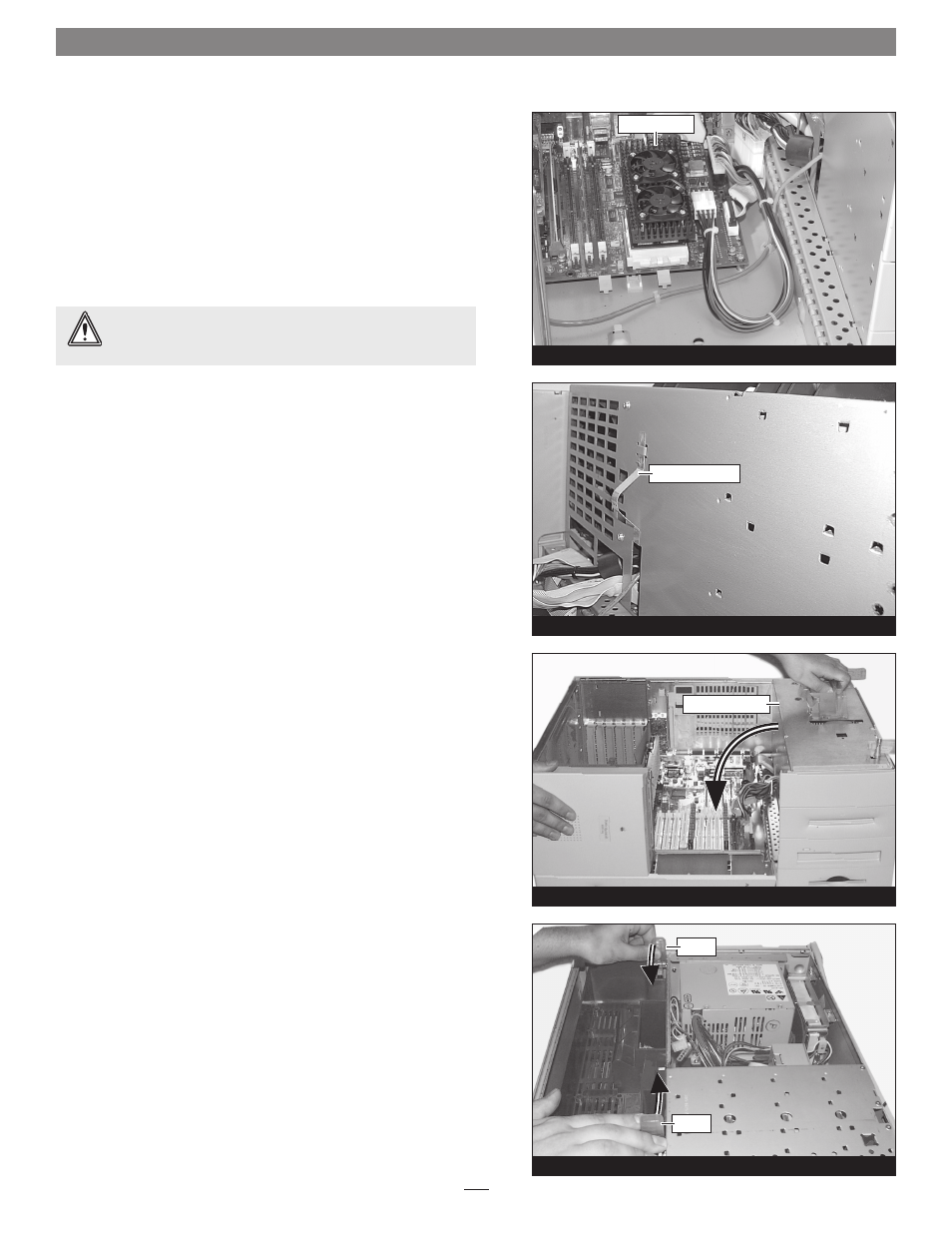

Hardware Installation—G3 Minitower/Server G3
Close Computer
1. Arrange the wires and cables inside the computer so that noth-
ing runs across the top of the Encore/ZIF card, and so that
nothing will be pinched when you close the internal assembly
(Figure 32).
2. Locate the spring clip on the internal assembly (Figure 33),
unhook and remove it from the assembly ; do not reinstall the
spring clip.
3. Rotate and carefully lower the internal assembly back into the
computer’s case (Figure 34), making sure that no wires or
cables are getting pinched.
4. Lock the internal assembly latches into their original positions
(Figure 35).
Encore/ZIF card
internal assembly
WARNING: You must remove the spring clip from the internal
assembly, otherwise the Encore/ZIF card will be damaged
when you close your computer.
remove spring clip
Figure 35
latch
latch
