Hardware Installation—G3 All-in-one
Figure 59
Figure 58
Figure 57

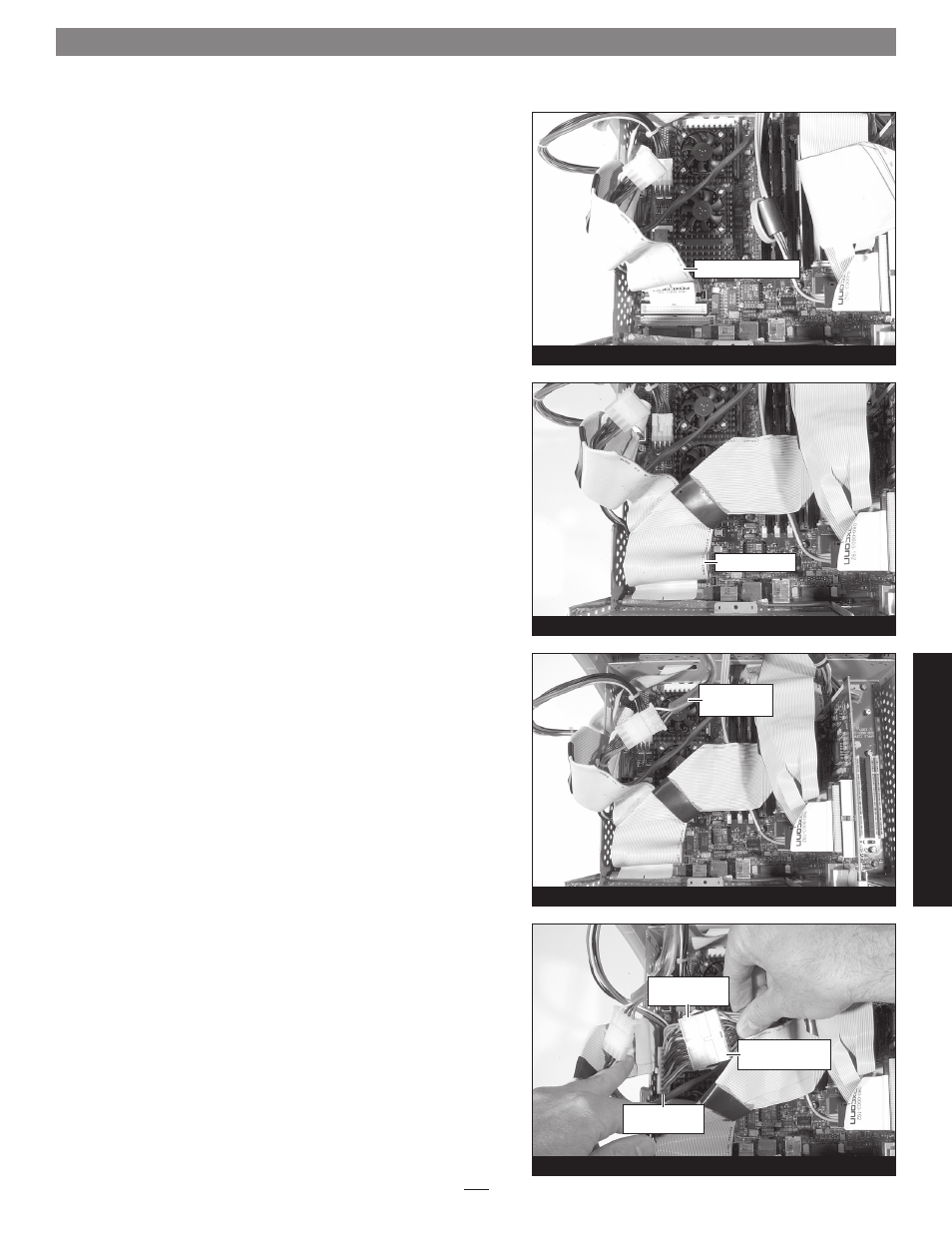

Reconnect Logic Board Cables and Install Power Adapter
Cable
Except for the power cable, the logic board cables should be recon-
nected in the reverse order that they were disconnected:
• Secondary SCSI cable
• Main SCSI cable
• Internal drives power cable
• Logic board power cable (with power adapter cable)
1. Reconnect the secondary SCSI cable (Figure 57); verify the con-
nector is plugged in securely.
2. Reconnect the main SCSI cable (Figure 58); verify the connec-
tors are plugged in securely.
3. Reconnect the internal drives power cable connectors
(Figure 59); verify the connectors are plugged in securely.
4. Plug in the provided power adapter cable between the connector
on the logic board and the logic board power cable (Figure 60);
verify that all the connectors are plugged in securely.
internal drives
power cable
main SCSI cable
secondary SCSI cable
Figure 60
logic board power
cable connector
power adapter
cable connector
power adapter
cable connector
