4

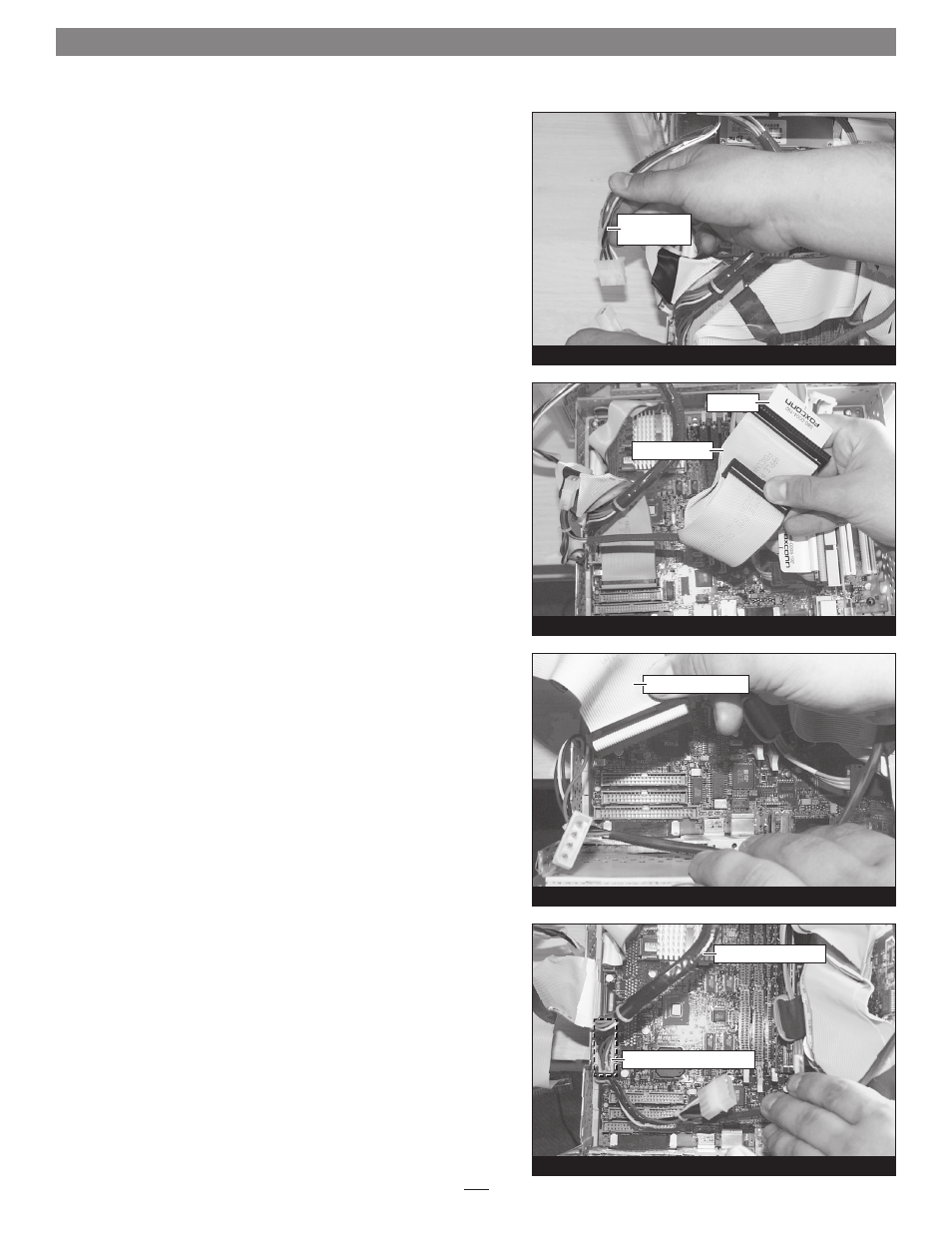

Hardware Installation—G3 All-in-one
Figure 48
Figure 47
Figure 46
Figure 45
1. Disconnect the internal drives power cable connectors
(Figure 45).
2. Disconnect the main SCSI cable connectors from the logic board
(Figure 46).
3. Disconnect the secondary SCSI cable from the logic board
(Figure 47).
4. Move the SCSI cables out of the way to expose the logic board
power connector (Figure 48).
internal drives
power cable
main SCSI cable
secondary SCSI cable
logic board power cable
pull tab
logic board power connector
