Hardware Installation—G3 All-in-one

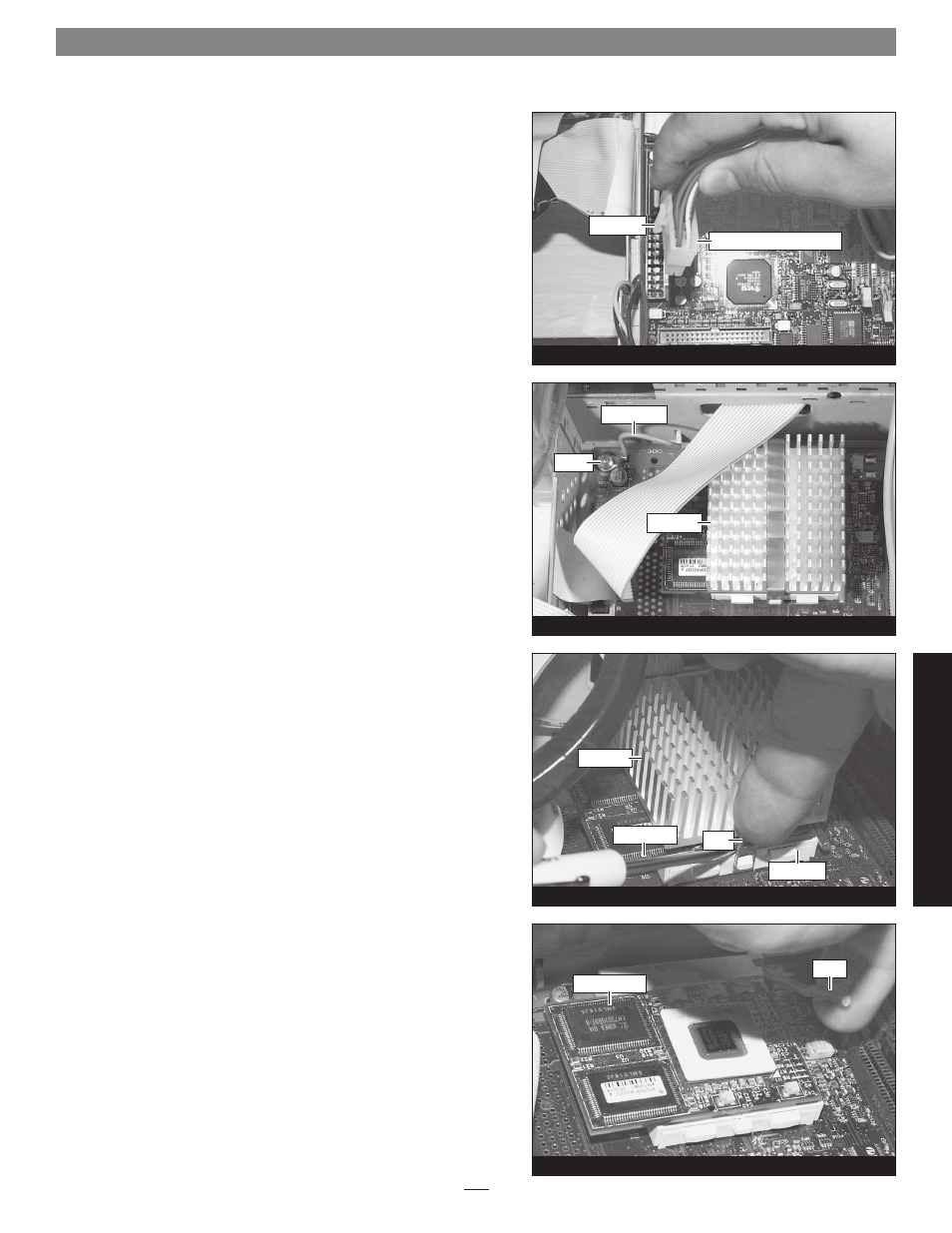

Figure 52
Figure 51
Figure 50
Figure 49
5. While squeezing its release tab, disconnect the logic board power
connector from the logic board (Figure 49).
Remove Heat Sink from Computer
1. Locate the screw securing the heat sink ground wire to the logic
board (Figure 50). Remove the screw, move the wire out of the
way, and then replace the screw; do not overtighten it.
2. Locate the clip securing the processor heat sink to the ZIF
socket (Figure 51). Carefully insert a small flat blade screwdriver
between the clip and the socket. While pressing down on the
top of the clip with your finger, gently twist the screwdriver until
you see the clip unhook from the ZIF socket tab. Unhook the clip
from the other side of the heat sink, remove the clip and heat
sink from the processor, and then set them aside.
Remove Processor Card
Push down and out on the ZIF socket lever (Figure 52) to disengage it
from the side tab on the socket. Once the lever is clear of the side tab,
rotate the lever up 90˚. Gently lift the existing processor card up and
out of the ZIF socket.
screw
ground wire
clip
ZIF socket
screwdriver
heat sink
processor card
heat sink
lever
logic board power connector
release tab
