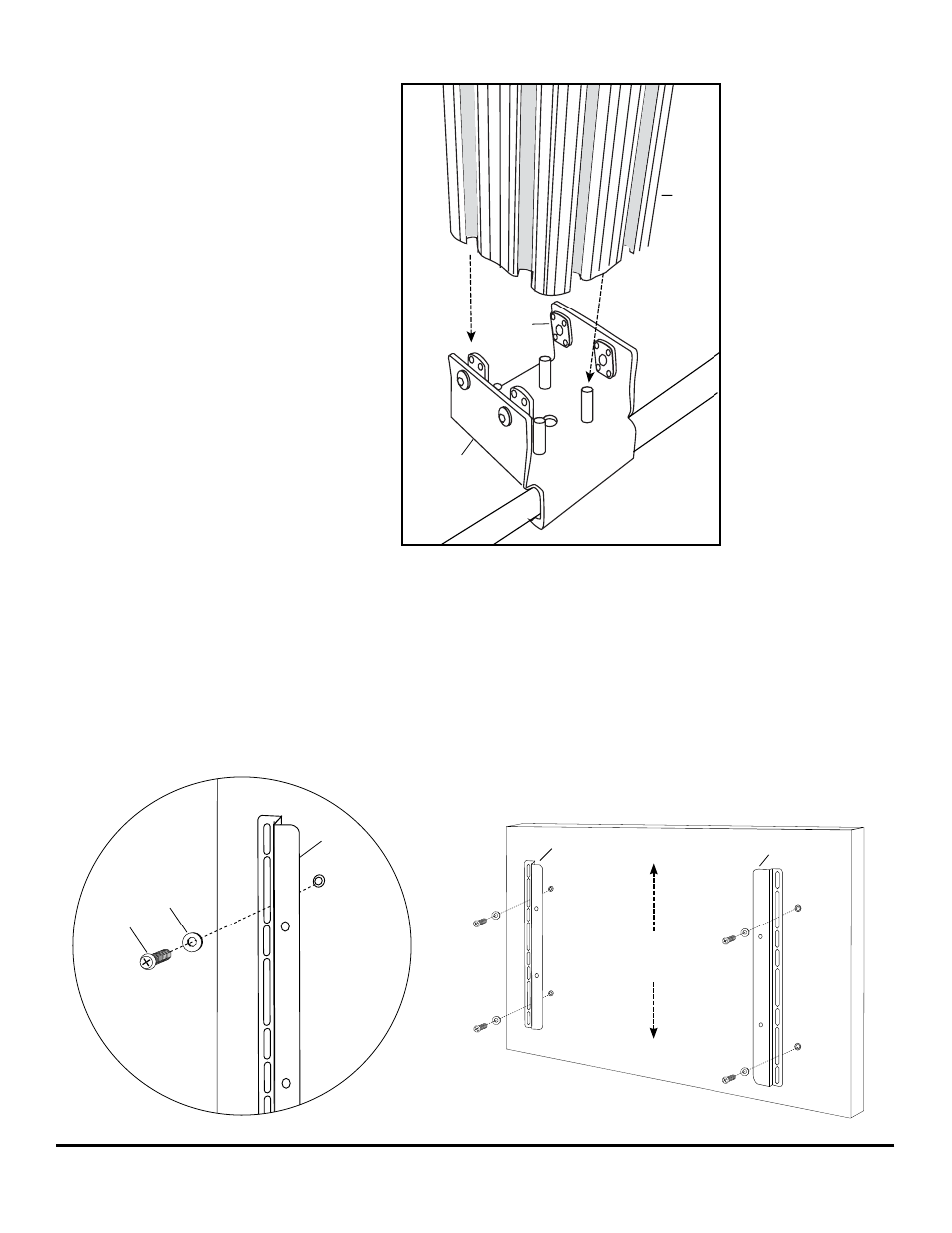

Mount Vertical Brackets to TV
Follow manufacturer’s recommendation for mounting (specified screw positions and fasteners).
Utilize the screws (I) and washers (J) provided
*
to secure the vertical brackets (A) to the TV. The vertical brackets (A) should
be centered on the television for best results.
*NOTE: Alternate fasteners provided for TV’s with recessed screw threads. Only use the longer screws (K) when the
standard screws and washers are not of sufficient length.
A
A
A
I
J
