Salamander Designs SA/DS10/B - Manual

SYNERGY DOUBLE-WIDTH SHELF - SA/DS

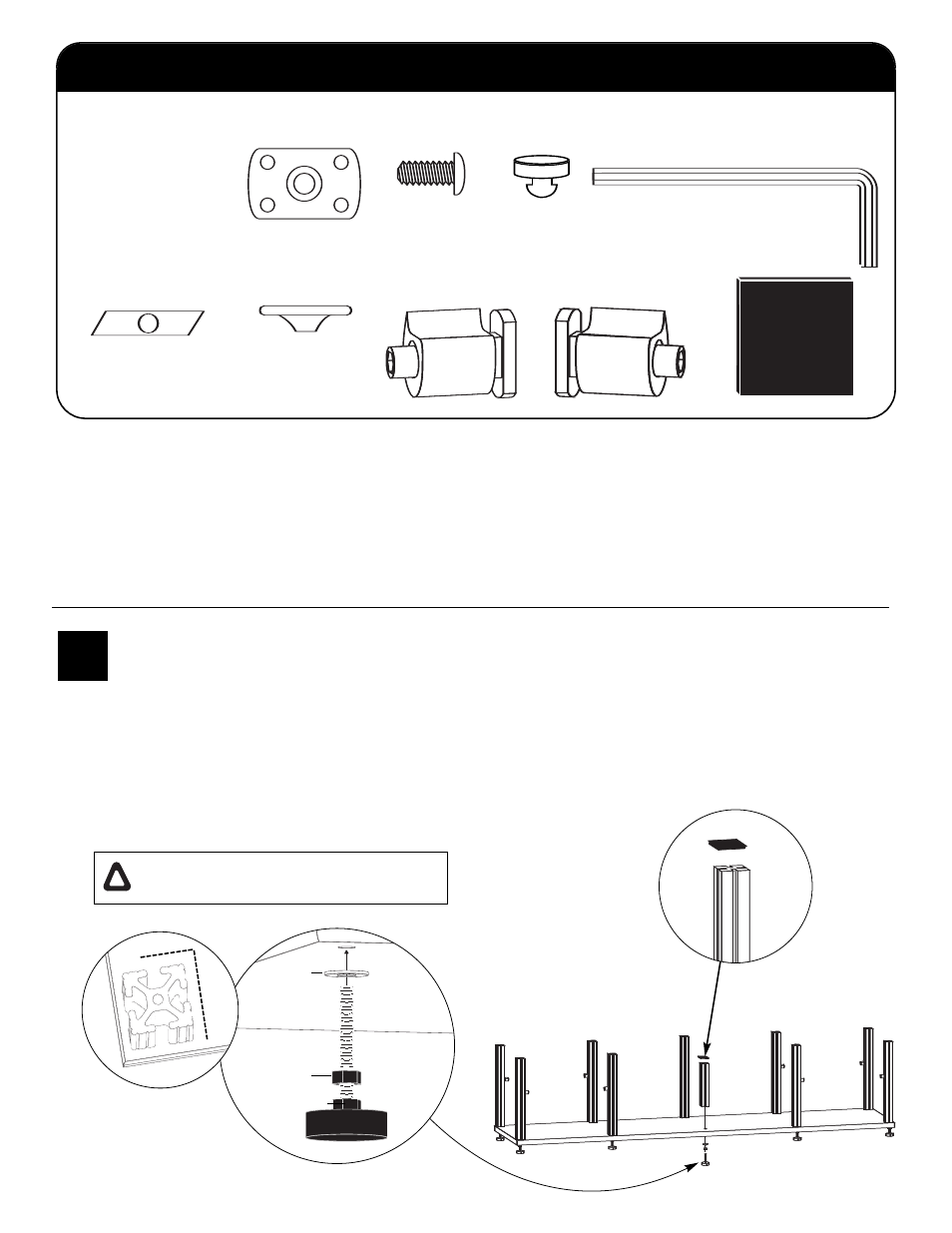

4x
(300-490)
Low Head Screw
4x
(300-560) - Flat Nut
Installing the Double-Width Shelf to Assembled Units
Without Removing Top:
Remove center connector bolt and loosen all other top bolts.
Unscrew the foot below the center post and CAREFULLY
remove the post.
Use the Drop-In Nuts in place of the Flat-Nuts in step 2.
Removing Top (Recommended):
Remove top connector bolts and set aside for step 5.
4x
1x
(300-565)
Drop In Nuts
Hardware Bag - PHK-510
1/8” Hex Key (400-070)
Parts
1 - Center Post
1 - Double-Width Shelf
2 - Shelf Brackets
2x
(301-280)
Plastic Cap Plug
4x
(300-610)
Shelf Tabs
1x
(300-265)
Post End Cap
1
A
.
Connect Post
Install short post front and center. Square the
post to the bottom shelf and screw foot with
metal washer through to the extruded post.
Hand tighten fully and use wrench to tighten
nut onto underside of shelf.
B
.
Post Cover
Press post cover onto the center post to protect the center shelf.
Connect Post to Bottom Shelf
Leveler Foot
Hex Nut
Washer
1x (PHK-380)
Shelf Peg “A”
1x (PHK-370)
Shelf Peg “B”
WARNING:
Tighten by screwing the leveler foot NOT the post.
! !
90 O
©2005 Salamander Designs Ltd.. Doc# 500-950 / v6.05 / 1 of 2
