Salamander Designs CA/PCM User Manual
Chameleon power conditioner kit, Attach power conditioner, Install mounting bracket
Drop-in Nut
300-565
chameleon
power conditioner kit

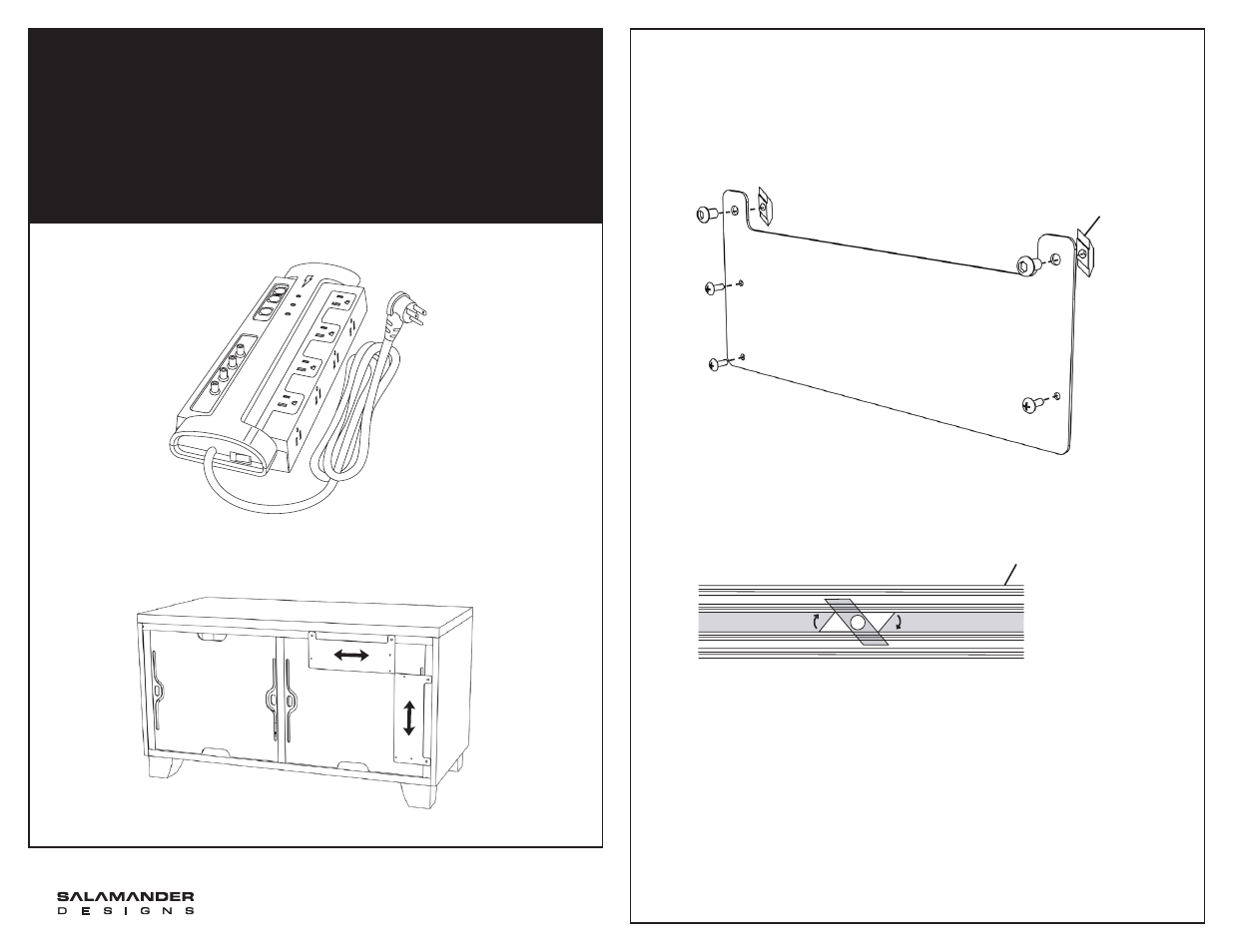

ASSEMBLY INSTRUCTIONS
2
Attach Power Conditioner
Locate “key holes” on backside of Power Conditioner and attach
to screws on bracket.
©2006 Salamander Designs Ltd. / Doc No. 501-610 v2.10
1
Install Mounting Bracket
Install hardware as shown. Leave the bottom 3 screws loose so
the threading does not come out the back side.
Your Power Conditioner can be installed horizontally or vertically on exterior posts.
Install bracket to posts on backside of cabinet.
Insert drop-in nuts in post and tighten.
Note: Drop-in Nut must make a 1/4 turn in post.
Post
