1. Press and hold SET button while pressing PROG/MAN button. Release
both buttons. The display will show the time clock setting:
2. Press either ∨ or ∧ button to adjust the current time forward or
backward. The time will change in one-minute increments each time
you press either button. The time will scroll in 10-minute increments
if you hold down either button. Note AM/PM indicator.
3. Press SET button. The day of the week will appear at the top of the
display.
4. Press either ∨ or ∧ button to change to the current day of the week
(MON, TUE, WED, THU, FRI, SAT, SUN).
10
PM
MON
PROGRAMMING
Set or Change Time, Day, Temp. Differential, and Residual Cooling
NOTE: During programming, the setting to be changed will flash on the display. If no key presses are made within 45 seconds,
the display will revert to the main display. Press PROG/MAN button at any time during programming to return to the main
display.
SET
PROG/MAN
SET
PROGRAMMING
27
OPERATION
CHANGING DIP SWITCH SETTINGS
Thermostat functions are determined by settings on two sets of dip switches: "SWITCH 1" and "SWITCH 2". These
dip switches are pre-set at installation. However, some users may want to change some of the dip switch settings
on SWITCH 2 to enable or change certain thermostat options.

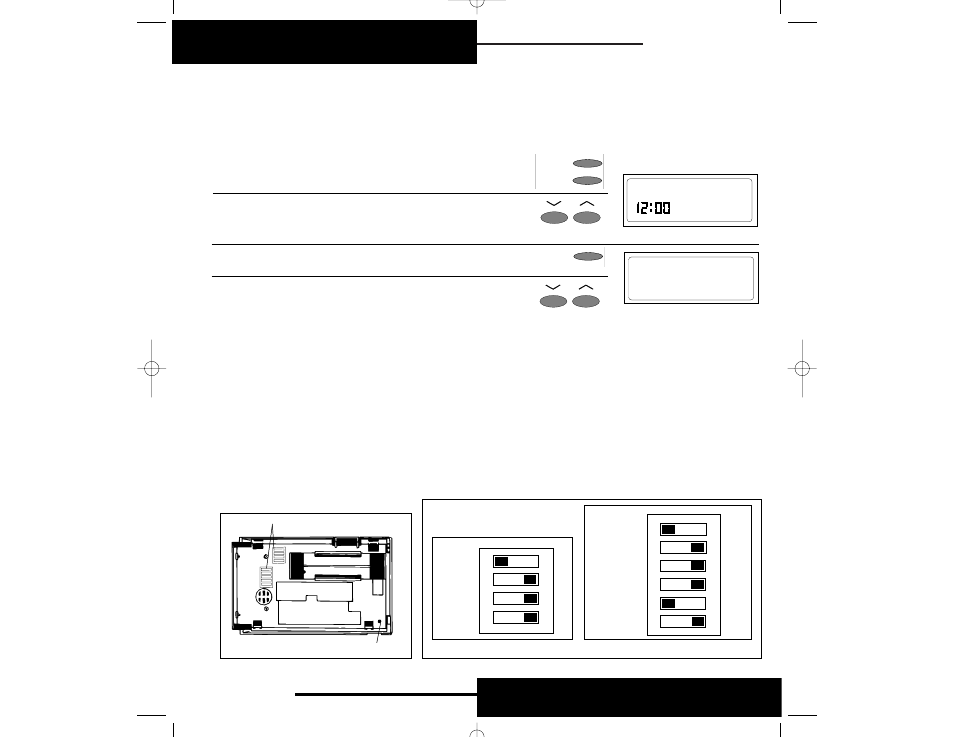

Figure 3 shows the location of the dip switches. Figure 4 shows a close-up of the dip switches. Dip switches marked
with an asterisk (*) should not be changed by the user. These are pre-set at time of installation by the installer and
must only be changed by a certified contractor familiar with heating and air conditioning systems. Change only the
dip switches necessary for options programming.
OFF LOCK ON
AUTO CHG OFF ON
DEAD BAND 5˚ 3˚
REC. EARLY NORM
HEAT: GAS/OIL ELEC
HEATPUMP STD
SWITCH 2
Figure 4
RESET
- + - +
- + - +
SWITCH 1
SWITCH 2
DIP SWITCHES
OFF
OFF
OFF
OFF
ON
ON
ON
ON
MAIN
REM 1
REM 2
REM 3
SWITCH 1
Figure 3
*
*
*
*
*
*
Default Settings Default Settings
