SETTING YOUR PROGRAM TIMES
Referring to your Schedule Planner, you now will enter the times for the program periods.

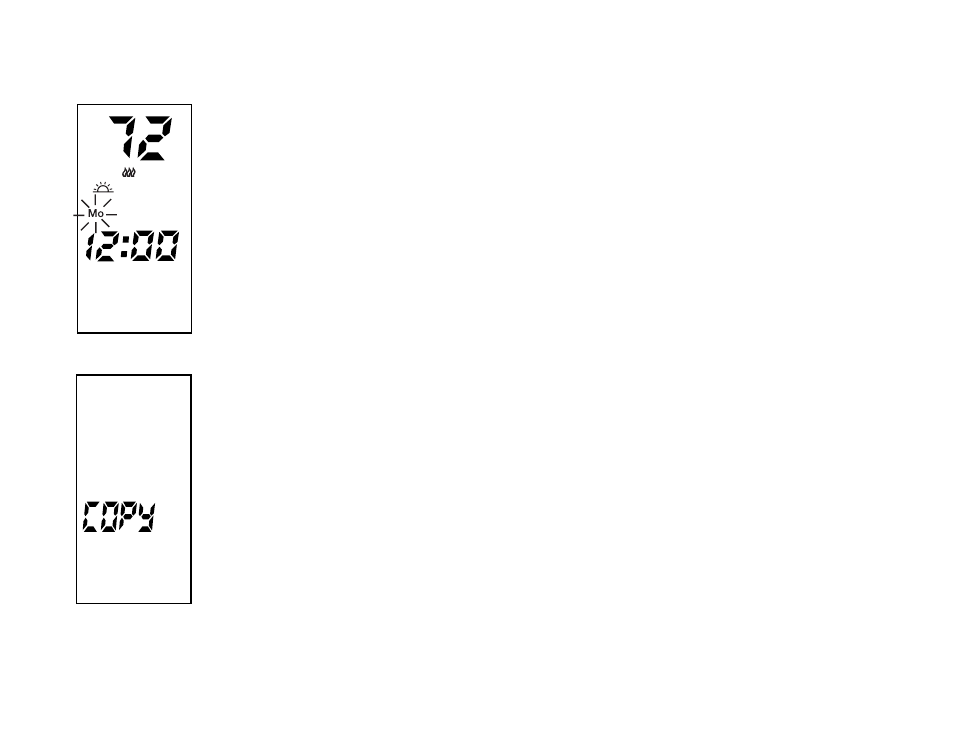

1. Press the PROGRAM button. The display will flash a day of the week.
2. Press the
s or t buttons to select the day you wish to program. (We suggest
starting with Monday.)
3. Press the PROGRAM button. The display will flash the hour of the first period
(Morning). (Note the AM/PM indicator.)
4. Press the s or t buttons to adjust the desired hour for the first program period.
5. Press the PROGRAM button again. The display will flash the minutes.
6. Press the
s or t buttons to adjust the desired minutes for the first period.
(Note the minutes are in increments of 10.)
7. Repeat Steps 3-6 for the Day, Evening and Night periods. Remember, if your
thermostat was set for two program periods, you will only have to repeat
Steps 3-6 for the Night period.
8. After entering the Night period, press the PROGRAM button. COPY will be
displayed. The copy function will allow program times to be copied to
sequential days. If you do not wish to copy the program times to another day
(or block of days), proceed to Step 11.
9. Press the s or t buttons to select the next individual day, or block of days, to
copy the program times to.
10. Press the PROGRAM button to copy the program times to the selected days
of the week.
11. Repeat Steps 1-10 for any remaining unprogrammed days of the week.
12. When finished, you can verify that all program periods are programmed cor-
rectly by repeatedly pressing the PROGRAM button. When COPY appears,
press the PROGRAM button to skip to the next day.
* Note: If a button is not pushed in 15 seconds, the thermostat will automatically
return to normal operation. You may go back into the programming portion
simply by repeatedly pressing the PROGRAM button until you get back to
where you left off.
