Turbodisk Applicator - Parts Identification

59

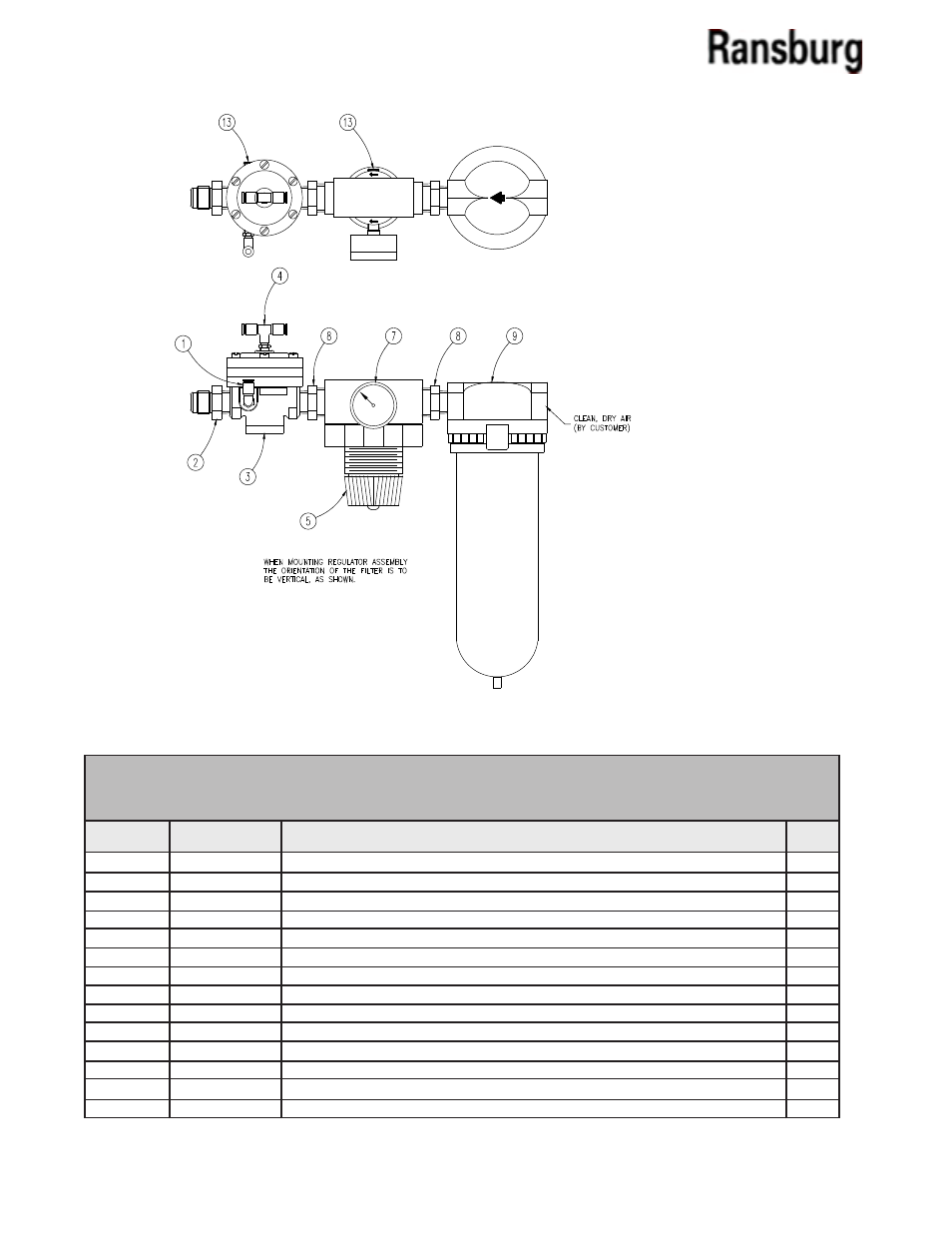

Figure 14: 78170-00 Drive Air Regulator Assembly

Apply 7969-10 Thread Sealer to all pipe threads prior to assembly.

Item #

78170-00 DRIVE AIR REGULATOR ASSEMBLY - PARTS LIST (Figure 14)

Part #

Description

Qty

1

SSP-6439

Elbow, 1/4" OD Tube X 1/4" NPT, Male Swivel

1

2

A11596-00

Fitting, 3/4" NPT X SAE 45

°, Male Connector

1

3

A11595-00

Regulator, 3/4" NPT Ported, Air Piloted

1

4

SSP-6819

Tube Fitting

1

5

LS0147

Regulator, 1" Ported, Manual Adjust Air

1

6

--

--

--

7

GA-316

Gauge, 0-160 PSIG, 1/4" NPT, Air

1

8

41-FP-1021

Nipple, 1" NPT X 3/4" NPT, Hex Reducing

2

9

HAF-503

Air Filter, 3/4" NPT

1

10

--

--

--

11

--

--

--

12

--

--

--

13

11021-23

Plug, 1/4" NPT Pipe

Ref.

14

--

--

--

AA-07-02.1
