Fig. 2. all possible display indications – General Tools and Instruments CIH20DL User Manual
Page 7

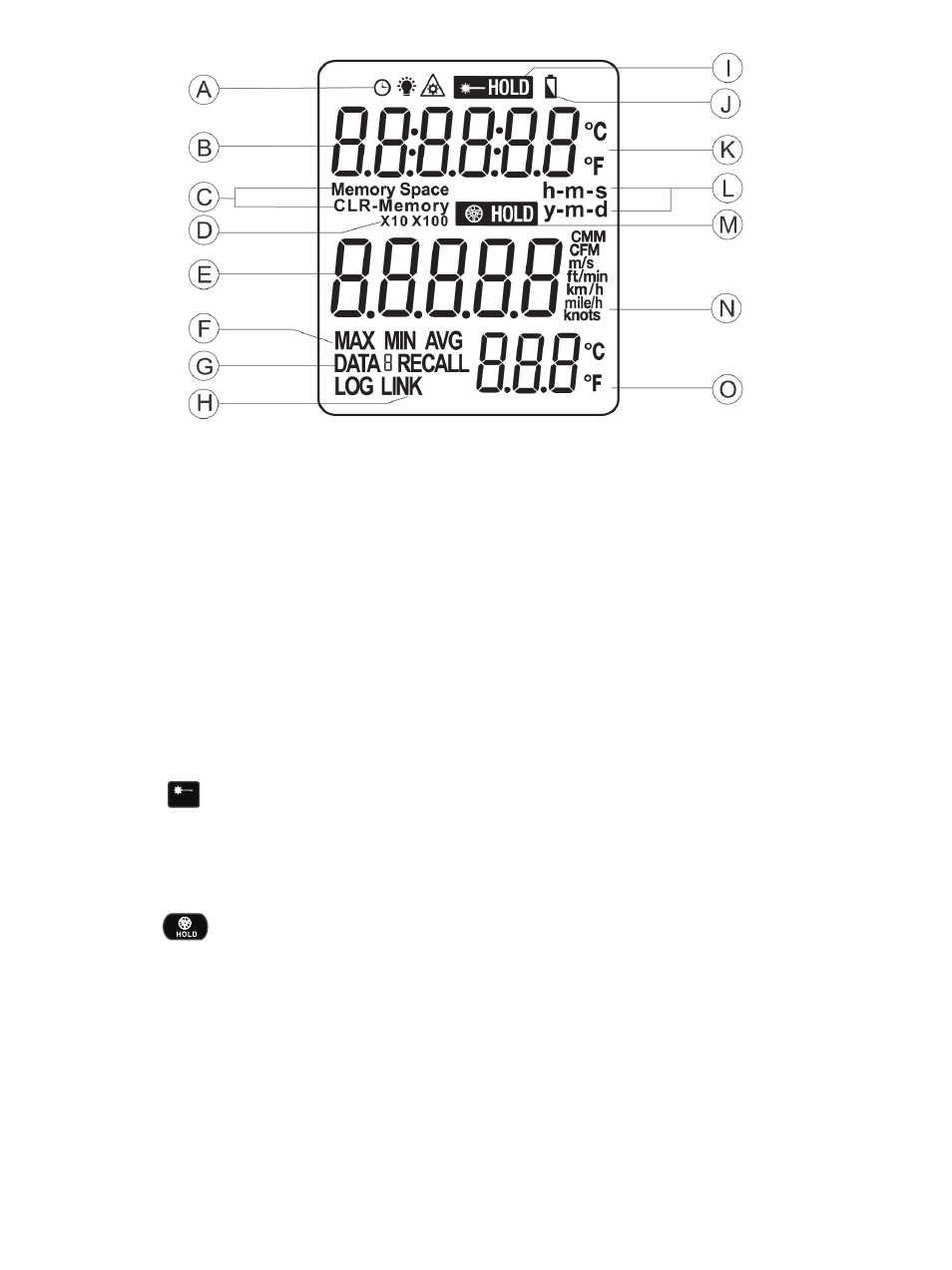

A Clock, backlight on and laser pointer enabled icons
B Secondary readout
C Memory Space/CLR (clear) and Memory indications
D X10 and X100 indications
E Primary readout
F MAX, MIN and AVG display indications
G DATA [#] RECALL and DATA LOG indications
H [PC] LINK indication
I
[IR Temperature] HOLD indication
J Battery charge indicator
K IR temperature measurement unit (°C or °F)
L Time and date field indications
M
[Anemometer] HOLD indication
N Air speed and airflow volume measurement units
O Tertiary readout
Temp
IR
Temp
IR
7
Fig. 2. All possible display indications
