General Tools and Instruments CIH20DL User Manual
Page 25
To eliminate measurement error, the CIH20DL must be moved close enough so the
motor is the only object in the target area of its IRT (see below figure). For a motor
with an area of 1 ft
2
and using an IRT with a D:S ratio of 8:1, the optimum
measurement distance would be 8 ft.
For best results, the targeted area (spot) should fall within the target’s boundaries

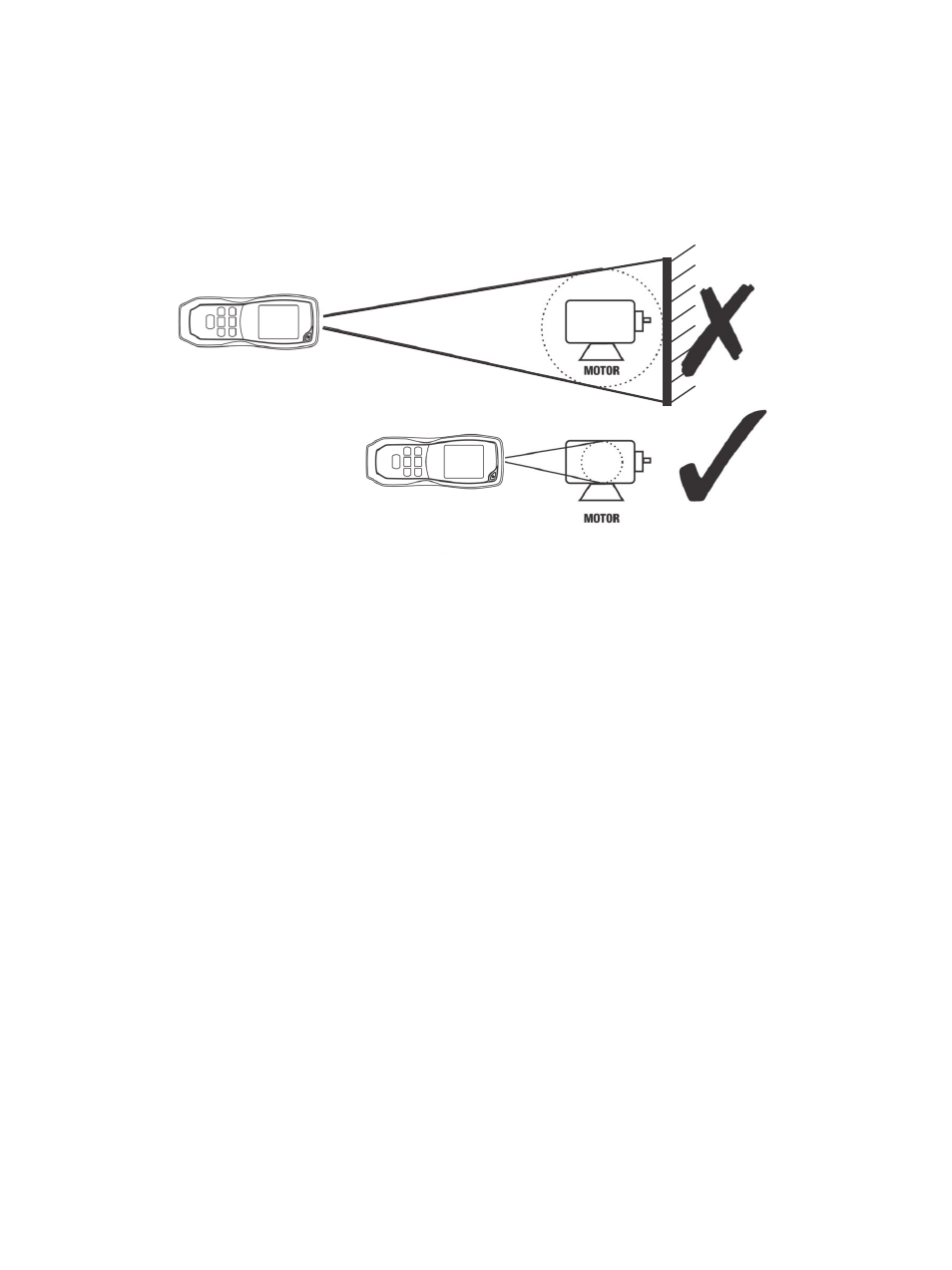

Measuring a motor’s temperature from the wrong (top) and right (bottom) distance
25
wall
CIH20DL-FINAL-122111_awb 12/21/11 9:58 AM Page 25
