10. You may or may not be prompted now to restart your computer to complete

installation of the Anemometer Application. If you are prompted to do so, click

Restart.

Whether or not you restart, note that an Anemometer Application icon has been

added to your desktop, start button, or both locations. To facilitate access to the

program, right-click on whichever icon has been added and pin it to both locations

and your taskbar. You can now eject the installation disc and store it with your other

important software.

Connecting the Meter to Your Computer
Before using the CIH20DL to log data, familiarize yourself with how the meter and the

software you have just installed work together.
To begin, connect the meter to your computer by plugging the mini B-type plug of the

included USB cable into the jack on the left side of the meter (Fig. 1, Callout 7). Next, insert

the A-type plug at the other end of the cable into an open USB port of your computer. Power

on the meter and wait 15 seconds for the hot wire sensor to heat up to operating

temperature.
The first time you connect the meter to your computer, the system tray at lower right will

pop-up two notifications: 1) “Installing Device Driver Software”, followed by “Prolific USB-to-

Serial COMM Port ((COM[X])) Device Driver Software Installed Successfully”. Depending on

which Windows OS you are running and which USB port you have chosen, the “X” in

“(COMX)” may be any number from 1 to 9.

Write down the number shown in the

notification. Knowing the number will speed up each subsequent connection of the meter

to your computer—as long as you use the same USB port each time.
The interface/data logging software is now ready to be used with the CIH20DL.

Viewing Real-Time Measurements

on the Dashboard
The software installations should have added an

“Anemometer AP” or “Anemometer Application” icon

to your Start button and/or desktop, and/or an “IR-A"

icon to the Quick Start (left) section of the taskbar at

the bottom of your computer screen.
Open the Anemometer AP program via the icon on the

Start button, desktop or Taskbar. Two overlaid screens

will appear (see Fig. 10).
The larger, bottom screen is called a dashhboard and

it serves the same purpose as the dashboard of a

vehicle: displaying all important measurements in one

place. The smaller, top screen will show a pulldown

menu of COM port selections at right, with a default

COM port selection of COM4.

15

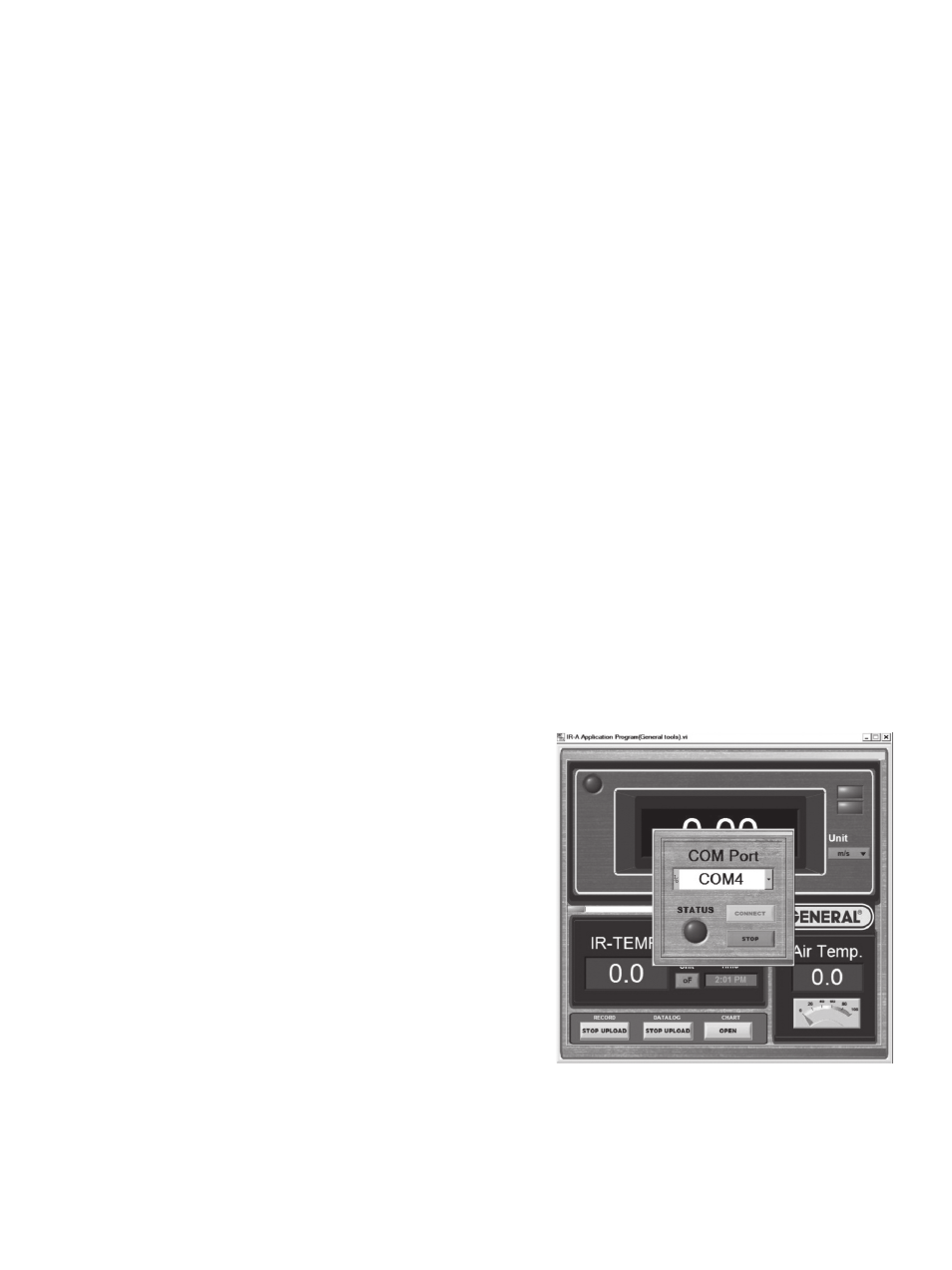

Fig. 10. The startup Anemometer

Application screen
