SECTION 4
VTG-IOM-2013-0815
MAINTENANCE
4-9
1 3/8”
Electrode
Ignition Pilot

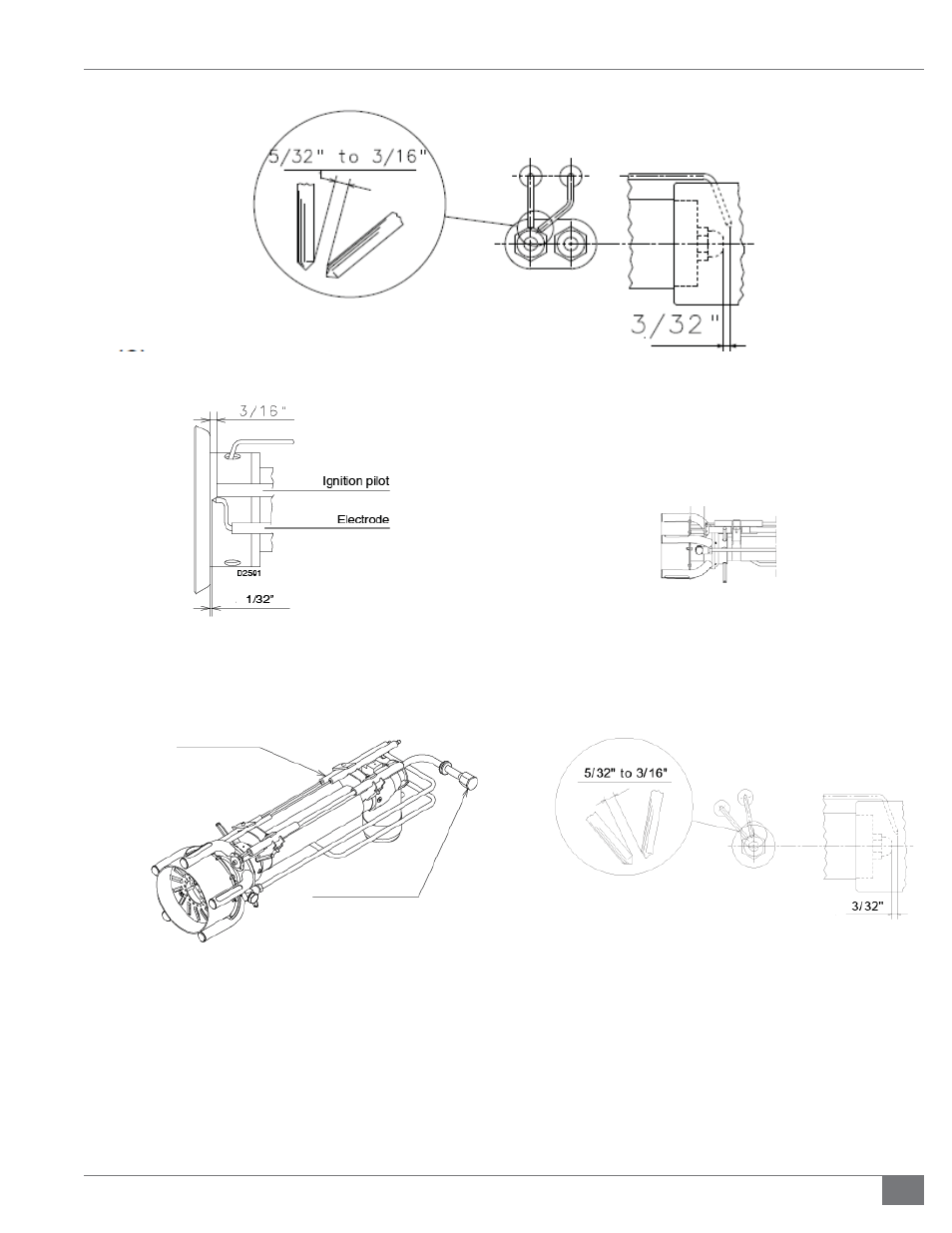

FIGURE 20 - RLS-160 BURNER ELECTRODE POSITION FOR OIL
OPERATION
1 3/8”
FIGURE 16 - RLS-100-130E BURNER ELECTRODE POSITION FOR OIL OPERATION
FIGURE 17 - RLS-100-130E BURNER ELECTRODE POSITION FOR GAS
OPERATION
FIGURE 18 - RLS-160 BURNER ELECTRODE AND IGNITION PILOT
LOCATIONS
FIGURE 19 - RLS-160 BURNER ELECTRODE POSITION FOR GAS
OPERATION
1 3/8”
