Fulton Vantage (VTG) Fully Condensing Hydronic Boiler - Manual (Page 30)

© The Fulton Companies 2013
INSTALLATION
VTG-IOM-2013-0815
SECTION 2
2-24

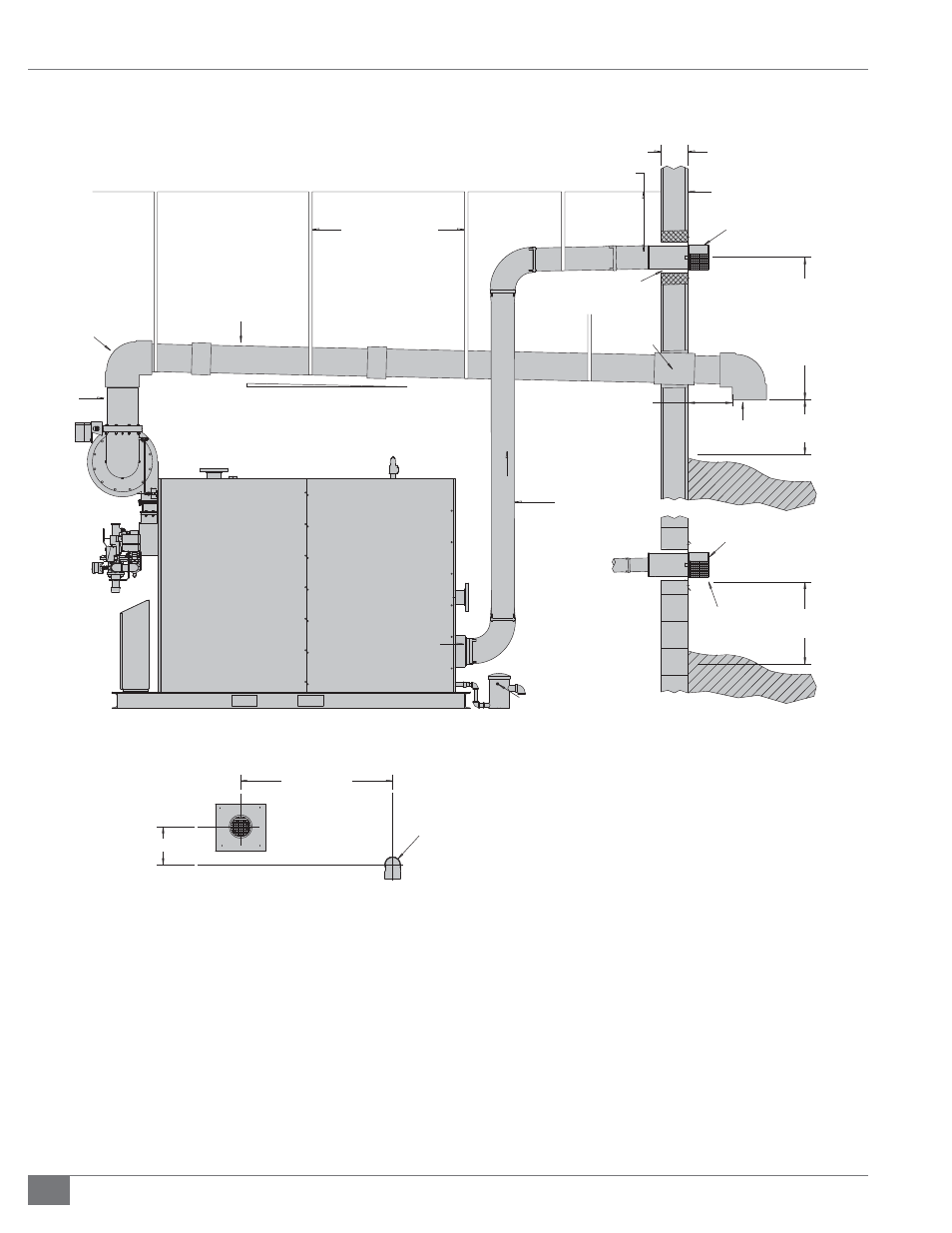

FIGURE 13 - WALL PENETRATION DETAILS
EXHAUST
VANTAGE
HYDRONIC
BOILER
RISE TO RUN: 1/4" PER FOOT
COMBUSTIBLE WALL
PENETRATION DETAIL
NON-COMBUSTIBLE
WALL PENETRATION
PARTIAL DETAIL
STAINLESS STEEL
HIGH TEMPERATURE
EXHAUST PIPE & FITTINGS
INSTALL SUPPORT STRAP AT
5 FT / 150 CM HORIZONTAL
INTERVALS AND AT
INTERMEDIATE ELBOWS
(SPRING HANGERS ARE
RECOMMENDED)
10" PVC PIPE (U.S. ONLY)
REQUIRED AIR
SPACE CLEARANCE
COMBUSTIBLE WALL
WALL TERMINATION
( WITH SCREEN )
6 IN. / 15 CM
MIN. / MAX. WALL THICKNESS
( 3 1/4 IN. - 20 IN. )
( 8.255 CM - 50.8 CM )
DO NOT PLACE INSULATION IN
REQUIRED AIR SPACE CLEARANCE
BAND SUPPORT
COLLAR
(TYP EACH SIDE)
TERMINATION
SCREENED
( WITH SCREEN )
TERMINATION
1/4" TAPPING FOR WATER
100 PSI MAXIMUM (U.S. ONLY)
90° PVC ELBOW
SCREENED AIR INLET
WALL
EXHAUST PIPE
WALL PENETRATION
48 IN. / 122 CM.
36 IN. / 91 CM.
(MINIMUM)
AIR INTAKE
WALL PENETRATION
LOCATE INTAKE
UPWIND OF
EXHAUST PIPING
AIR INTAKE & EXHAUST PIPES WALL PENETRATION CLEARANCES
CAUTION:
AIR INTAKE AND EXHAUST TERMINATION SHOULD BE
SEPARATED AS FAR AS POSSIBLE TO PREVENT FLUE GAS
RECIRCULATION DURING DIFFERENT WIND CONDITIONS
AIR INLET
4 FT / 122 CM ( MINIMUM )
BETWEEN INLET & EXHAUST
OPENING ( SEE BELOW )
AIR INTAKE AND EXHAUST
TERMINATION SHOULD BE
SEPERATED AS FAR AS
POSSIBLE TO PREVENT FLUE
GAS RECIRCULATION DURING
DIFFERENT WIND CONDITIONS.
OPENING 1 FT / 30 CM ( MIN )
ABOVE NORMALLY EXPECTED
SNOW ACCUMULATION LEVEL
OPENING 1 FT / 30 CM ( MIN )
ABOVE NORMALLY EXPECTED
SNOW ACCUMULATION LEVEL
PVC
90° ELBOW
(2.12 cm/m)
