SECTION 4
VTG-IOM-2013-0815
MAINTENANCE
Ð
CAUTION
All information in this manual is for
reference and guidance purposes,
and does not substitute for required
professional training, conduct,
and strict adherence to applicable
jurisdictional/professional codes and
regulations.
All maintenance procedures should
be completed by trained personnel.
Appropriate training and instructions
are available from the Fulton Service
Department at (315) 298-5121 or
your local Fulton Heating Solutions
Representative.
In order to meet warranty conditions,
ensure all appropriate maintenance
activities are performed.
2. Verify settings of the upper door. The upper door is retained by (4) 1-1/8”
nuts. Tools required for upper door setting verifi cation:
 1-13/16” socket and ¾ x ½” adapter (U.S. only; these were
provided from the factory and should be stored in a safe place
in the boiler room). If these components have been misplaced,
Upper Door
Lower Door
Tighten nuts in
criss-cross pattern
1st
3rd
4th
2nd

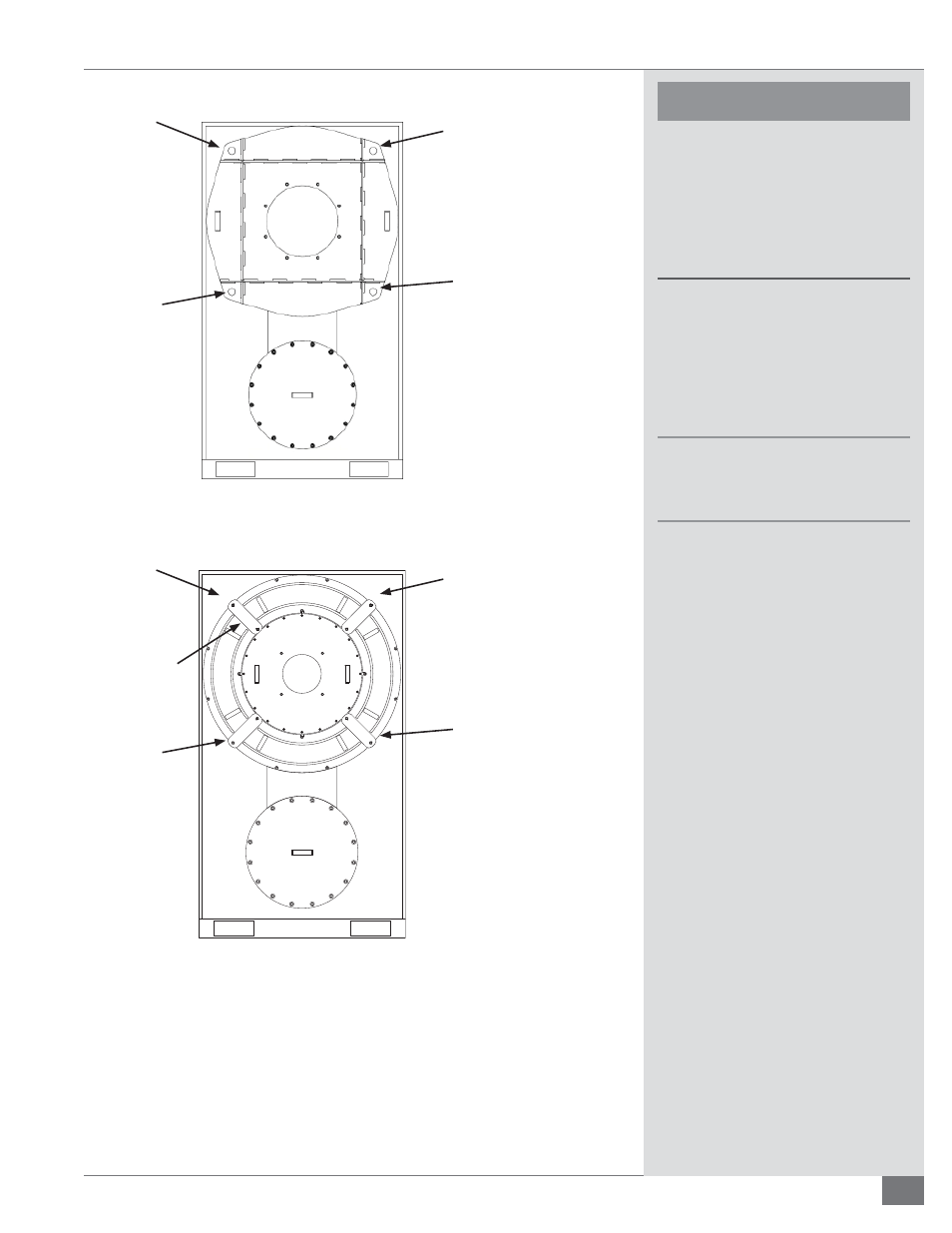

FIGURE 15A - VERIFYING TORQUE SETTINGS (FRONT VIEW, PANELS REMOVED)
VTG-2000 THROUGH VTG-5000
Upper Door
Lower Door
Tighten nuts in
criss-cross pattern
1st
Stage
3rd
Stage
4th
Stage
2nd
Stage
FIGURE 15B - VERIFYING TORQUE SETTINGS (FRONT VIEW, PANELS REMOVED)
VTG-6000
Bridge
(4)
