Fulton Vantage (VTG) Fully Condensing Hydronic Boiler - Manual (Page 22)

© The Fulton Companies 2013
INSTALLATION
VTG-IOM-2013-0815
SECTION 2
2-16
Figure 9 Notes
Characteristic Connection
1 Suction 3/8” NPT (Piped in the Field)
2 Return 3/8” NPT (Piped in the Field)
3 Pressure Gauge Attachment G 1/8” (Completed at Factory)
4 Vacuum Gauge Attachment G 1/8” (Completed at Factory)
5 Pressure Regulator
6 Outlet to Burner ¼” NPT (Completed at Factory)
Minimum Delivery Rate at 174
PSI Pressure
54 GPH (204.41 LPH)
Delivery Pressure Range 145 – 290 PSI (997.7 - 1999.5 k Pa)
Maximum Suction 13 “ Hg
Oil Viscosity Range 2.8 – 75 cSt
Maximum Fuel Oil
Temperature
140 F (60 C)
Maximum Suction and Return
Pressure
29 PSI (199.9 kPa)
Pressure Calibration at the
Factory
198-200 PSI (1365 - 1379 kPa)
Filter Mesh Width 0.006 Inches (0.15 mm)

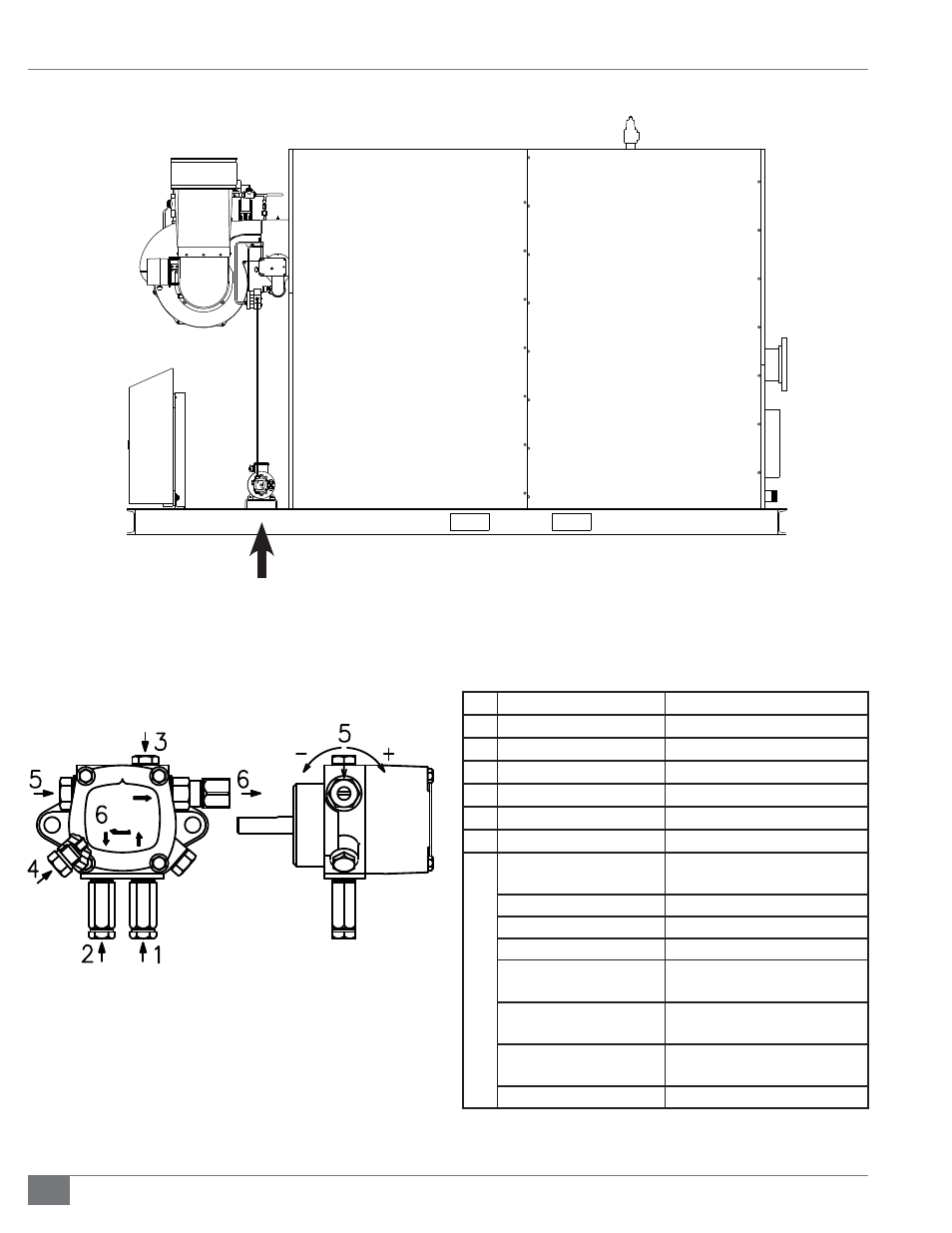

FIGURE 9 - OIL PUMP DETAILS (VTG-2000 TO VTG-4000)
B
C
D
E
FIGURE 8 - OIL PUMP LOCATION (VTG-2000 TO VTG-4000)
