4.5.4 Port Mapping
The DSL device provides multiple interface groups. Up to five interface groups are
supported including one default group. The LAN and WAN interfaces could be included.
Traffic coming from one interface of a group can only be flowed to the interfaces in the
same interface group. Thus, the DSL device can isolate traffic from group to group for
some application. By default, all the interfaces (LAN and WAN) belong to the default
group, and the other four groups are all empty. It is possible to assign any interface to any
group but only one group.

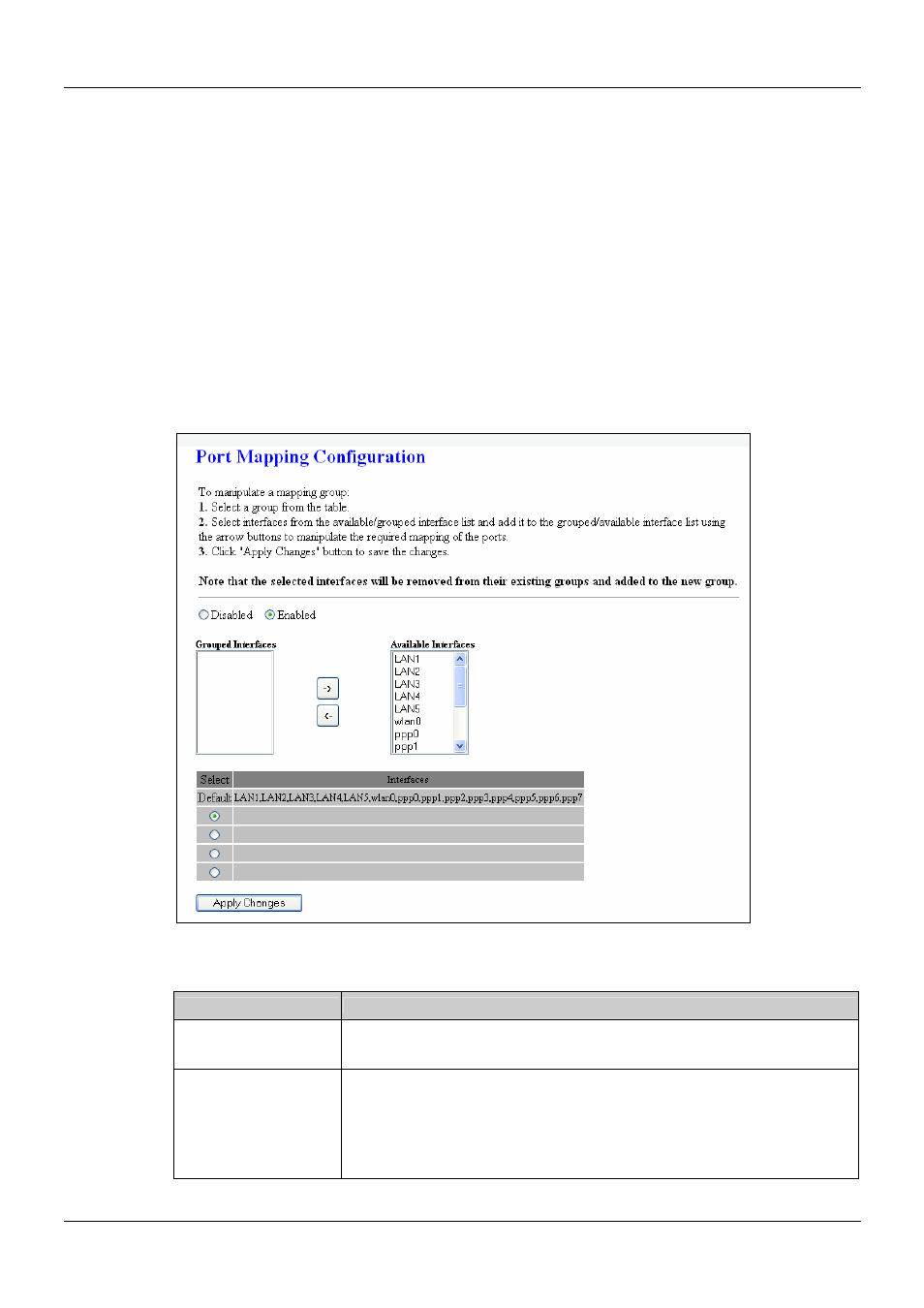

Fields in this page:
Field Description
Enabled/Disabled
Radio buttons to enable/disable the interface group feature. If disabled, all
interfaces belong to the default group.
“Interface groups
To manipulate a mapping group:
• Select a group from the table.
• Select interfaces from the available/grouped interface list and add it to the
grouped/available interface list using the arrow buttons to manipulate the
required mapping of the ports.
• Click “Apply Changes” button to save the changes.
