d. Making a call by ID#
Lift the handset and press the "
∗" button and "1" button. Press the
"0" button, the security guard station ID (1 -4) button and then the
call button. You will hear a low-volume call tone from the handset.
With Expanded System, entering Security guard station's unit
ID# is different by COMMON lines' connection.
Connected to same common line: "programmed ID#" as is.
(e.g. calling to Security guard station #1: Enter "1"), or
Connected to another common line: "programmed ID# plus 2"
( e.g. calling to Security guard station #1: 1+2=3, Enter "3")
NOTES: 1. Pressing only "
∗" button is the same process as
entering letters for name scrolling, therefore "ENTER
A LETTER" is displayed.
2. If the security guard station does not exist, "DENIED"
will be displayed.
12-6
12-5

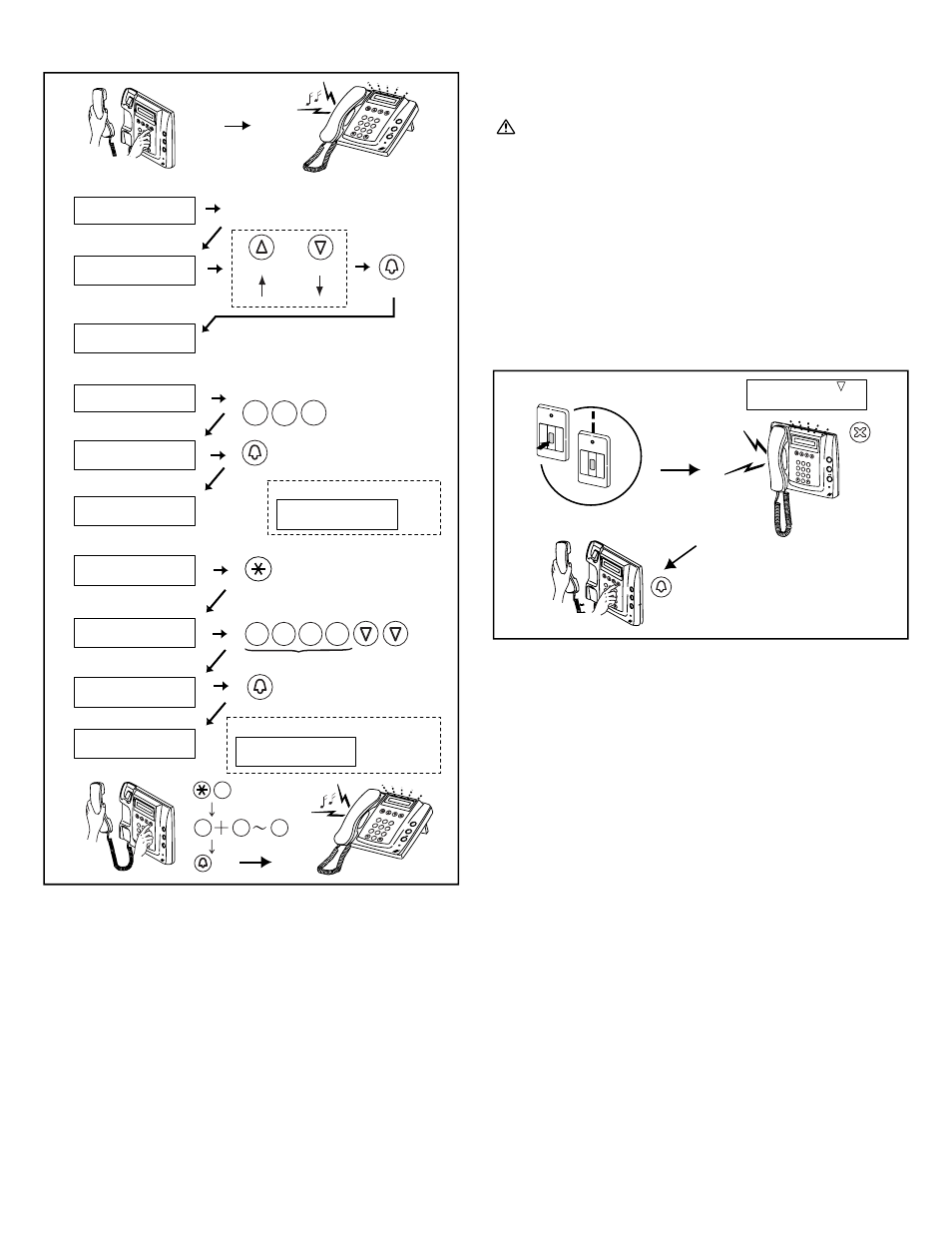

Calling Another Security Guard Station
Lift the handset, display the name and press the call button.
a. Making a call by name scrolling
b. Making a call by entering the room number
c. Making a call by entering letters and selecting the
corresponding name
NOTES: 1. Pressing the search button for approximately 2
seconds will automatically display the resident names
every 0.4 seconds.
2. If both room number 111 and 1111 exist, the resident
name for room 111 will be displayed when 1, 1, 1 is
entered and the resident name for room 1111 will be
displayed if 1 is entered one more time.
Emergency Call
1. When an emergency alarm switch is locked (or when a wire
disconnection occurs), an alarm sounds at the security guard
station and the word EMERGENCY is flashed with the relevant
room number and resident name on the display. Press the cancel
button to stop the alarm.
2. Lift the handset, check the name on the display and press the
resident call button to communicate with the residential station.
NOTES: 1. If an emergency call is already active on a security
guard station and that station is in communication,
another security guard station cannot interrupt. (An in-
use tone will be heard from the handset of the
security guard station.)
2. The security guard station can respond to the
emergency alarm from the residential station, or can
make normal calls to other residential stations.
(However, the name scrolling function will not work
on the security guard station.) Operation is not
possible while the system is in use.
3. The emergency alarm can be activated even when the
system is in use. (Alarms can be activated at the same
time by up to 10 residences.)
4. When a security guard station has received multiple
emergency alarms,an arrow symbol will be shown to
the right of EMERGENCY on the display.
5. When the arrow symbol is displayed, you can use the
search button to select another residential station.
6. Emergency calls while the system is in use can be
made after the other communication is terminated.
