Aiphone GH SERIES 0207 AIC - Manual (Page 27)

- 27 -
6-2

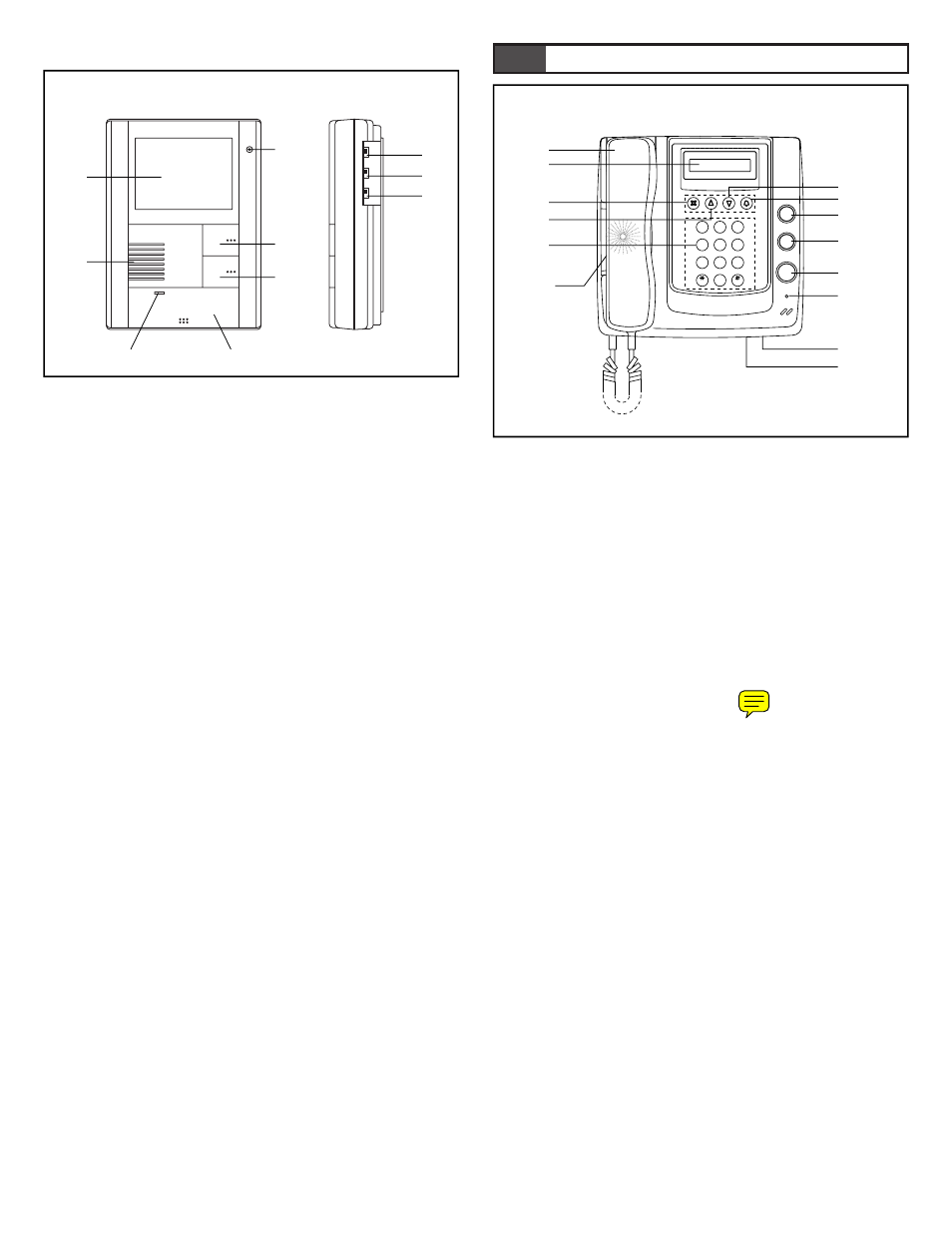

Residential station (GH-1MD)
[1] Video monitor 4 inch black and white CRT
[2] Microphone
[3] Speaker
[4] Light button / Security guard station call button
[5] Door release / Monitor button
[6] Talk button
[7] Talk LED
[8] Monitor brightness control
[9] Receive volume control
[10] Call tone volume control
Security Guard Station
[1] Handset
[2] Display
[3] Cancel button (or set and return)
[4] Back search button (or move cursor to the left)
[5] Forward search button (or move cursor to the right)
[6] Call button (or set and move forward)
[7] 10-key (0 - 9
∗, #)
[8] Service button (option)
[9] Light button
[10] Door release button
[11] Off hook LED
[12] Speaker
[13] Call tone volume control
[14] RS-232 connection, 3.5 mm port
