Operations (security guard station) – Aiphone GH SERIES 0207 AIC User Manual
Page 42
- 42 -
12-1
12-2

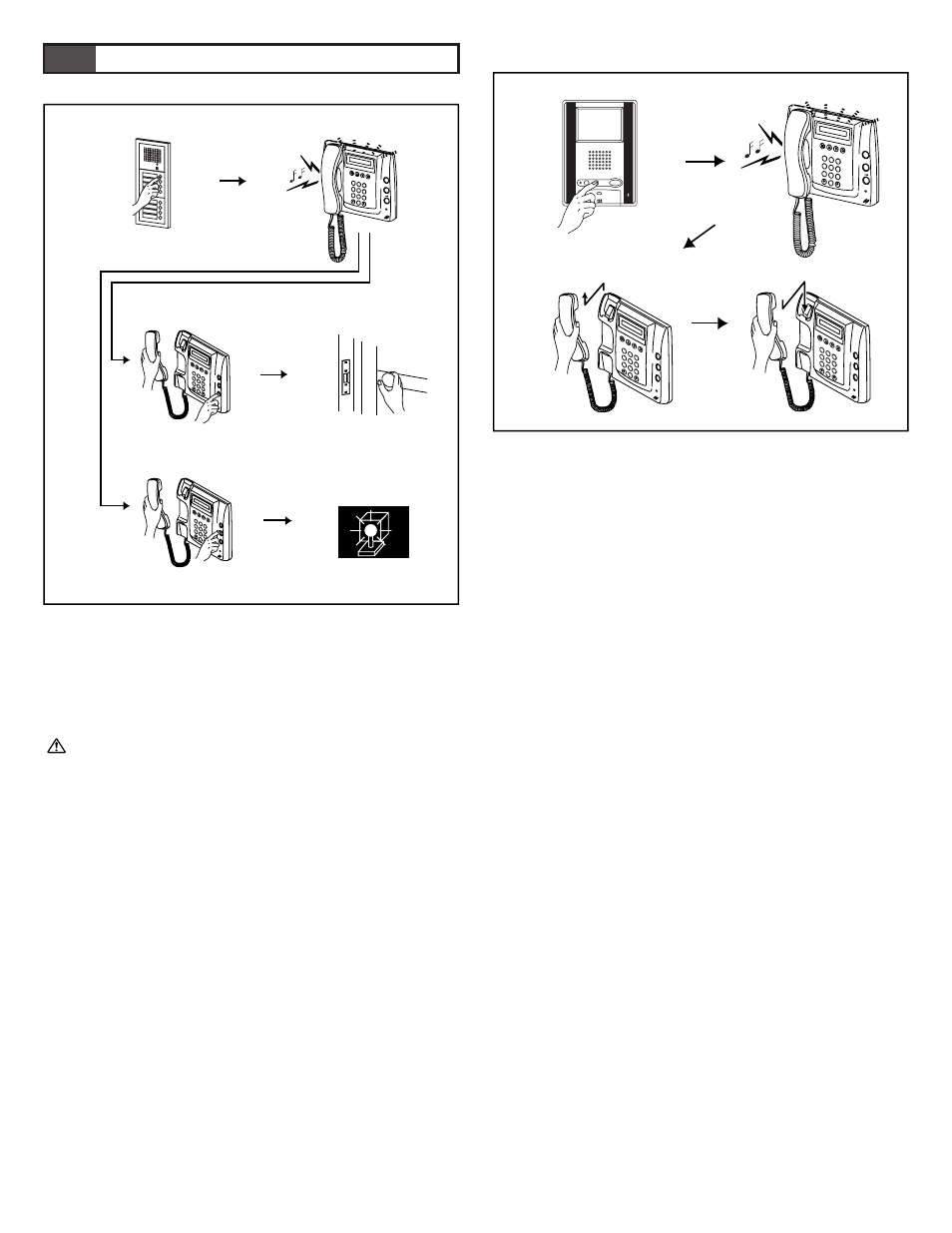

Replying to a Call from an Entrance Station
1. When a call is received from an entrance station, a call tone
will sound for approximately 10 seconds at the security guard
station and the entrance station number will be displayed. Lift
the handset and respond. When you are done talking, replace
the handset. Communication ends automatically after
approximately 3 minutes.
With Expanded System, displaying Entrance station's unit ID#
is different by COMMON lines' connection between Entrance
stations and Security guard stations.
Connected to same common line: "programmed ID#" as is.
(e.g. called from Entrance station #1: shown "MAIN
ENTRANCE 01"), or
Connected to another common line: "programmed ID# plus 8"
(e.g. called from Entrance station #1: shown "MAIN
ENTRANCE 09")
2. Press the door release button while in communication.
3. The door release function will activate on the entrance station
that is in communication.
∗ Depending on the electric door release system that you use, the
door release may be active only while the door release button is
pressed.
4. Press the light button once while in communication.
5. The outside light of the entrance will turn on for the preset
duration of time (4-5), based on timer module used.
Replying to a Call from a Residential Station
1. When a call is received from a residential station, a call tone
will sound for approximately 10 seconds at the security guard
station and the room number and resident name will be
displayed. Lift the handset and respond. If a call is not
responded to, a record is kept.
2. Lift the handset to respond.
3. At the end, replace the handset.
∗ The communication will be ended automatically after
approximately 1 minute when handsfree communication is used
at the residential station, or after approximately 3 minutes when
handset is used.
