Agilent Technologies Z5623A Option H48 5 -17
Performance Verification
Setting Up Limit Testing
Checking the Limit Test File
Step 1. Connect an RF cable from Port 1 of the network analyzer to Test Port 1
of the test set. Connect an RF cable from Port 2 of the network analyzer
to the Reflection Port of the test set.
Step 2. If the test set is turned off, turn it on. If the test set is already turned
on, turn it off, then back on again. This causes the test set to execute
the “*rst;” command, which is equivalent to the “refl_01;” command
combined with the “tran_08;” command.
Step 3. Recall the calibration file listed in Table 4-1 on page 4-13 . (Consult
“ How to Recall a Calibration ” on page 4-14 .) The resulting display
should look something like Figure 5-17 .

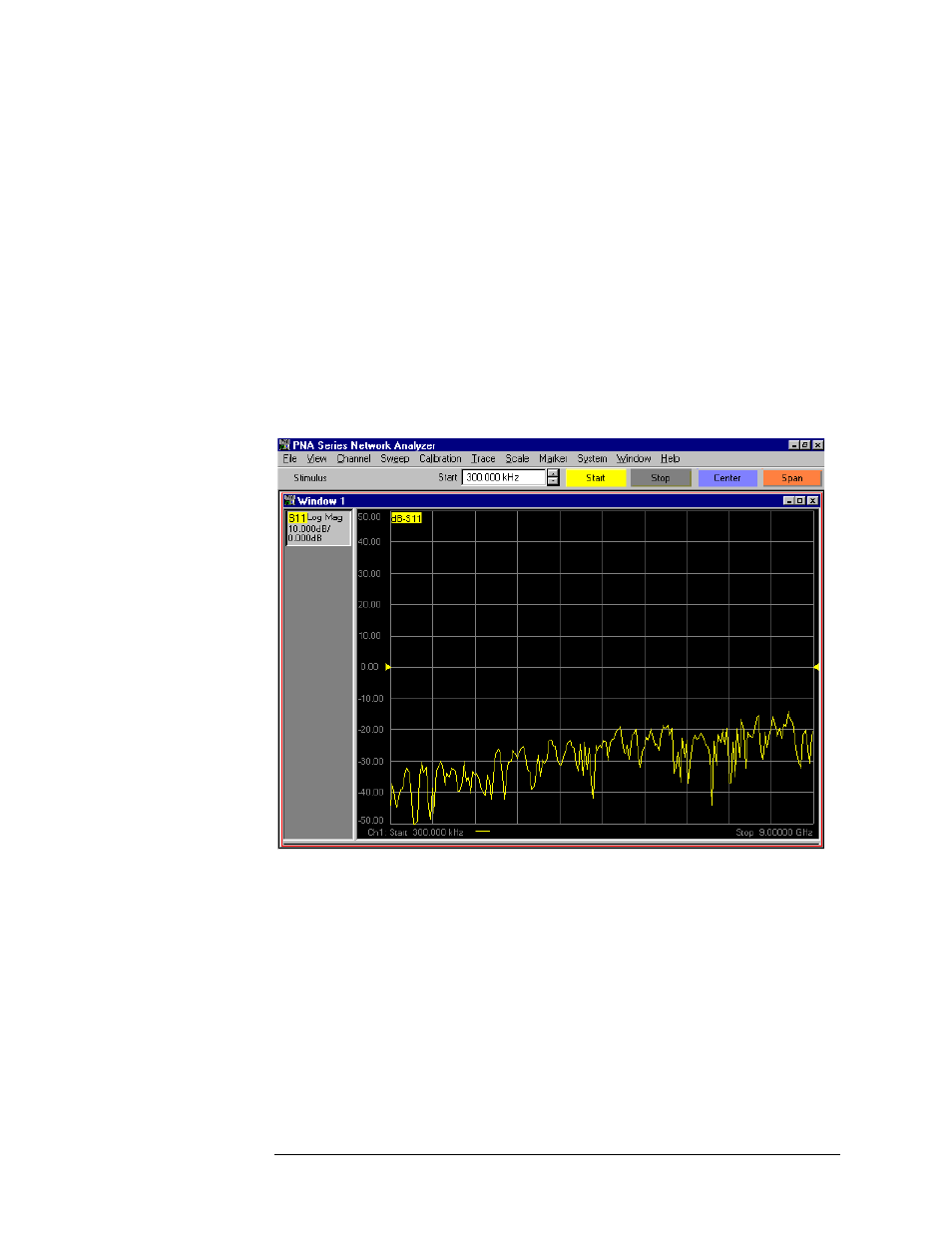

Figure 5-17 Insertion Loss Test Setup, Cal File Recalled
