3-2

Agilent Technologies Z5623A Option H48

Using the Network Analyzer to Control the Test Set

Preparing the Analyzer to Control the Test Set

Step 1. Make sure that all connections shown in

Figure 2-9 on page 2-15

have

been made.

Step 2. Make sure that both the PNA Series analyzer and the test set are

turned on.

Step 3. On the network analyzer, click the System menu, scroll down to

Configure, and click SICL/GPIB. See

Figure 3-1, “System Menu.”

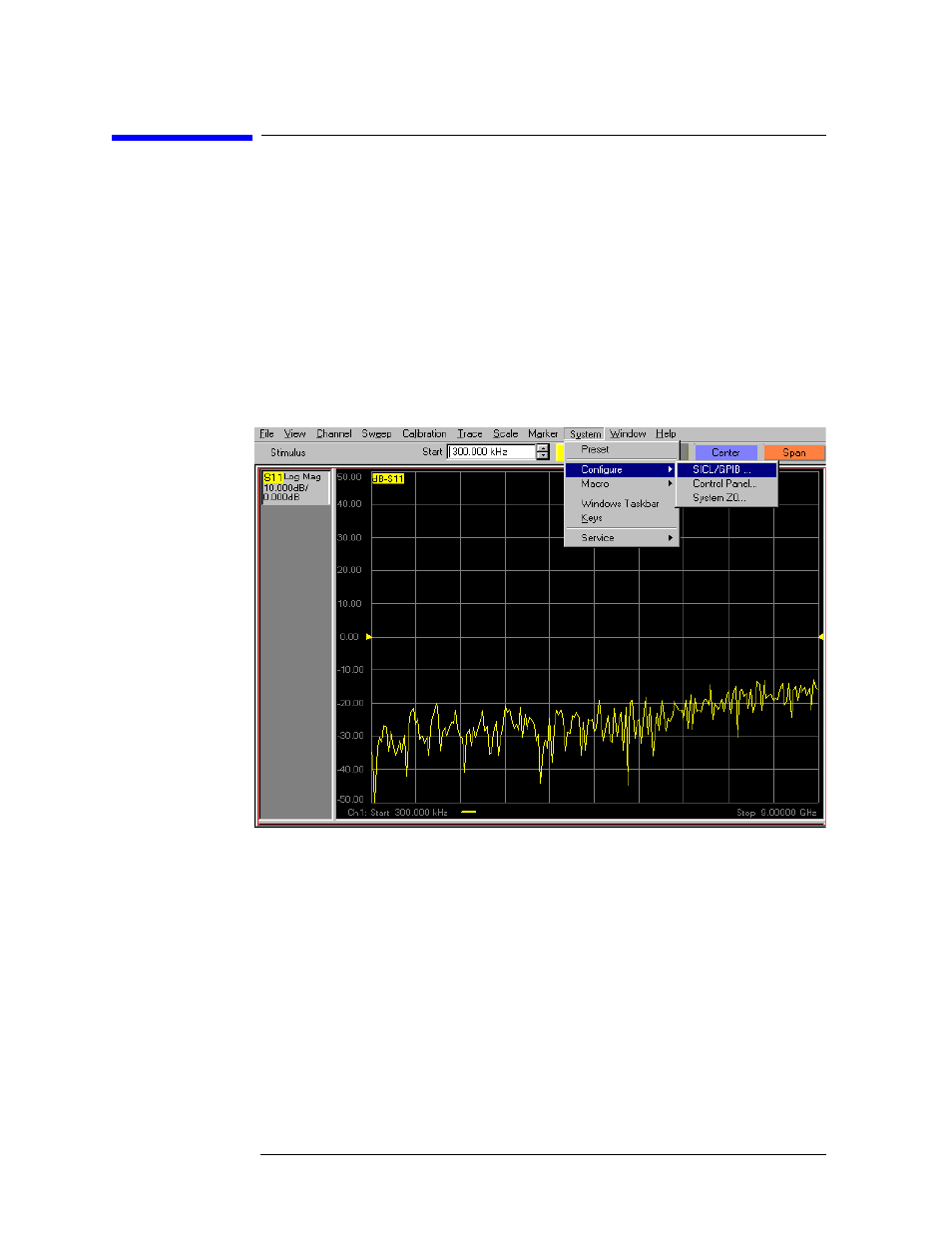

Figure 3-1

System Menu
