5 -10 Agilent Technologies Z5623A Option H48
Performance Verification
Setting Up Limit Testing
Step 4. Type “Insertion Loss” in the Entry field as shown in Figure 5-4 . You can
do this with the keyboard shown in the Title Entry window if you want,
but an easier way is to use the USB keyboard shown in
Figure 2-9 on
page 2-15 . After typing “Insertion Loss”, press the Enter key on the
USB keyboard (or the OK button in the Title Entry window) to close the
window and display the new title.

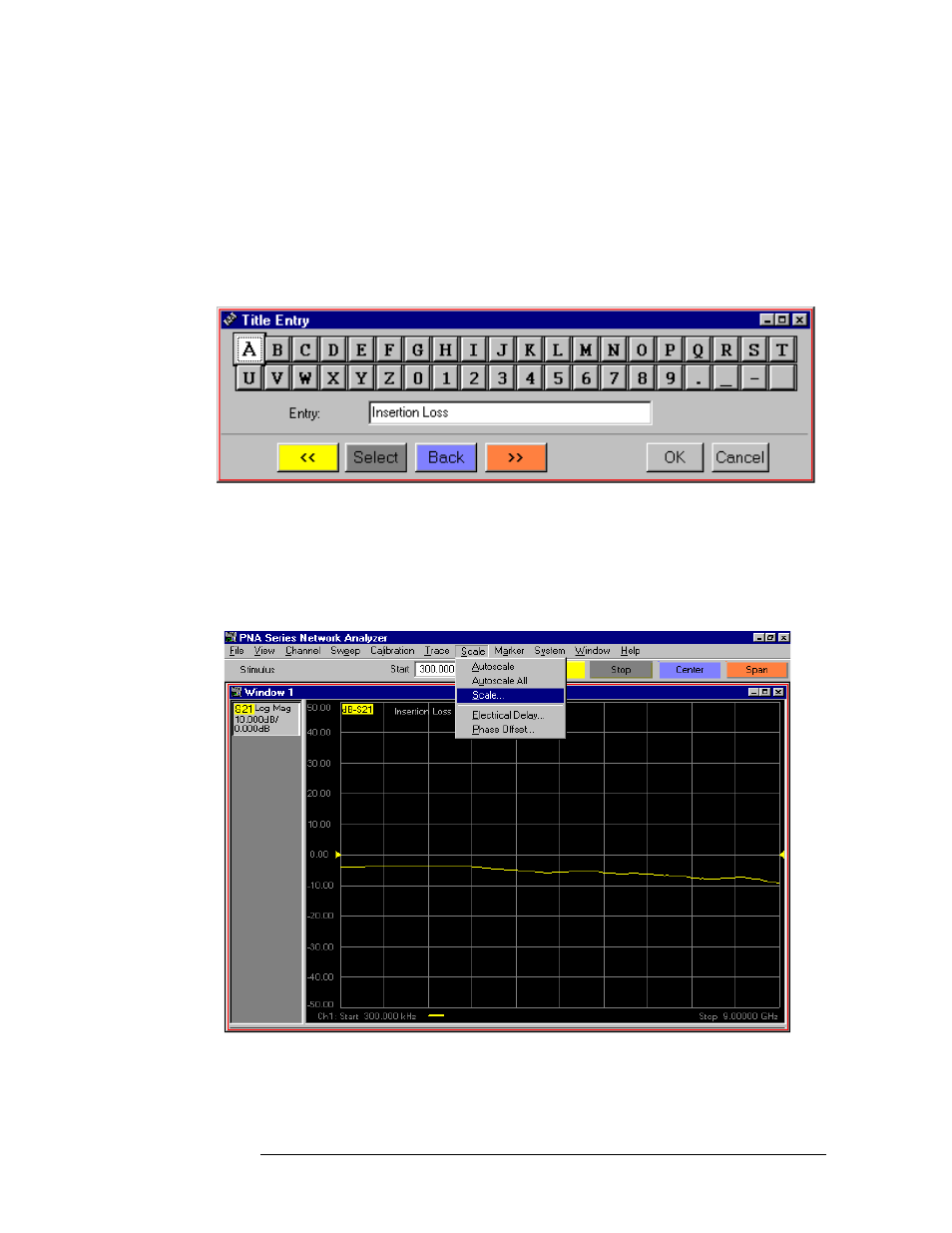

Figure 5-4 Title Entry Window With “Insertion Loss” Entered
Step 5. Click Scale on the menu bar. When the Scale menu appears, scroll
down to the Scale... button and click it. See Figure 5-5 .
Figure 5-5 The “Scale...” Button
