4-16 Agilent Technologies Z5623A Option H48
Calibrating the Network Analyzer
Recalling and Examining Calibrations
Method 2. Calibration File Is On “Quick Recall” List
Click File on the menu bar, then scroll down to the desired calibration
file and click it. See
Figure 4-24 . The file will immediately be recalled.

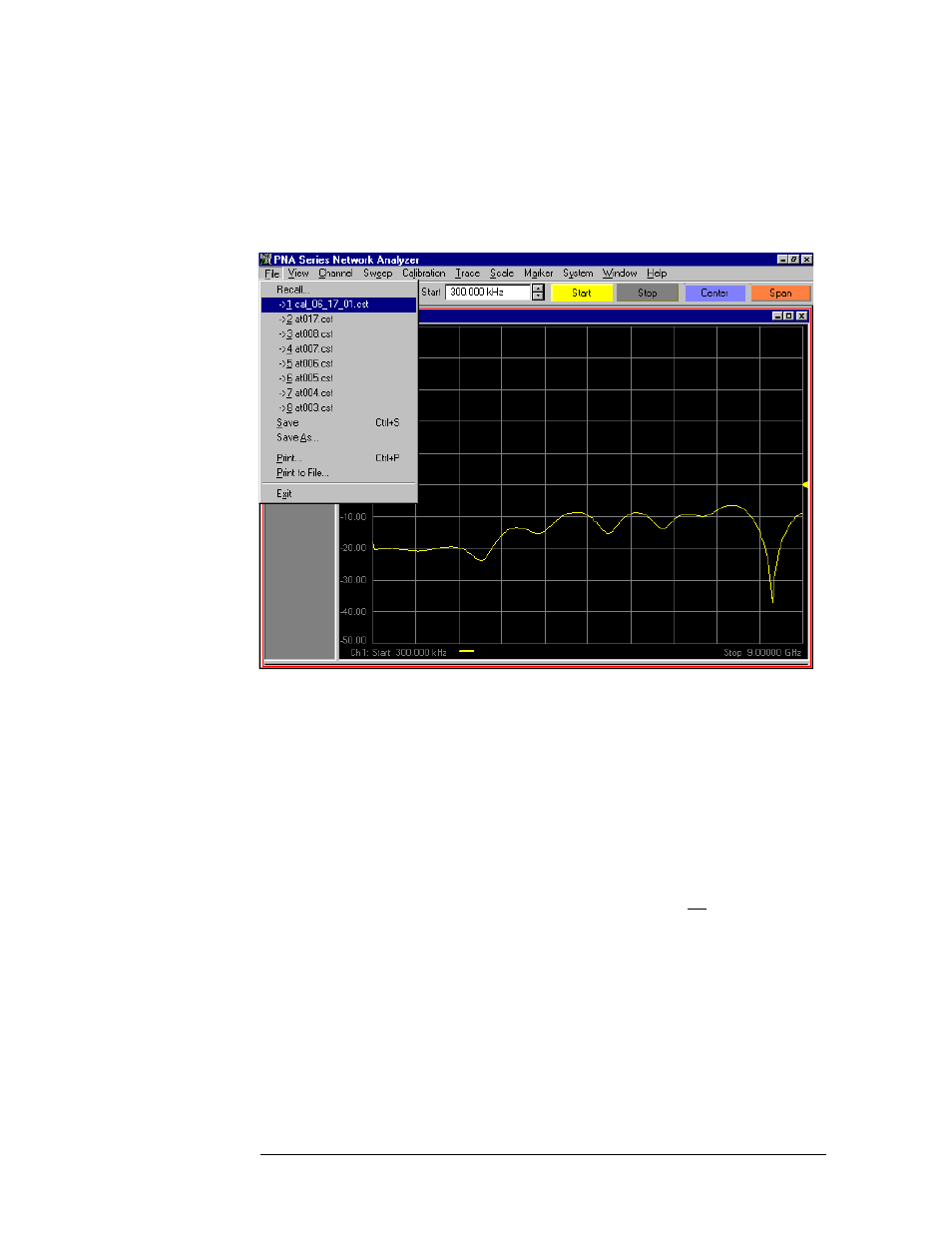

Figure 4-24 Recalling a Calibration File That Is On the “Quick Recall” List
How to Turn a Calibration On and Off
Click Calibration on the menu bar, then scroll down to the
Correction On/Off button.
• If the calibration is turned on, the button will have a check mark in
front of it and the text will read, “Correction ON/off ” as in Figure
4-25 .
• If the calibration is turned off, the button will have no check mark in
front of it and the text will read, “Correction on/OFF” as in Figure
4-26 .
To change from one state to the other, just click the button. Try it! The
trace will change instantaneously. (Compare the trace in
Figure 4-25
with the trace in Figure 4-26 .)
