Agilent Technologies Z5623A Option H48

Performance Verification

Setting Up Limit Testing

Step 2. When the Save As window comes up as shown in

Figure 5-15

, type a file

name that includes the words, “insertion loss,” and the date of the
calibration listed in

Table 4-1

page 4-13

. For example, if the

calibration file is named, “cal_06_17_01”, an appropriate file name for
this step would be, “insertion_loss_with_06_17_01_cal”. See

Figure

5-16

. After entering the file name, record it in

Table 5-3 on page 5-7

Next, click the Save button.

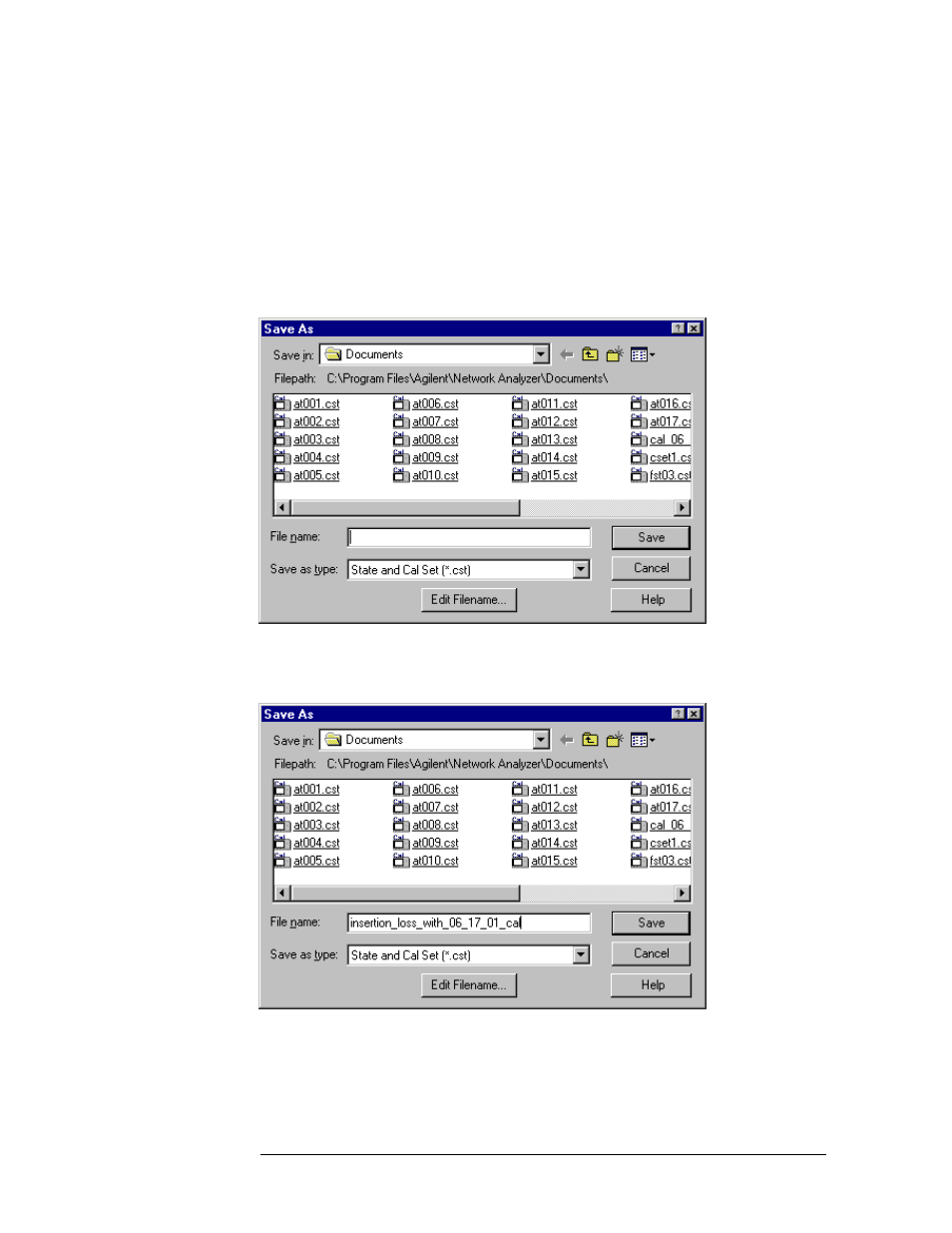

Figure 5-15

“Save As...” Window

Figure 5-16

Specifying The Name Of The Limit Test File For Insertion Loss
