Agilent Technologies Z5623A Option H48 3-5
Using the Network Analyzer to Control the Test Set
Preparing the Analyzer to Control the Test Set
Step 9. When the C:\Progam Files\National Instruments\ NI-488.2\
bin\ibic.exe window appears, type ibdev . See Figure 3-6, “User
Controller Window.” . Then you will be prompted to:
Enter board index: “0”
Enter primary address: “12”
Enter secondary address: “0”
Enter timeout: “0”
Enter ‘EOI on last byte’ flag: “0”
Enter end-of-string byte/mode: “1”

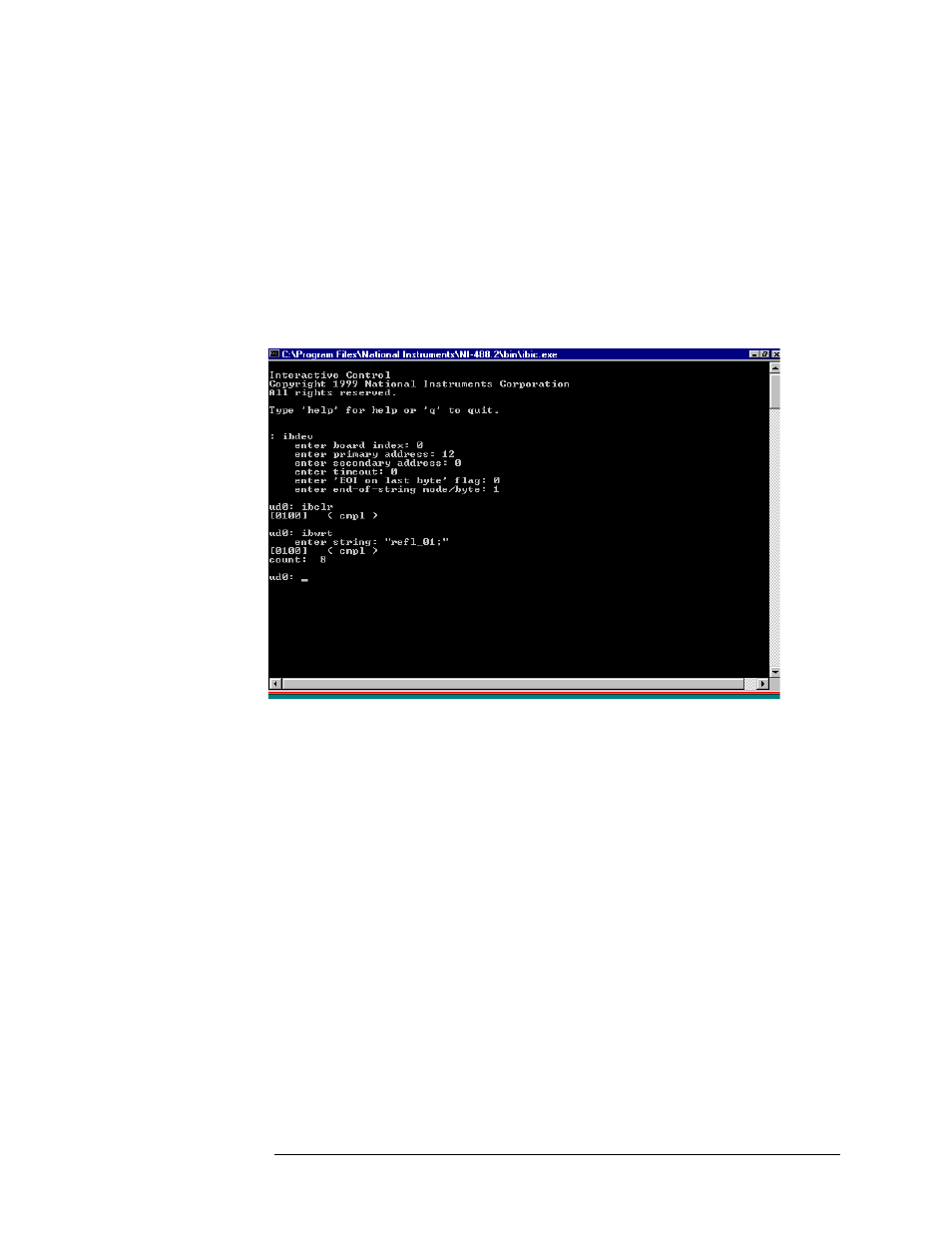

Figure 3-6 User Controller Window
Step 10. If you make a mistake, close the window and repeat steps 7, 8, and 9.
Step 11. When the prompt ud0 : appears in the window, enter ibclr . This
command clears the internal bus. When the ud0: prompt is returned
after the ibclr command has been issued, you are ready to issue
commands to the test set from this window.
