36
PPPoE/PPPoA
PPPoE (PPP over Ethernet) is an ADSL connection known as dial-up DSL. As the
PPPoA it has been created to integrate large band services paying a particular
attention to an easy configuration. The user can obtain an high access speed and he
can also share the same account with the ISP. No additional software are required.
This configuration is valid in case of a subscription with a static IP and active NAT
(SUA) (for the managing of the public class turn to the CD handbook). Let’s see how
to configure correctly this kind of ADSL configuration.

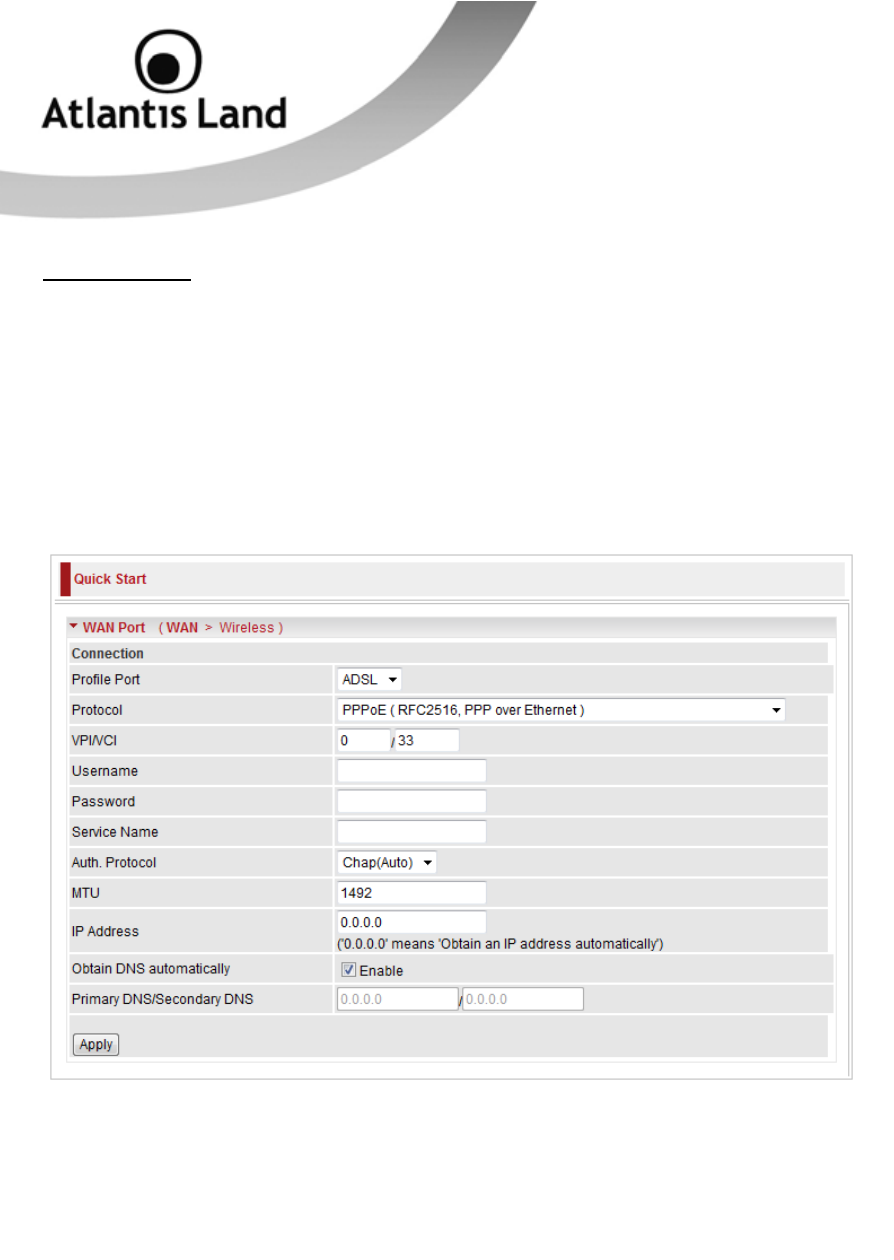

Insert Username and Password and make sure that the parameters are, in case of
PPPoE, the ones in the picture, if not specifically shown by the ISP.
In case of PPPoA choose Protocol=PPPoA(RFC2364, PPP over ALL5) and insert
Username and Password provided by ISP.
