14
• Blinking when data is Transmitted / Received.
USB
• Lit green when the device is connected to a
USB device and ready.
• Flashing when the device is sending/receiving
data.
Wireless
• Lit green when the wireless connection is
established.
• Flashing when the device is sending/receiving
data.
• Flashes steadily when the WPS is active.
DSL
Lit Green when the device is successfully connected to an
ADSL DSLAM (“line sync”).
Internet
• Lit red when WAN port fails to get IP address.
• Lit green when WAN port gets IP address
successfully.
• Flashing green when IP traffic flows through
the device.
• Lit off when the device is in the bridged mode
or when ADSL connection is not present.

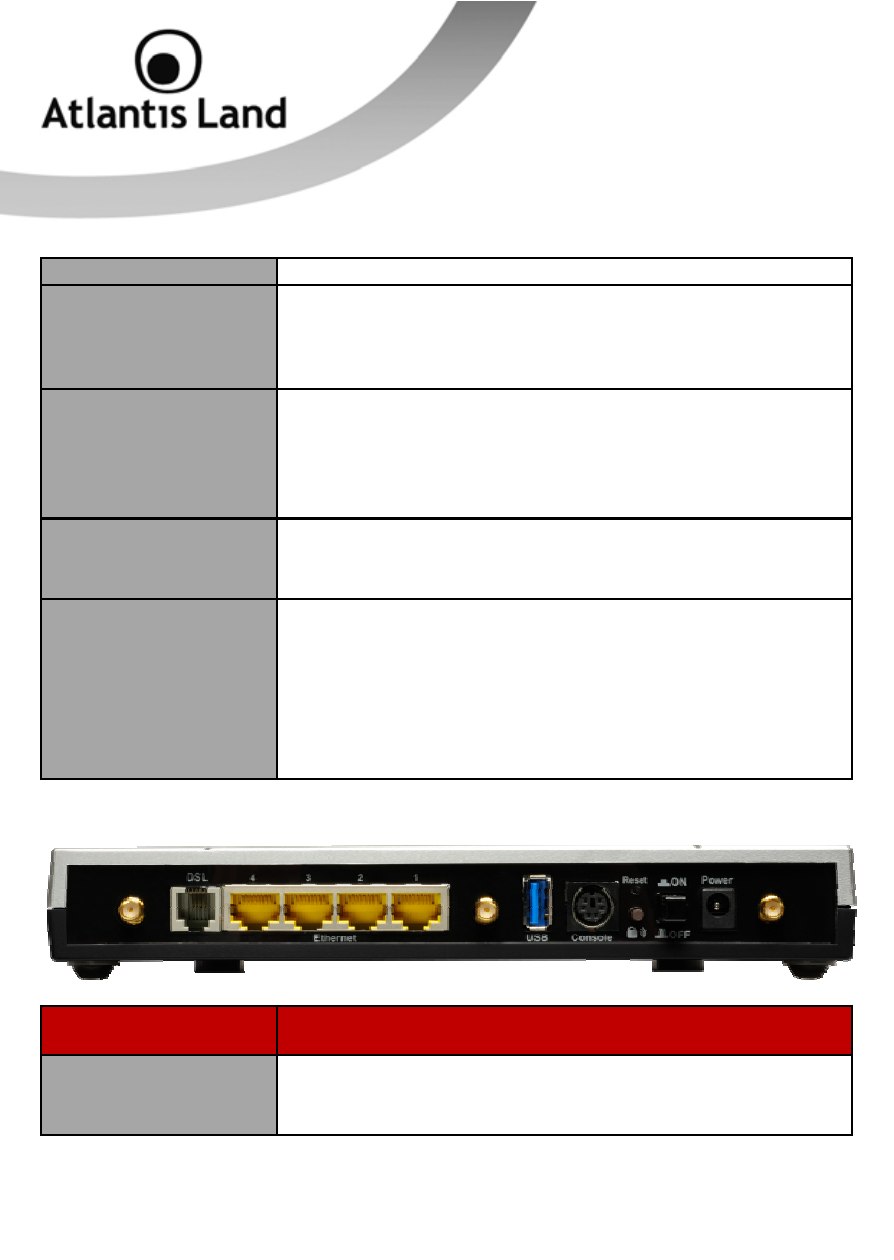

2.3 The Rear Ports
PORT MEANING
Antenna (3)
Connect the detachable antenna to this port.
