Diamond Products CG-2 Mini Groover - Manual (Page 52)

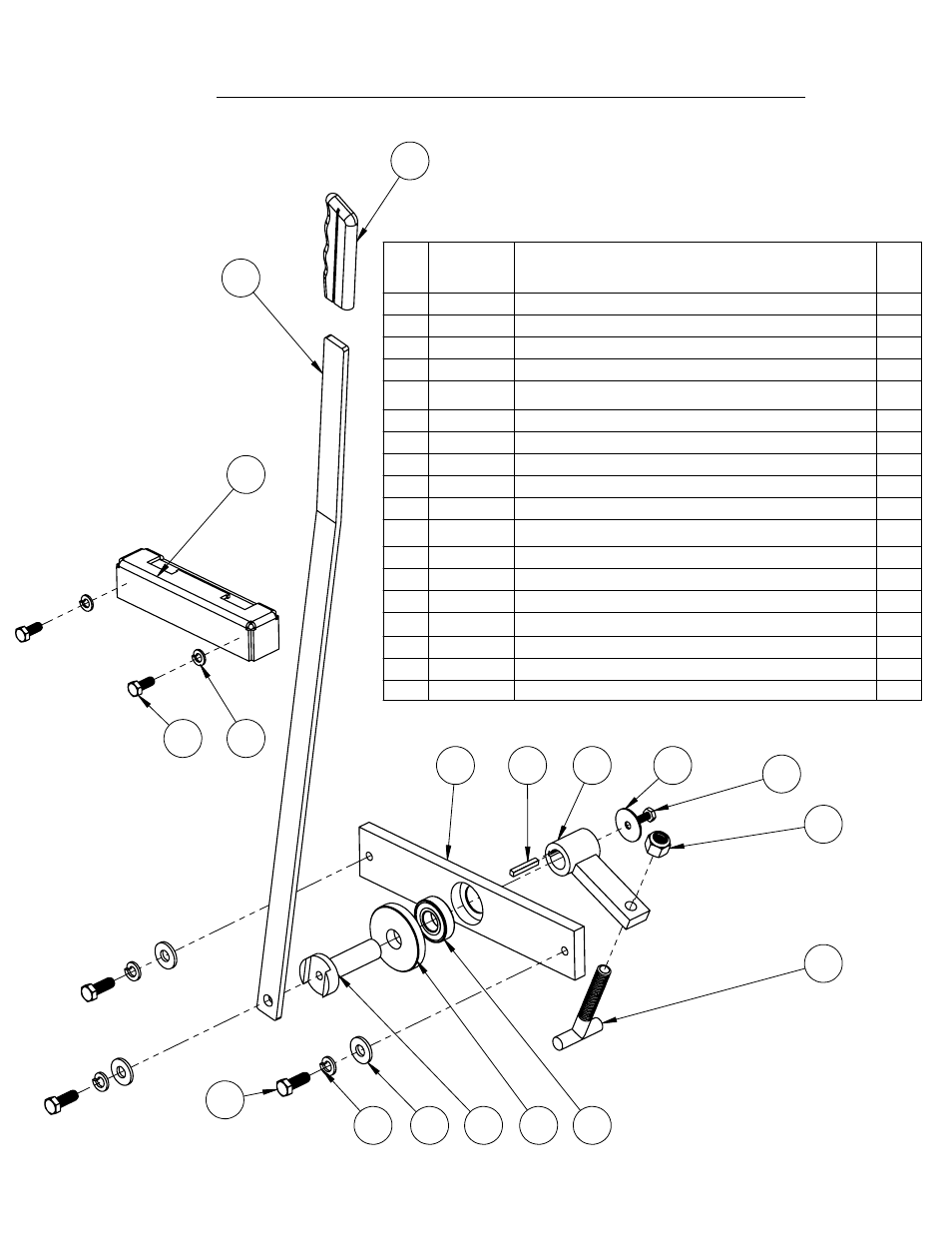

CG-2 Mini Groover Parking Brake Assembly
14
8
13
16 15
18
11
6 4 17 1
12
5 2 3 7 9
10
ITEM
NO.
PART
NUMBER
Description QTY.
1 6011229 Bearing Housing Bar 1
2 6011234 Friction Disc, 3/4" x 2-1/2" x 3/8" 1
3 6011230 Pivot Pin 1
4 6011231 Pivot Arm 1
5 2501664 Ball Bearing, 3/4" x 1-5/8" x 7/16" 1
6 2900083 Fender Washer, 1/4" x 1-1/4" 1
7 2903018 3/8" Flat Washer 3
8 6011232 Brake Lever 1
9 2900006 3/8 SPLIT LOCK WASHER 3
10 2900005 3/8-16x1.00 HEX CAP SCREW 3
11 2900082 1/4-20 x .500" Hex Head Cap Screw 1
12 2900632 T-Bolt, 1/2-13 1
13 6011233 Lever Gate 1
14 2500002 Lever Grip 1
15 2900019 5/16-18x .750" Hex Head Cap Screw 2
16 2900031 5/16 SPLIT LOCK WASHER 2
17 6048229 Key, 3/16" Sq. x 1-1/4" 1
18 2900026 1/2-13 Nylon-Insert Hex Locknut 1
50
