4. Release the spring tensioner.
5. Remove the v-belt form the transmission
pulley.
6. Loop and alight the new v-belt first around
the transmission pulley.
7. Press down on the transmission belt
tensioner and route the secondary belt
around the jackshaft pulley.
8. Release the spring tensioner to tension the
secondary v-belt.
9. Replace belt guards.
Secondary Transmission V-Belt
Engine V-Belts
Refer to the parts list section of this manual for
replacement v-belts and other parts.
Engine
• Always allow engine to cool down before performing any maintenance or inspections.
• Never attempt maintenance when engine is running.
• Always allow maintenance to be done by individuals with experience.
Always refer to the Deutz Operation Manual as the primary source of information on the engine.

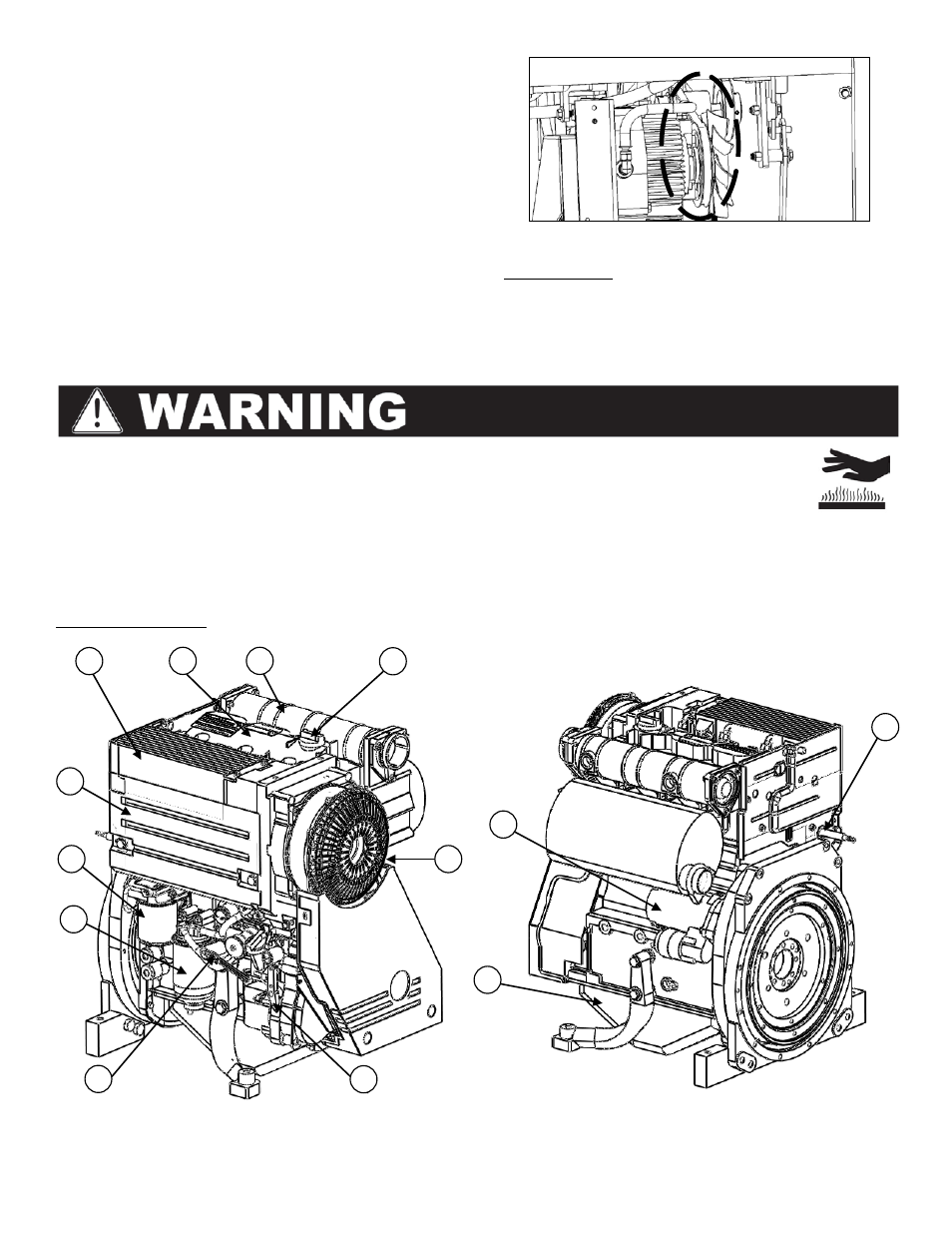

Engine Components
Front View Of Deutz Engine
Rear View Of Deutz Engine
4
1
2 3
7
8
6
13
12
9 11
10
5
22
