Diamond Products CG-2 Mini Groover - Manual (Page 40)

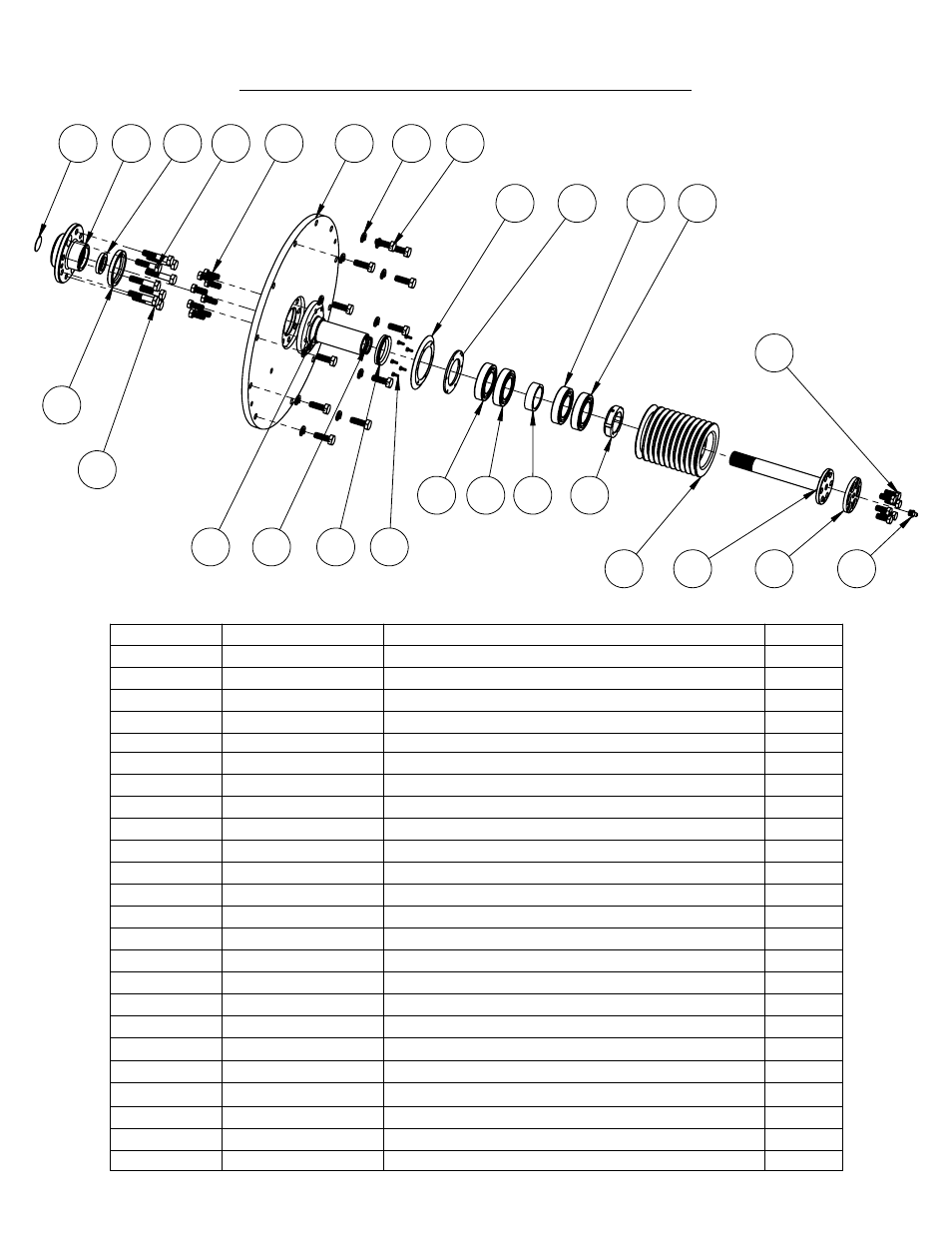

CG-2 Mini Groover PTO Assembly
3 2 8
7
5
17 1 22 21
6 13 23 24
12 11
14 14 15
14 14
16
10 9 18
19
20
4
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 6082013 Inner Ring Support 1
2 2501721 Coupling Hub 1
3 2501670 Hubbard Plug, 1-1/8" 1
4 2900316 M10 x 40mm Hex Head Cap Screw 2
5 2900318 M10 x 50mm Hex Head Cap Screw 6
6 2501717 Shaft Support Sleeve 1
7 2501983 Seal, 2" x 2-5/8" x 5/16" 1
8 2501714 Seal, 1" x 1-1/2" x 1/4" 1
9 2501720 Splined Drive Shaft 1
10 2501722 Sheave, 4" x 11 Groove 1
11 2501719 Bearing Retainer Plate 1
12 2501998 Grease Slinger Disc 1
13 2500751 Seal, 1-3/4" V-Ring 1
14 2501986 Ball Bearing, 40mm x 68mm x 15mm 4
15 6046020 PTO Bearing Spacer 1
16 2900654 Bearing Lock Nut, 1-9/16"-18 1
17 2900621 3/8-16 x .875" Hex Head Cap Screw 8
18 2501985 Grease Disc 1
19 2900954 3/8-24 x .875" Hex Head Cap Screw 6
20 2900062 Grease Fitting, 1/8" NPT 1
21 2903169 M10 x1.5 x 30 Hex Head Cap Screw 11
22 2900321 M10 SPLIT LOCK WASHER 11
23 2501984 Seal, 1" x 1-1/4" x 1/8" 1
24 2900624 6-32 x .375" Hex Head Machine Screw 6
