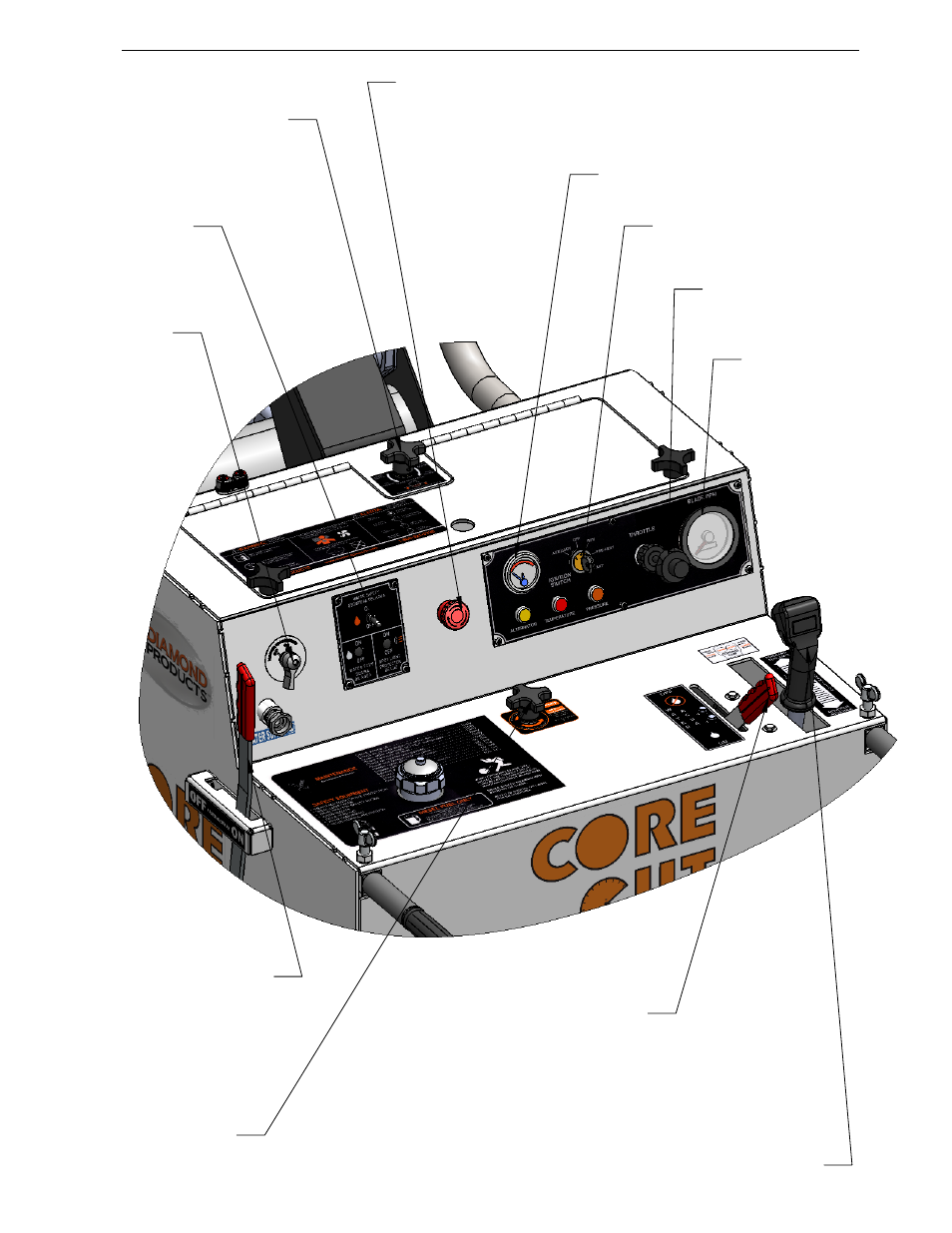

CG-2 MIni Groover Dash Layout & Operational Controls
Water Control Lever:
Used to engage water flow to
cutting head.
Parking Break:
When engaged prevents
machine from moving.
Blade Depth Stop Control:
Holds specific cutting depth.
Emergency Stop:
Stops all power systems
inside of machine in case
of emergency.
Master Power Switch:
Controls Electrical output
from battery to components
electrical systems.
Positraction Control:
Used To engage drive
axle to transmission.
Control Lever:
Forward & Reverse motion controls
machine movement in corresponding
direction while in center is neutral. Left
button controls raises blades, and right
button lowers blades.
Shaft Tach:
Accurately monitors
blade shaft RPM, and
indicates total hours of
saw operation.
Throttle Control:
Used to sets engine RPM.
Engine Temperature Guage
Ignition Switch
Water Safety Switch:
Ensures water pressure
to machine.
