Diamond Products CG-2 Mini Groover - Manual (Page 26)

surface, then finish tightening filter with oil
filter wrench.
12. Inspect seal for any leaks.
13. Remover oil cap and refill engine with the
proper capacity and appropriate oil type
which can be found in the Deutz Operation
Manual included with your saw.
14. Let oil settle for several minutes and check
oil level with dipstick.
15.
Fill with engine oil until oil level meets the
top depression mark on the oil dip stick.
NOTE: When changing oil and filter, replace
filter after dirty oil has been drained form
machine.

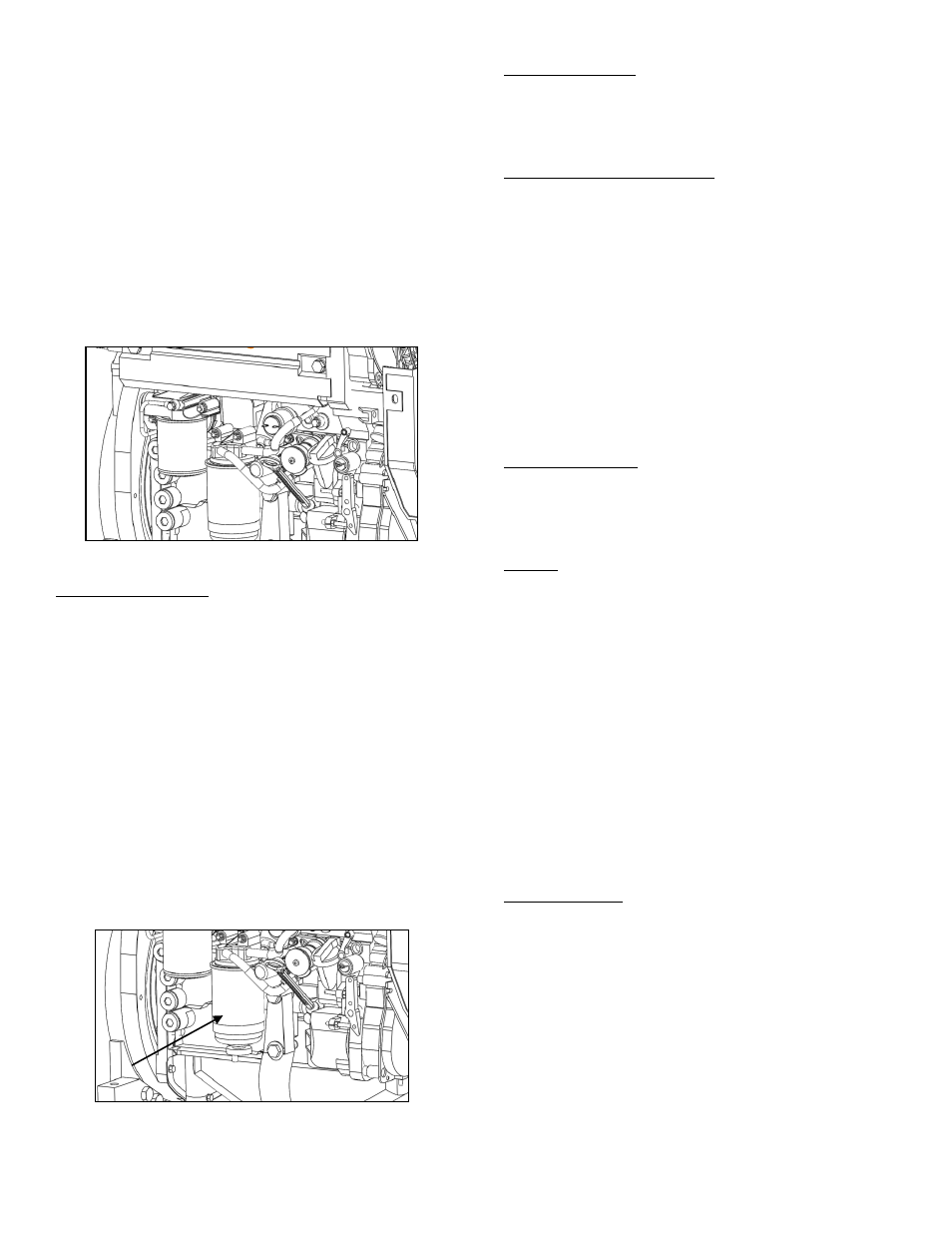

Oil Filter
Replacing Fuel Filter
Replace the fuel filter annually, or every 500 hours.
1. Turn of Engine
2. Lower the saw so that its level with ground.
3. Place drainage pan beneath the fuel filter.
4. Loosen the fuel filter (rotating
counterclockwise) using appropriate
wrench.
5. Drain the fuel from the filter into tray.
6. Wipe down fuel filter mating surface with a
clean cloth.
7. Lightly oil the new filter rubber gasket with
clean oil.
8. Tighten new fuel filter (rotating clockwise)
until it reaches the mating surface, then
tighten using appropriate wrench.
9. Inspect for any fuel leaks.
Fuel Filter
In Line Fuel Filter
Replace the inline fuel filter every 250-500 hours
depending on the amount of sediment visible in the
filter.
Replacing In Line Fuel Filter
1. Turn the engine off.
2. Lower the saw do that it is level with the
ground.
3. Place a drainage tray underneath fuel filter.
4. Remove hose clamps on each end of the
fuel filter, excess fuel may leak form hoses.
5. Remove filter and replace with new filter
verifying that the arrow on the filter is
pointing in the direction of fuel flow.
6. Push hoses up tightly to filter body and
reinstall clamps.
7. Check for any fuel leaks and properly
dispose of waste fuel and filter.
Oil and Fuel Lines
Regularly check the oil and fuel lines for any visible
sign of wear or leakage and replace or service as
necessary.
Storing
Complete the following task when storing saw for
extended periods of time.
• Lower the saw completely to remove strain
on lifting mechanism.
• Turn all switch and controls to OFF position.
• Remove battery from the saw and store in
proper location.
• Drain fuel from tanks and fuel lines.
• Disconnect water supply hose and drain all
water from system using compressed air.
• Refer to Deutz Operator Manual for
information on engine storage.
• Clean the saw and store in a dry area out of
the reach of children.
Disposal of Saw
Properly dispose of the saw when it is no longer
repairable and/or contain any safety hazards not
worth repairing. Drain all fluids form the machine
including oil, and fuel and dispose of according to
city, state, and federal regulations. Remove battery
and deposit it at a proper recycling facility. Secure
the saw and haul to salvage yard for appropriate
disposal.
24
