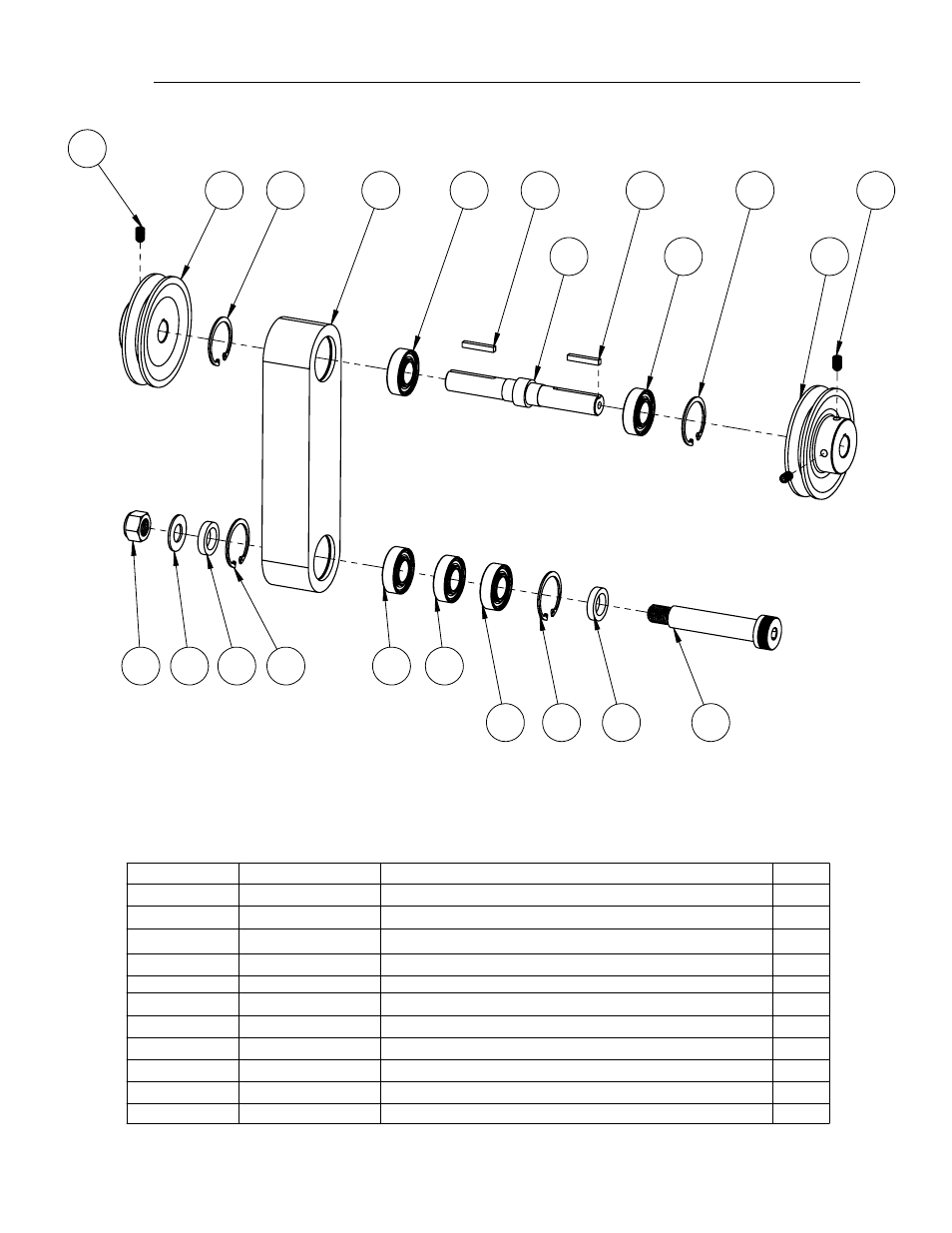

CG-2 Mini Groover Transmission Jackshaft Assembly
ITEM NO. PART NUMBER Description QTY.
1 6010667 Jackshaft Pivot Housing 1
2 2501748 Retaining Ring, 42mm Internal 4
3 2501743 Ball Bearing, 20mm x 42mm x 12mm 5
4 6010666 Idler Jackshaft 1
5 2900669 20mm x 90mm (M16) Shoulder Bolt 1
6 6010685 Bearing Spacer, 1/4" 2
7 2900202 5/8 SAE Flat Washer 1
8 2900670 M16 Nylon-Insert Hex Locknut 1
9 2500455A Pulley, 4" Single Groove 2
10 6048229 Key, 3/16" Sq. x 1-1/4" 2
11 2900617 5/16-18 x .500" Cup Point Set Screw 4
