Cg-2 control grip assembly, Sheet1, Drawing view1 – Diamond Products CG-2 Mini Groover User Manual

Page 32: Cg-2 mini groover control grip assembly

background image

9

7

4

2

3

1

4

8

6

5

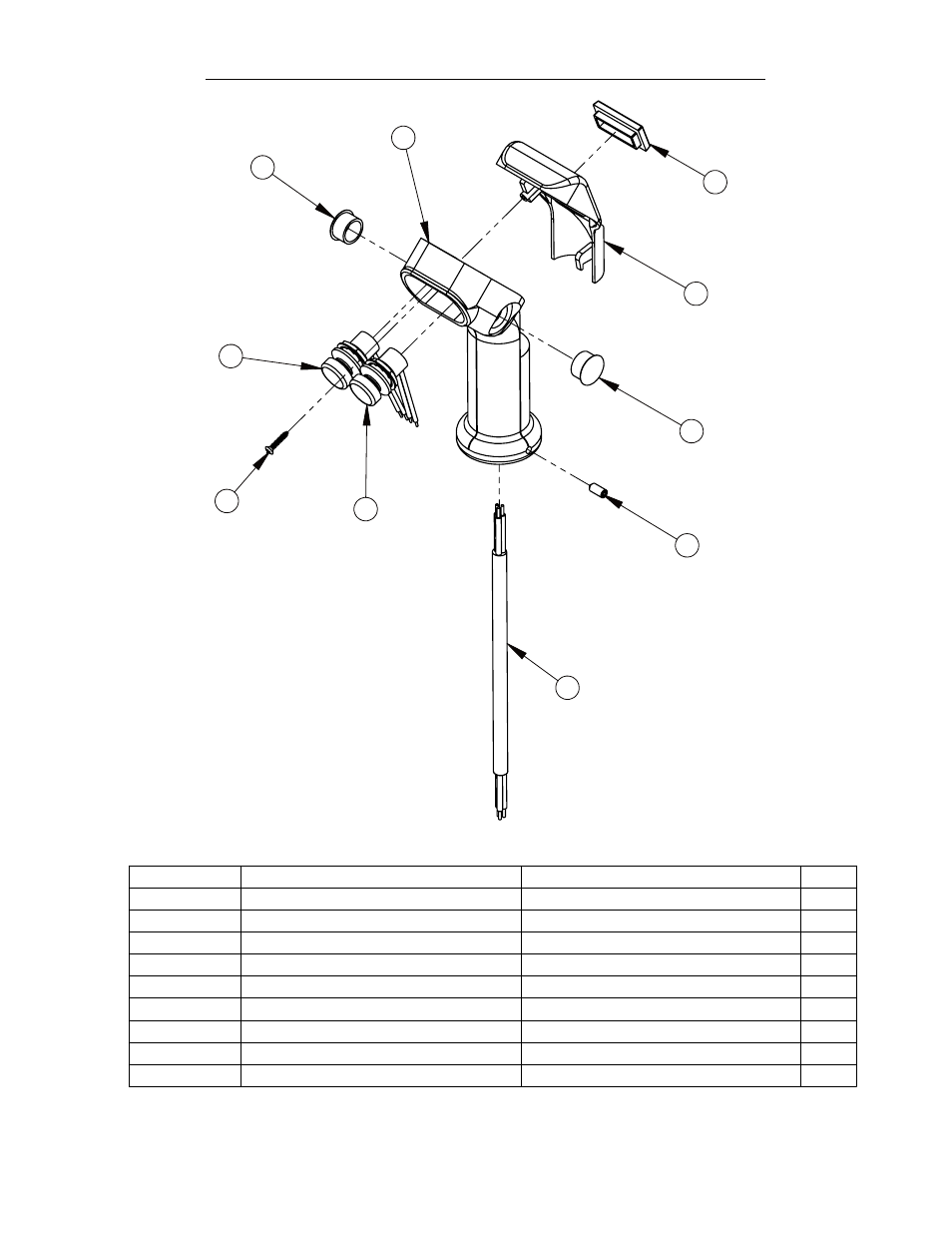

CG-2 Mini Groover Control Grip Assembly

ITEM NO.

PART NUMBER

Description

QTY.

1

2501280

Control Grip Body

1

2

2501281

Control Grip Cover

1

3

2500644

Plug, Rectangular

1

4

2500694

Plug, 5/8" Hole

2

5

2800372

Pushbutton Switch (B&G)

1

6

2800373

Pushbutton Switch (B&W)

1

7

2900453

Set Screw, Soc. Hd., M5-0.8 x 12mm

1

8

2900452

Machine Screw, Oval Hd., #4 x 5/8"

1

9

2800393

Harness, Hydraulic Pump

1

30
