Diamond Products CG-2 Mini Groover - Manual (Page 30)

1
2
10
9
4 3
5
16
15 14 13 12 11
7
6
8

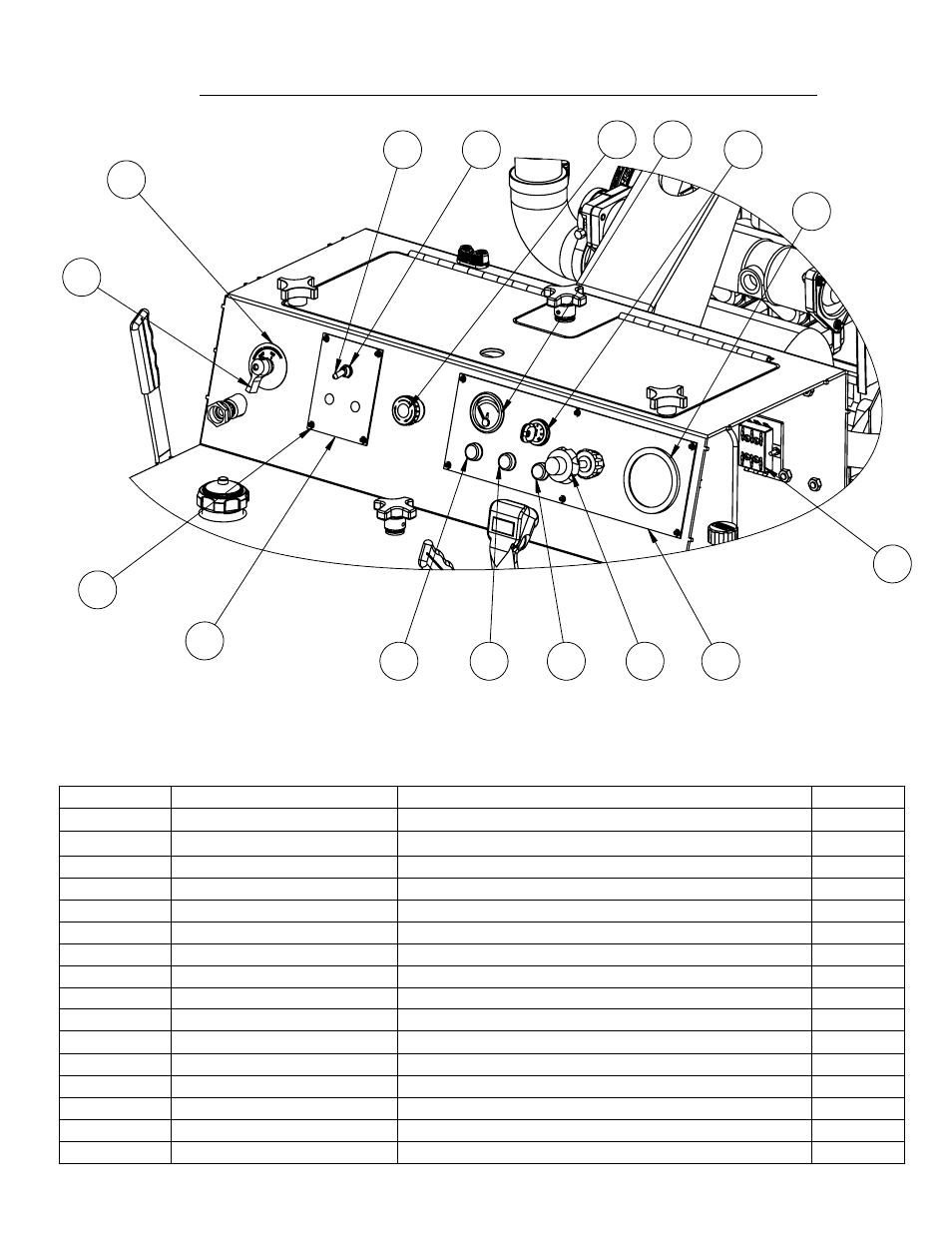

CG-2 Mini Groover Insrument Panel Assembly
ITEM NO. PART NUMBER Description QTY.
1 2500565A Battery Disconnect Switch Body 1
2 2800566 Face Plate, Battery Disconnect 1
3 2800062 Toggle Switch On/Off 1
4 2800063 Switch Boot 1
5 2801367 Emergency Stop Buttton 1
6 2703192 Temperature Gauge, Pricol 1
7 2703194 Ignition Switch & Key 1
8 6010416 VDO Tachometer / Hour Meter 1
9 2900021 Tap Screw, Pan Hd., #10-24 x 3/8" 10
10 6010098 Switch Plate 1
11 2700785 Alternator Light 1
12 2700787 Oil Temperature Light 1
13 2700786 Oil Pressure Light 1
14 2500228 Throttle Controller 1
15 6013093 Gauge Panel 1
16 2800388 Fuse Panel, 6 Circuit 1
