Diamond Products CG-2 Mini Groover - Manual (Page 41)

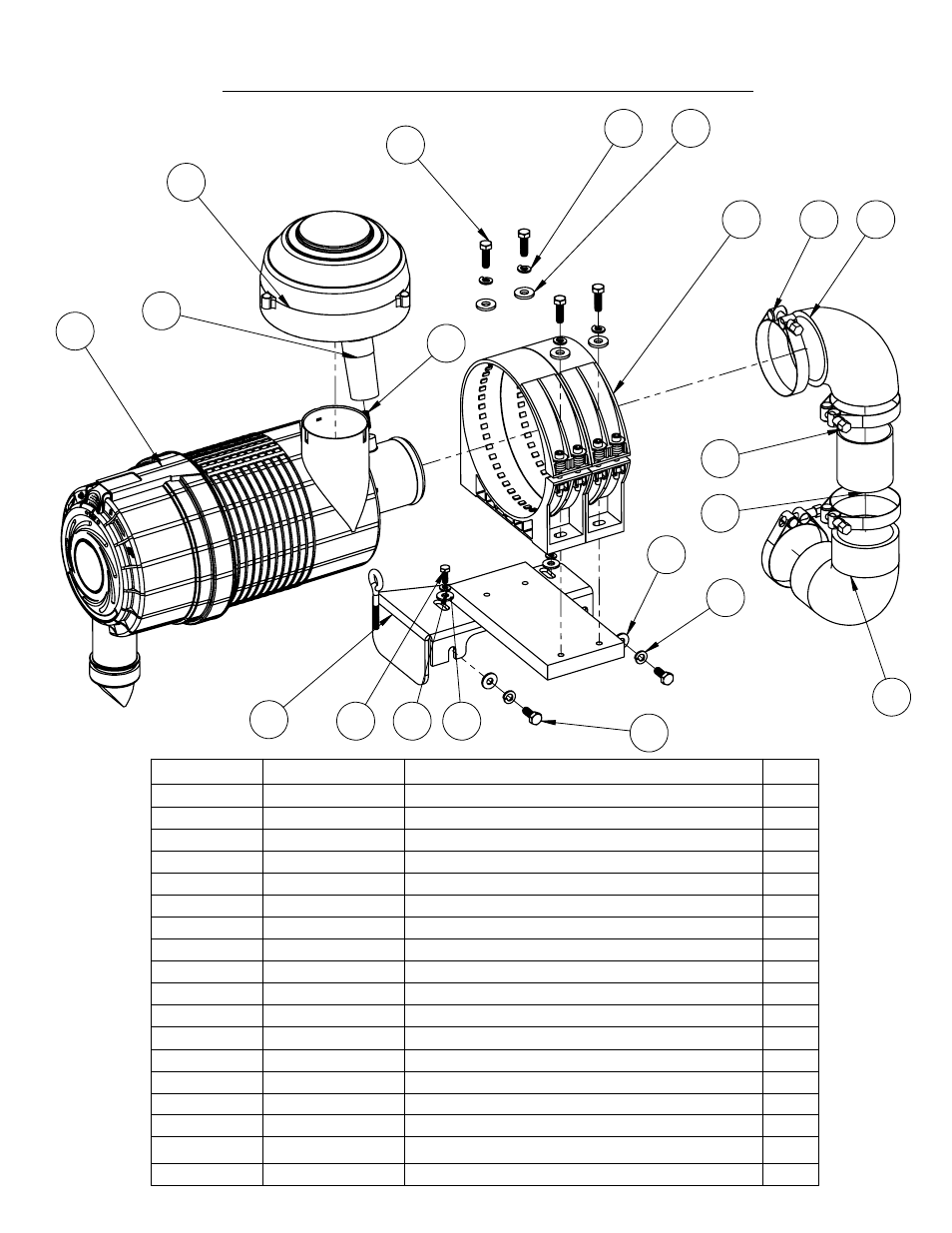

CG-2 Mini Groover Air Intake Assembly
3
11
12
13 14
2 10 4
9
8
7
15
13
16
1 17 18 16
5
6
ITEM NO. PART NUMBER Description QTY.
1 6075401 Air Intake Bracket 1
2 2501385 Mounting Band, Polymer 2
3 2501384 Air Cleaner Complete 1
4 2704336 Hose Elbow, 3" I.D. 1
5 2500423 Restriction Indicator 1
6 3200117 Close Nipple, 1/8" NPT 1
7 2506684 Hose Elbow, 2-1/2" I.D. 1
8 6010052 Connector Tube, 2-1/2" O.D. 1
9 3200847 2.78-3.09" T-Bolt Clamp 3
10 3205561 3.31-3.59" T-Bolt Clamp 1
11 2501388 Pre-Cleaner with Clamp 1
12 2900138 5/16-18x1.00 HEX CAP SCREW 4
13 2900031 5/16 SPLIT LOCK WASHER 6
14 2900567 5/16" Flat Washer 4
15 2900329 M8 x 20MM Hex Head Cap Screw 2
16 2900126 1/4" USS Flat Washer 4
17 2900341 M6 x 16mm Hex Head Cap Screw 2
18 2900024 1/47" Split Lock Washer 2
