SLC RetroPAK Controller
MODULAR I/O CONNECTIONS
39
4.4 MODULAR OUTPUT CONNECTIONS
This section describes the process input connections for the following input module types:
• 2005A Solid-State Relay Output Module - Section 4.4.2
4.4.1 2005A SSR Output (DOM)
Recommended connections to a customer relay are shown in Figure 4-11. Make SSR output
connections as shown in Figure 4-12.
DC output modules are used for controlling or switching DC loads. Each module provides
optical isolation between the field devices and the control logic. This isolation is limited to
250 Vrms at the terminal block. Typical uses and applications for DC output modules include
switching the following loads: DC relays, DC Solenoids, DC motor starters, or DC lamps or
indicators. Wire rating: 600 V, -20°C +105°C UL, CSA approved.
Module Fuse rating: 4 Amps, 250V.
DC DIGITAL OUTPUTS (ISOLATED)
Output voltage ranges 5-60 V
Max Output current 1A
Turn-off time 0.75 msec
Max Output voltage drop 1.6 V
Off-state leakage at max V 1 mA

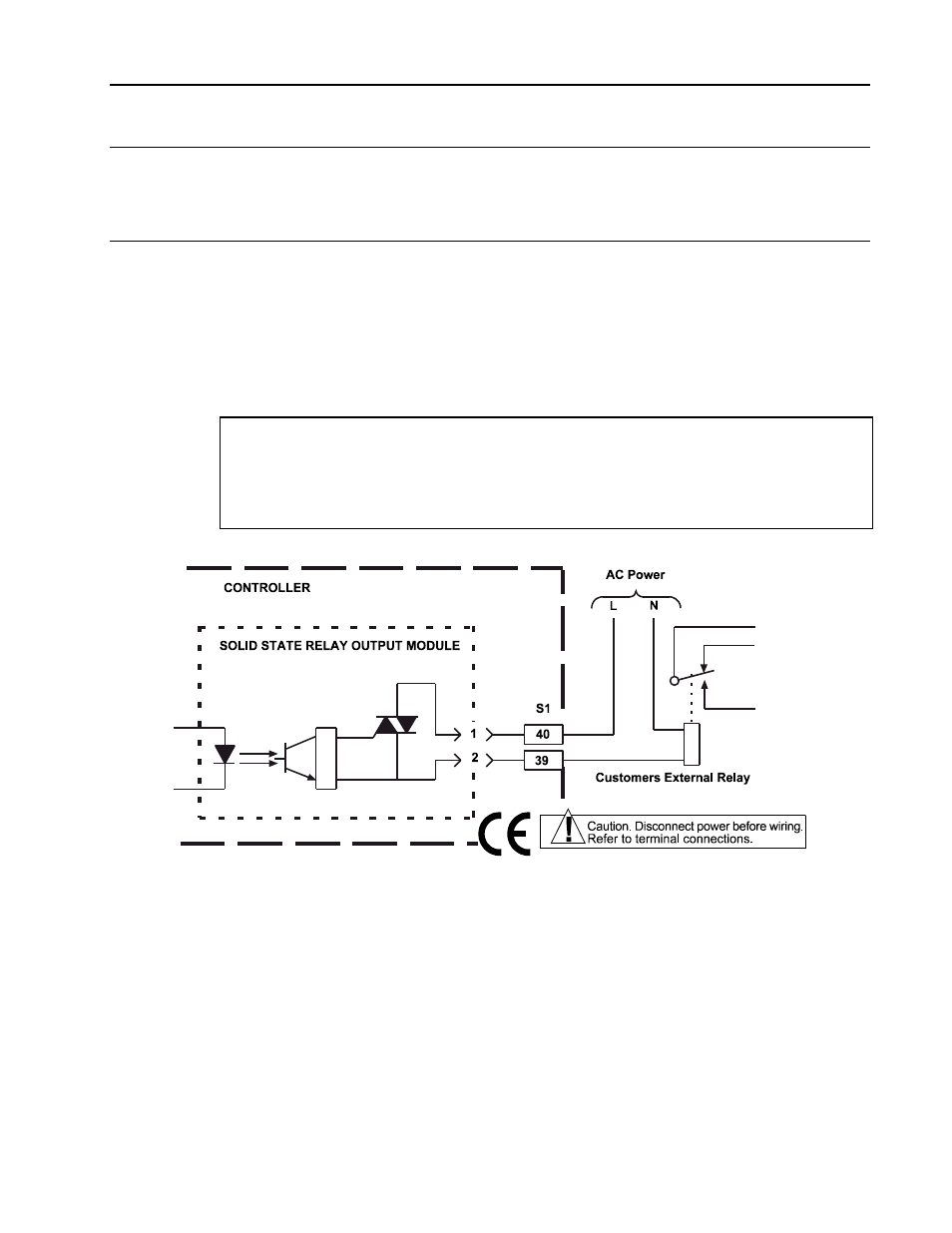

Figure 4-4. Recommended Connection to Solid State Relay
