MOD 30ML Multiloop Controller
PRODUCT DESCRIPTION
10

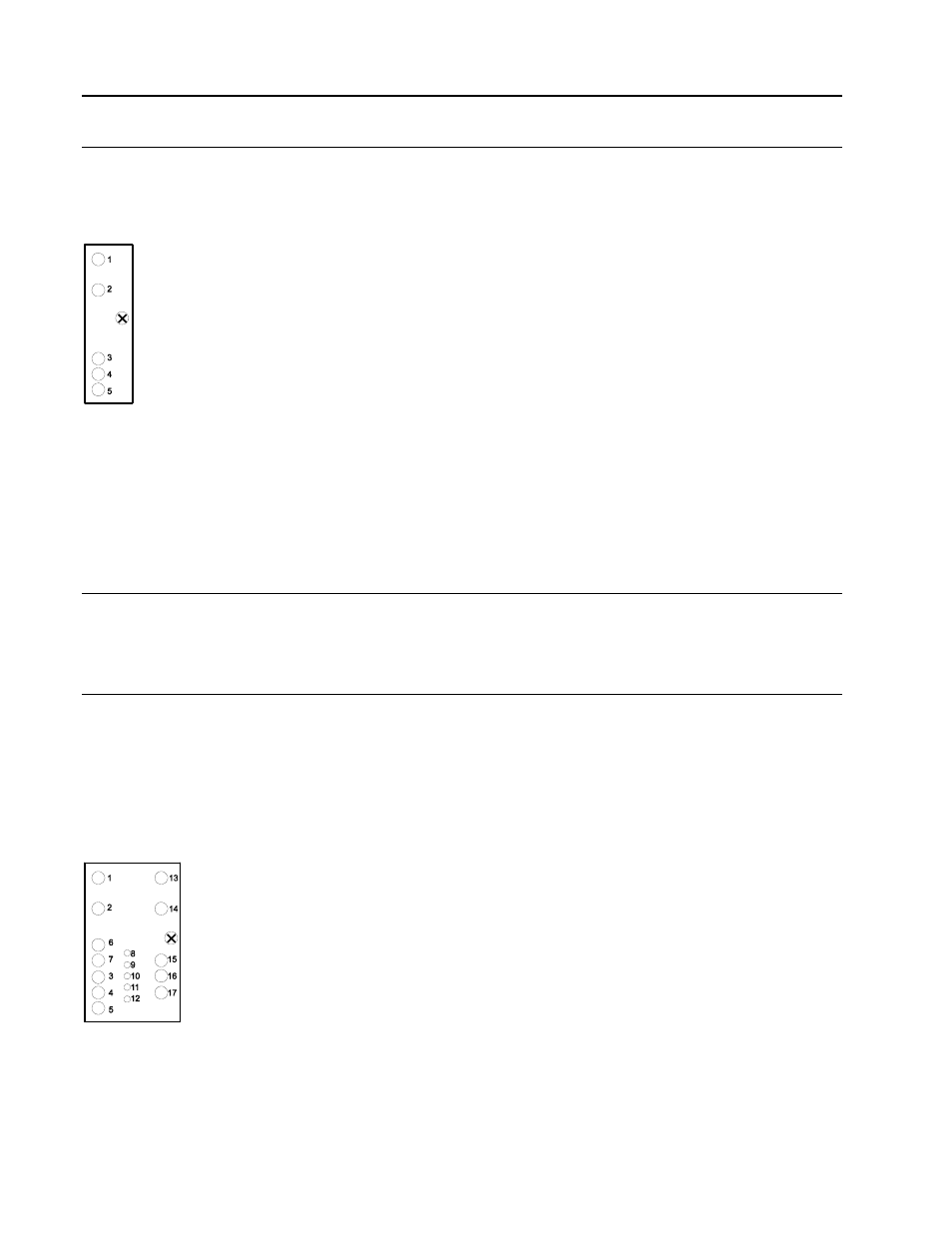

1.4.3 2005A Solid-State Relay Output Module
The Solid-State Relay Output module provides the necessary interfacing for AC or DC digital
outputs when high isolation voltages are required (250V rms isolation limitation through
connection terminals). This module uses the Digital Output Module (DOM) Block for
configuration of output parameters.
DOM
Catalog Number Description for 2005A
BASE NUMBER
2005A Nonisolated Digital Input Module
UNUSED
Z Unused Character
ELECTRICAL CODE 21
General Purpose
OUTPUT RANGE
10 5 to 60 VDC
UNUSED 0 Unused Character
MODEL
A Design Level
Sample Number
2005AP10100A
1.5 COMMUNICATIONS MODULES
The descriptions included in this section give a brief overview of the functions and features of
the communication modules. These modules can be used to add a second communication
channel to the MOD 30ML.
1.5.1 2030N ICN Communication Module
The ICN Communication module provides Instrument Communication Network (ICN)
communications capability for the MOD 30ML Multiloop Controller. The ICN is a proprietary
network that allows peer-to-peer communications between the controllers and can be used
with the MOD 30 Instrument line. It also uses a communication link to a computer running
the Application Builder or PC30 series software or other operator interface software. The
ICN Baud rate is 31,250 bits per second. The Model B ICN requires an external terminator
such as the 2030F ICN Terminator.
ICN
Catalog Number Description for 2030N
BASE NUMBER
2030N ICN Communication Module
UNUSED
Z Unused Character
ELECTRICAL CODE 10
General Purpose
UNUSED
000 Unused Character
MODEL B Design Level
Sample Number
2030NZ10000B
