Remote I/O Modules
PRODUCT DESCRIPTION

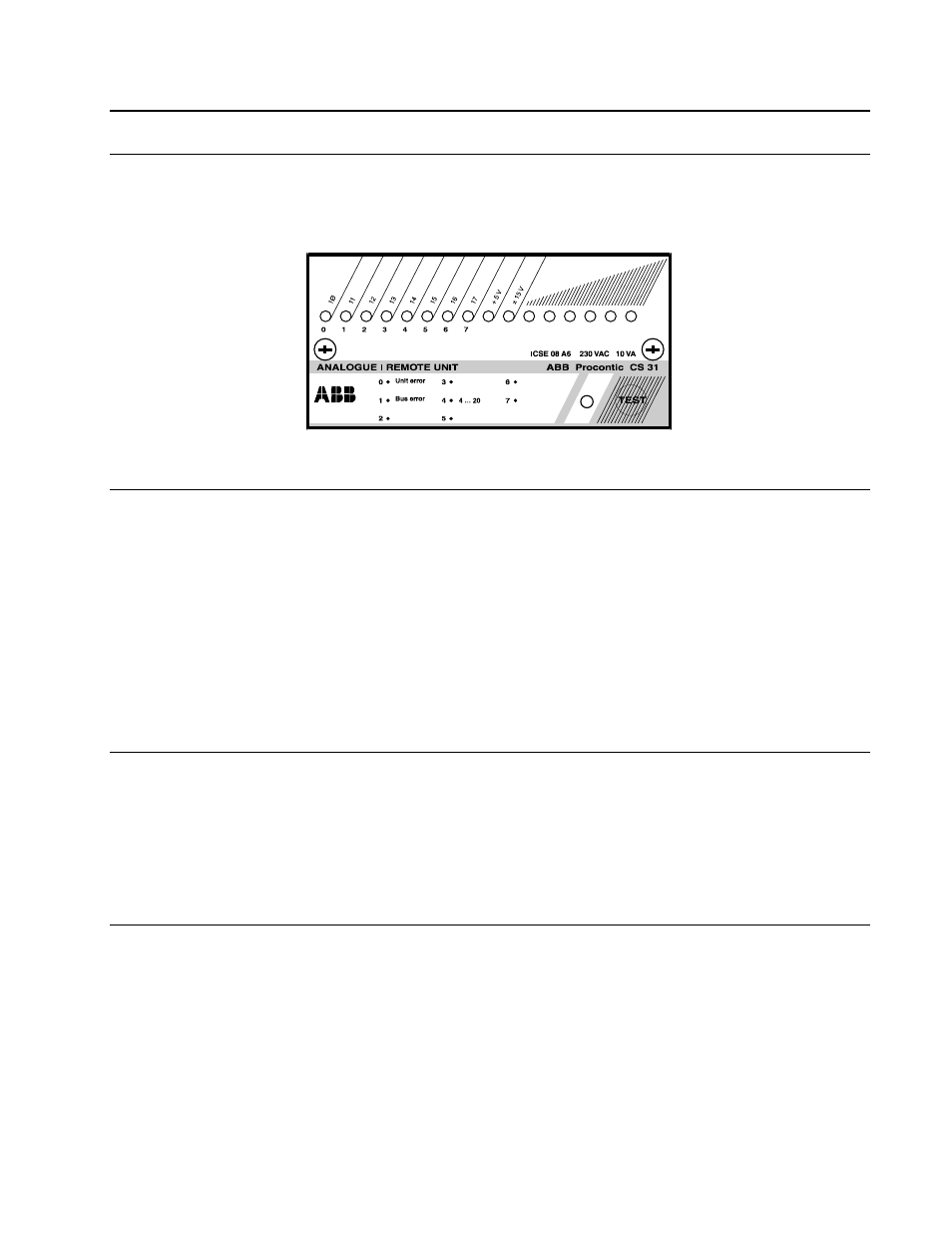

1.3 REMOTE I/O MODULES
The descriptions included in this section give a brief overview of the functions and features of
the remote I/O modules. Modules are available in three forms: 110/120Vac external power,
220/230Vac external power and 24Vdc external power. All modules mount on a ECZ remote
I/O module carrier.
1.3.1 Digital Input Modules
Discrete input modules are available in isolated and non-isolated versions. Isolated versions
provide opto-isolation to 1500VAC. One RDIM block is used to configure a digital input
module in the Application Builder.
Module
Description
ICSI 08 D1 8 non-isolated 24VDC input channels
ICSI 08 E1 8 isolated 24VDC input channels
ICSI 08 E3 8 isolated 120VAC input channels
ICSI 08 E4 8 isolated 230VAC input channels
ICSI 16 D1 16 non-isolated 24VDC input channels
ICSI 16 E1 16 isolated 24VDC input channels
1.3.2 Digital Output Modules
Discrete output modules provide eight relay or transistor outputs. One RDOM block is used
to configure a digital output module in the Application Builder.
Module
Description
ICSO 08 R1 8 relay output channels 2A
ICSO 08 Y1 8 transistor output channels 24VDC 2A
1.3.3 Digital Input/Output Modules
Combination discrete input/output modules have twelve 24V DC inputs and eight 2A relay
outputs, while a configurable version of the combination module allows a total of eight points
to be individually selected as 24VDC inputs or 24VDC (.5A) transistor outputs. A RDIM and
a RDOM block are used to configure a digital input/output module in the Application Builder.
Module
Description
ICSK 20 F1 12 non-isolated 24VDC input channels and 8 isolated relay output channels
ICSC 08 L1 8 user-configurable channels for 24VDC input or 24VDC 500mA transistor
output
3
