Remote I/O Modules
PRODUCT DESCRIPTION
1.2 BASIC HARDWARE
The descriptions included in this section give a brief overview of the functions and features of
the basic hardware used to install remote I/O capabilities.
1.2.1 2020N Remote I/O Interface Module
One Remote I/O Interface Module is required for each Remote I/O Network to be connected
to the host instrument. The RIO module may be placed in any slot on the instrument. One
RIO block is used to configure an RIO module in the Application Builder. Remote I/O
modules are scanned every 50ms.
Catalog Number: 2020NZ10000A
Remote I/O Interface Module (product is serialized)

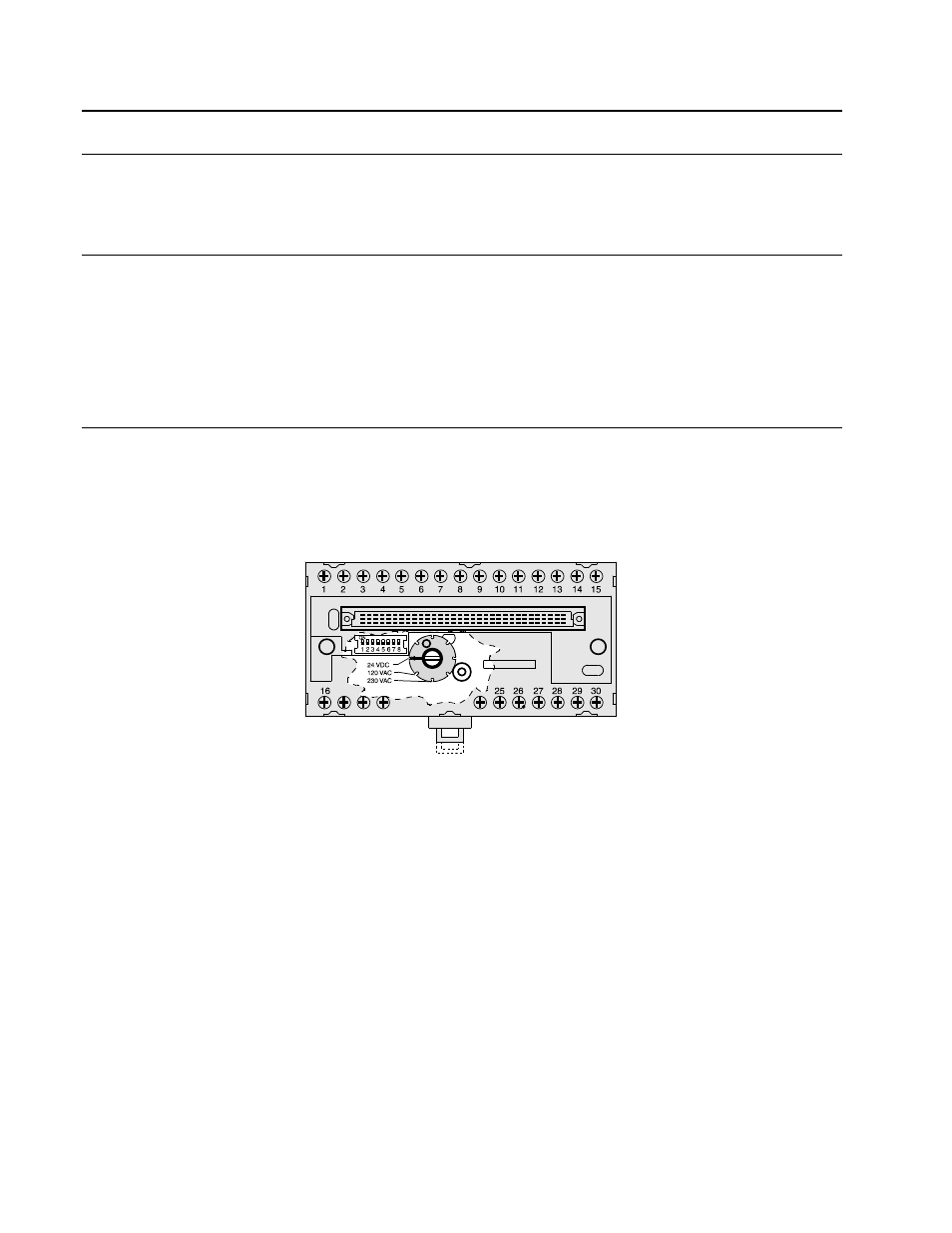

1.2.2 ECZ Remote I/O Module Carrier
Each remote I/O module is mounted on a Module Carrier, plug-in base which contains signal
terminations, address switch and mounting plate. The module carrier can be DIN or surface
mounted. Remote I/O modules provide status and error LEDs, a diagnostic test button, and
are available for 24VDC, 120VAC or 220VAC power supply.
Catalog Number:
ECZ Remote I/O module Carrier (product is not serialized)
2
